DIELECTRIC STRAP WAVEGUIDES, ANTENNAS, AND MICROWAVE DEVICES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 22, 2015
app pub date -
Jun 21, 2013
filing date -
Jun 22, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

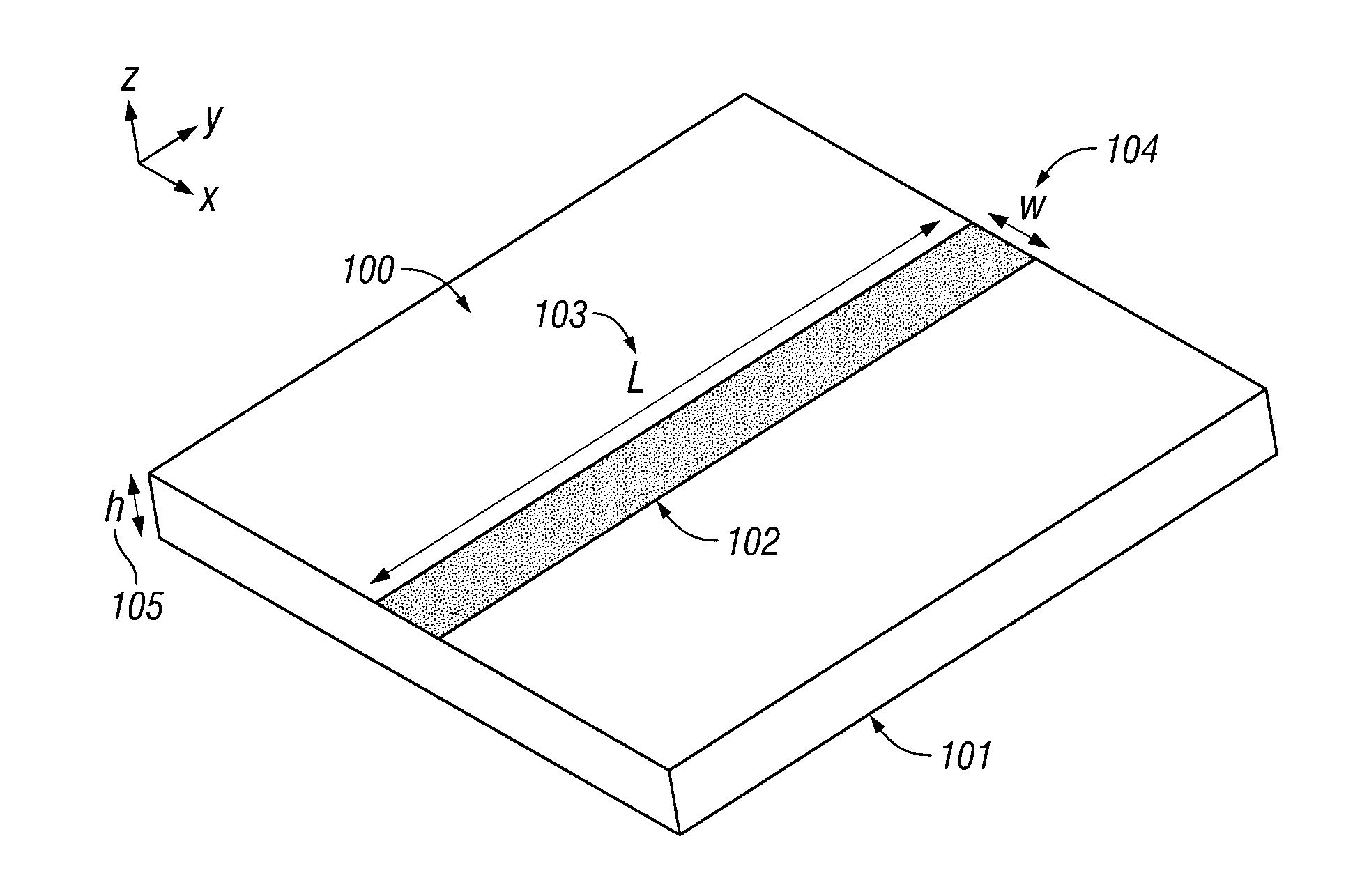

A new class of antennas and microwave components are introduced. In this approach a high-permittivity dielectric film is applied (i.e. printed) on a dielectric substrate, which may be grounded. By changing the shape of the high-permittivity film, different microwave devices (e.g. waveguides, filters, couplers, and antennas) are produced. By changing the size and permittivity of the high-permittivity film and dielectric substrate, these elements are designed at different frequencies for different applications. Highly-efficient microwave devices can result due to the absence of surface currents.
First Claim
Other Claims data not available
