VIBRATION DAMPING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 22, 2015
app pub date -
Oct 14, 2014
filing date -
Apr 18, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

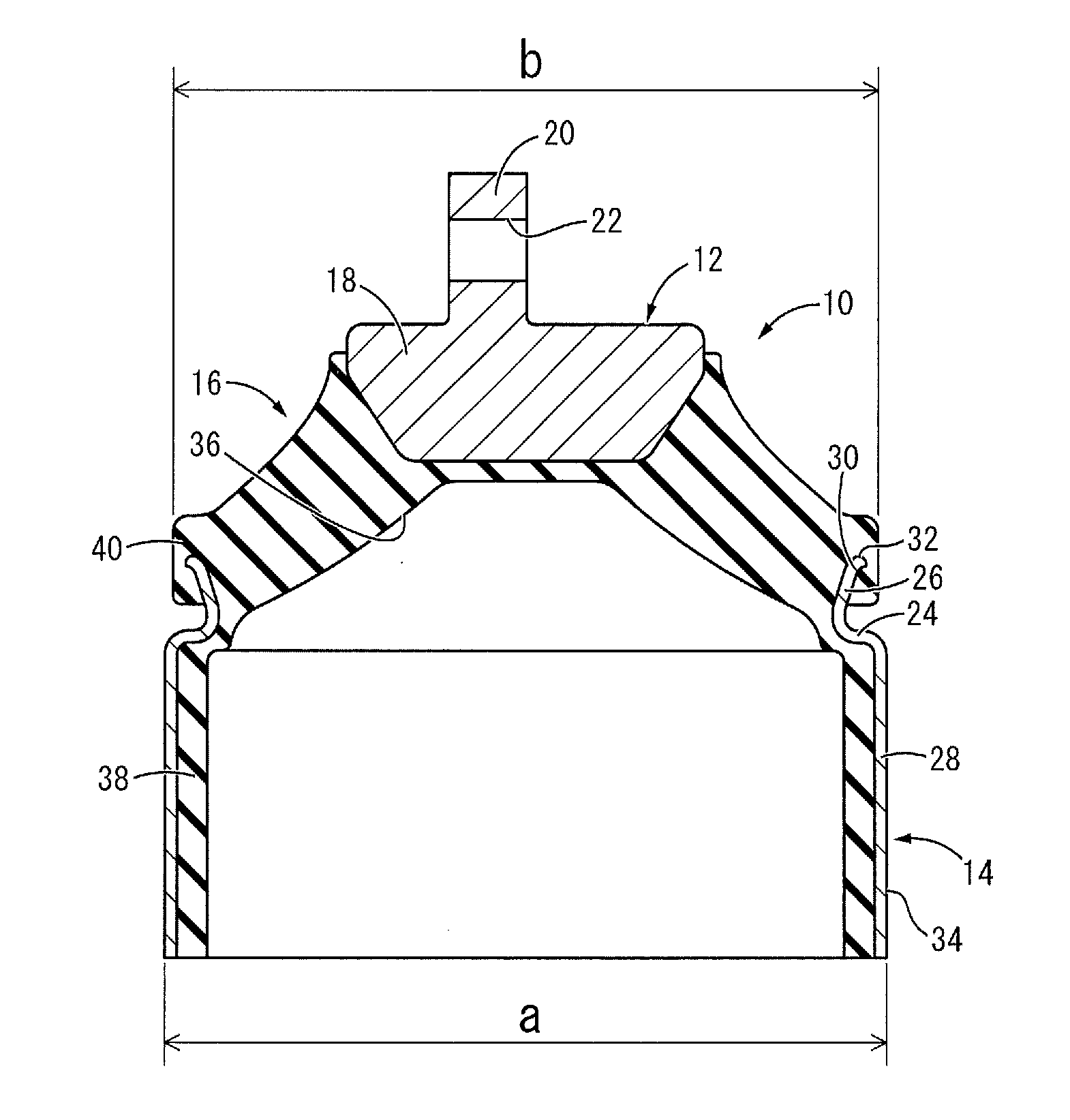

A vibration damping device including a first mounting member and a tube-shaped second mounting member elastically connected by a main rubber elastic body, the second mounting member being configured to be fixed by press fitting to an outer bracket. The second mounting member has a small-diameter fixed part at a first axial side thereof, and the fixed part is fixed in an embedded state to the main rubber elastic body so as to be covered by the main rubber elastic body. The fixed part has a surface shape with a corner made dull at an inner circumference edge part of an axial end part thereof. A press-fitting surface of the second mounting member to be fitted to the outer bracket has a larger diameter than that of the main rubber elastic body which covers the fixed part.
First Claim
Other Claims data not available
