Electromagnetically-actuated direction-sensing roller clutch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Jun 30, 2015
filing date -
Feb 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

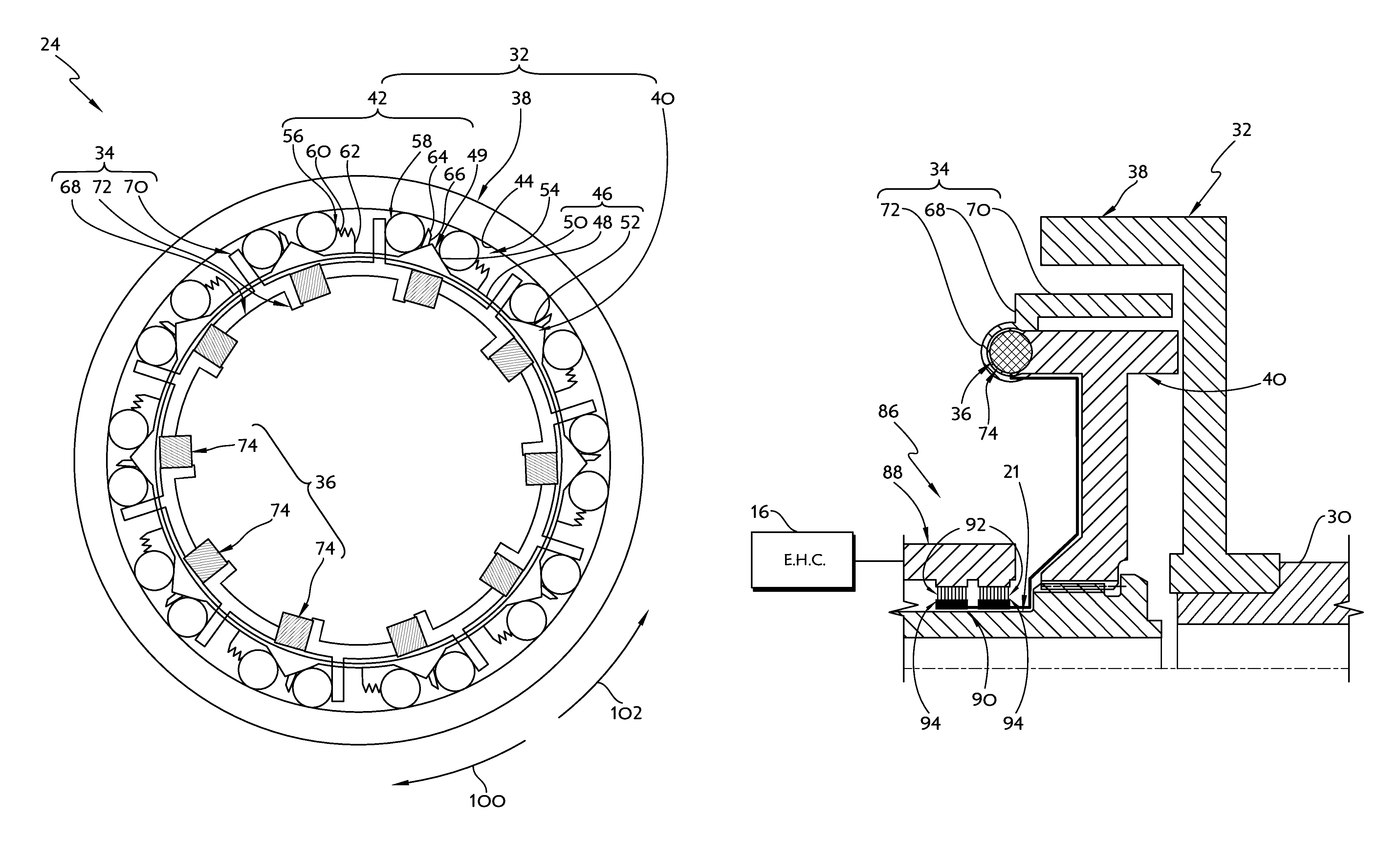

A roller clutch includes an outer race, an inner race, a first engagement member situated between the outer race and the inner race, a second engagement member situated between the outer race and the inner race, and an electromagnetic mover to be energized or de-energized. The first engagement member is configured to engage the outer race and the inner race to transmit torque between the outer race and the inner race in response to the electromagnetic mover being energized and the inner race applying negative torque to the second engagement member while the outer race applies positive torque to the second engagement member. The second engagement member is configured to engage the outer race and the inner race to transmit torque between the outer race and the inner race in response to the inner race applying positive torque to the second engagement member while the outer race applies negative torque to the second engagement member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16D Class
- 1523 Applications Filed
- 1279 Patents Issued To-Date
- 83.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
