Ball launching device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 27, 2016
Grant Date -
Oct 22, 2015
app pub date -
Jun 29, 2015
filing date -
Dec 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

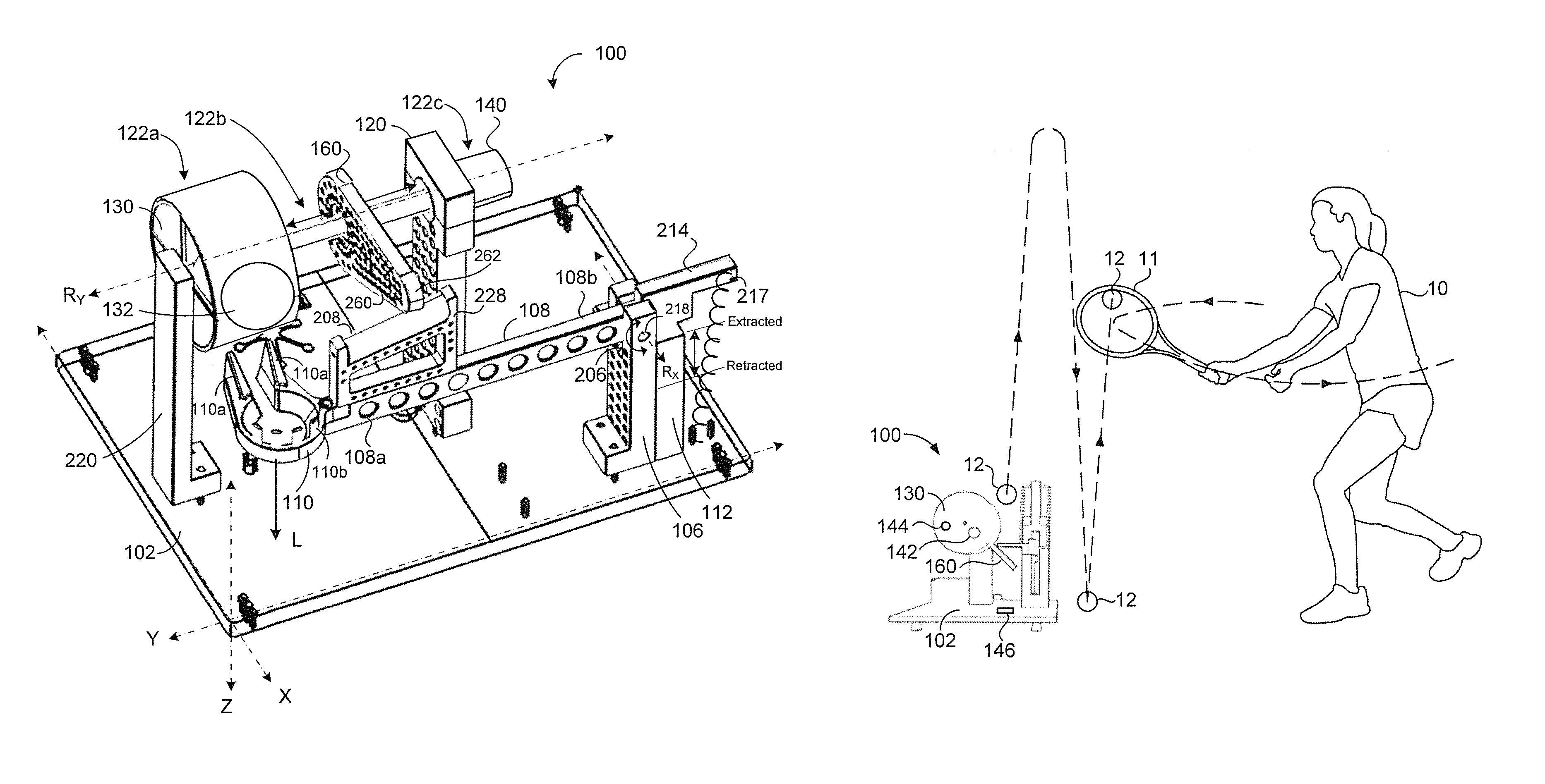

A ball launcher includes a base and a thrower arm defining a ball cradle. An arm holder is disposed on the base and pivotally supports the thrower arm about a first axis of rotation, the thrower arm spring biased about the first axis of rotation. A rotating shaft defines a second axis of rotation substantially parallel to the fore-aft axis. A ball loader is coupled to the rotating shaft for common rotation about the second axis of rotation, the ball loader defining a ball receptacle. A loader arm is releasably connected to the rotating shaft for common rotation about the second axis of rotation. The loader arm defines a longitudinal axis substantially perpendicular to the second axis of rotation of the rotating shaft and has a length extending away from the rotating shaft.
