METHOD FOR CREATING ELECTRICAL CONTACTS AND CONTACTS CREATED IN THIS WAY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 15, 2015
app pub date -
Nov 21, 2013
filing date -
Nov 22, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

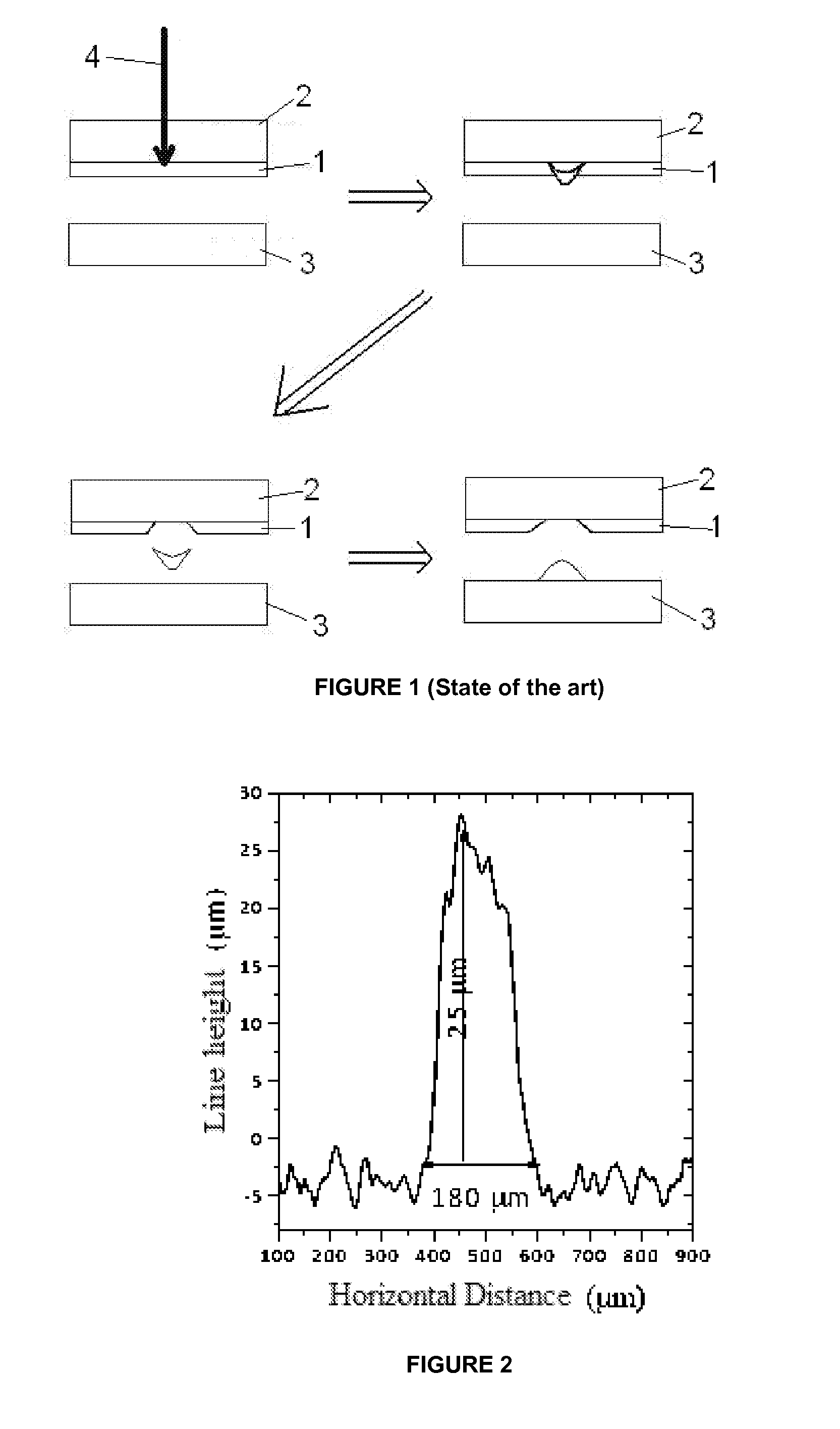

The present invention relates to a method for creating electrical contacts in optoelectronic and electronic devices, including high and low concentration solar cells, thin films, organic light emitting diodes (OLED) and in general any device requiring the extraction or injection of a current by means of electrical contacts. The method comprises the following stages: (a) depositing the contact material on the final substrate through the laser induced forward transfer (LIFT) of said material from a donor substrate to the final substrate, preferably using a pulsed laser and (b) sintering the contact material using a laser source, preferably a continuous laser. The contacts thus created present excellent conductivity and adherence properties, as well as high height (thickness) to width ratios.
