Method of manufacturing multi-layered propellant grains
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 24, 2020
Grant Date -
Oct 8, 2015
app pub date -
Jan 28, 2014
filing date -
Aug 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

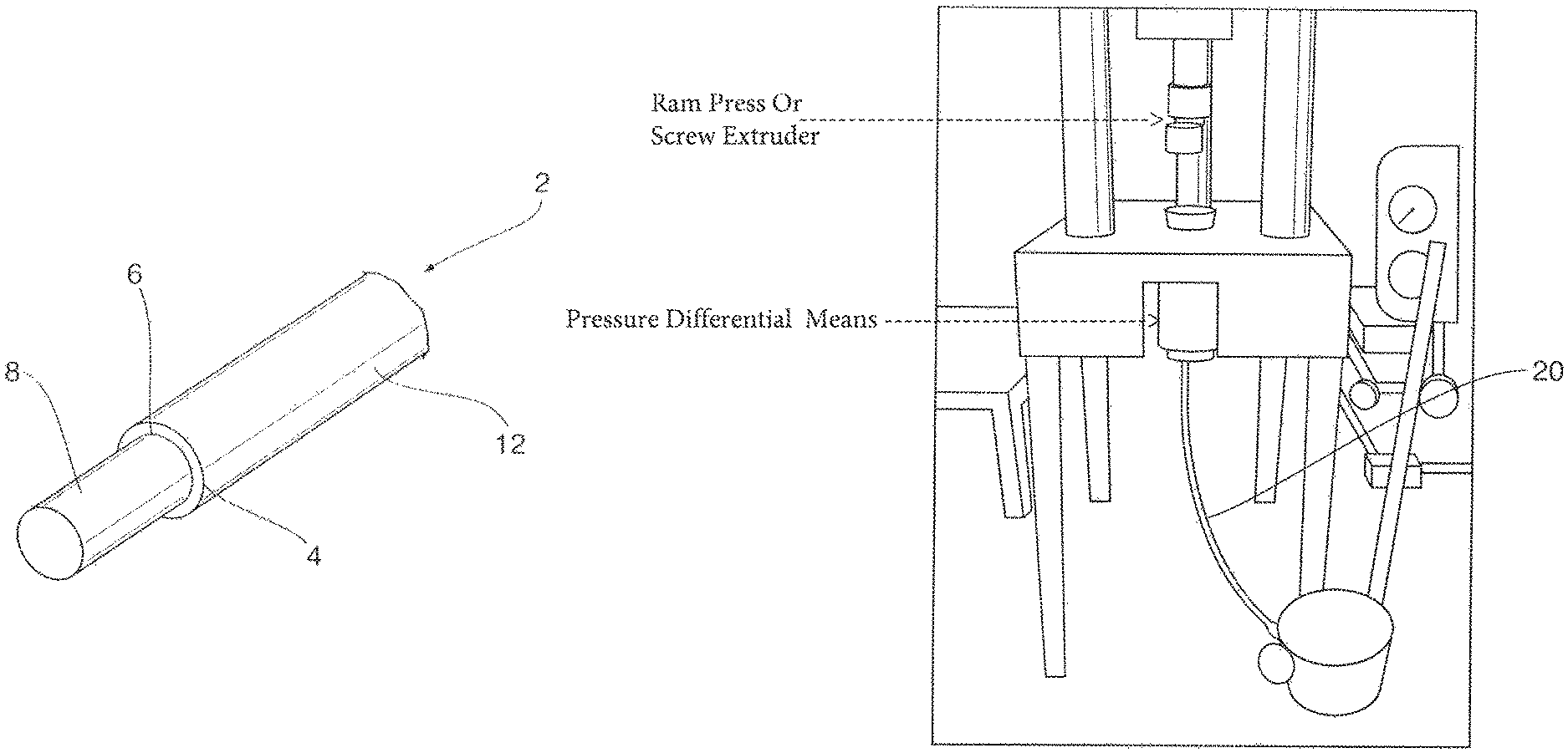

A method of manufacturing a multi-layered propellant grain is provided. The method of the present disclosure simplifies the setup necessary to produce multi-layered propellants by using industrial equipment that is more energy and space efficient than the machinery that is conventionally employed for such processes. The method comprises providing a first propellant formulation; providing a die configured to provide a structure having an outer shell and a hollow interior when material is extruded therethrough; extruding the first propellant formulation through said die, to produce a first propellant layer having an outer shell defining a hollow interior in the form channel having open ends; providing a second propellant formulation, said second propellant formulation being of low viscosity; injecting said second propellant formulation into said channel defined by said first propellant layer to form a second propellant layer disposed in said channel; and hardening said second propellant layer. The first and second propellant layers have different rates of burning.
