Railroad Car for Carrying Motor Vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 8, 2015
app pub date -
Jun 19, 2015
filing date -
Nov 5, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

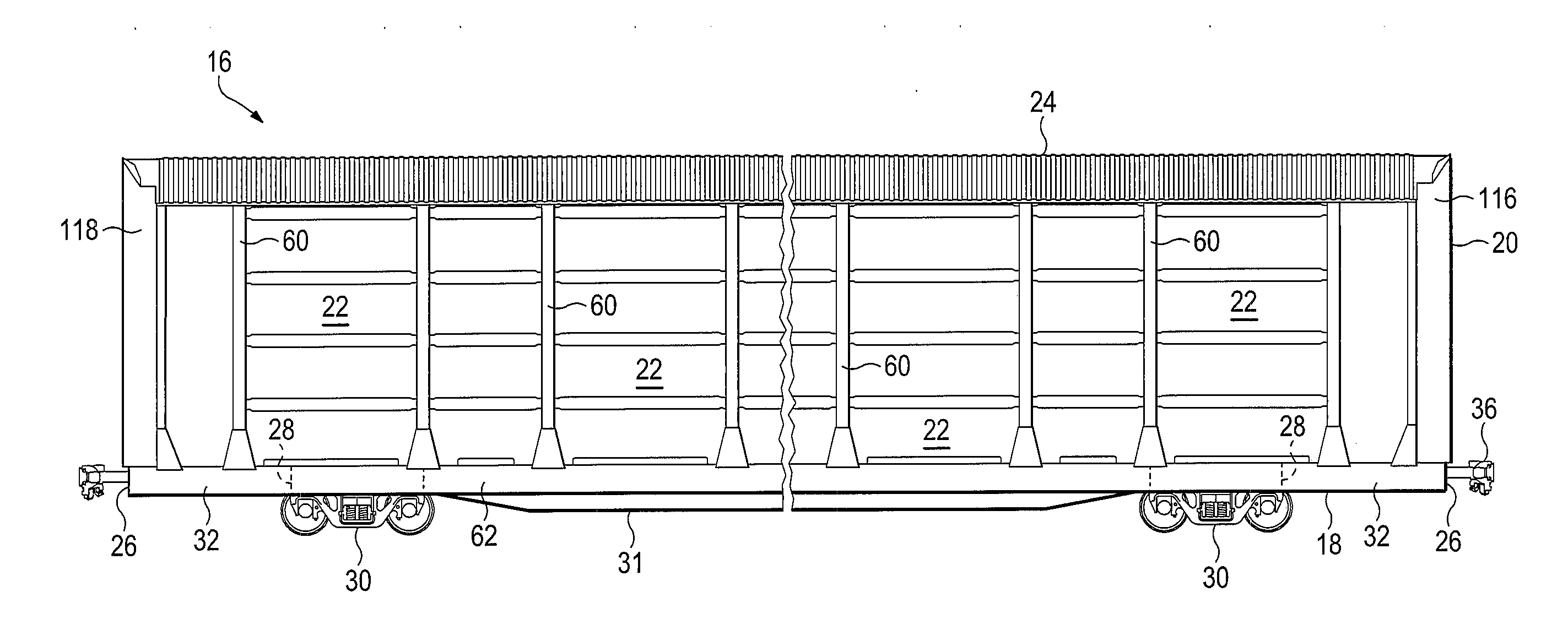

A fully protective railroad freight car for carrying motor vehicles in a selected one of a bi-level or a tri-level configuration, with the lowest level including a depressed longitudinally central portion between body bolsters of the underbody, which may be a low-level flat car. A pair of vehicle-carrying decks are adjustable in height to provide for either one or two vehicle-carrying levels above the lowest level, while also providing at least a prescribed amount of vertical clearance above each vehicle-carrying deck. Ramps may be provided on the lowest level at an end of the car to provide a wheel-supporting surface having a prescribed minimum height. A roof structure is light in weight, and the car has an overall height not exceeding a prescribed limit for operation on most rail lines. The ends of the car are equipped with three-panel folding doors.
First Claim
Other Claims data not available
