METHOD, DEVICE, AND PROGRAM FOR MANAGING A FLASH MEMORY FOR MASS STORAGE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 15, 2013
filing date -
Nov 21, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

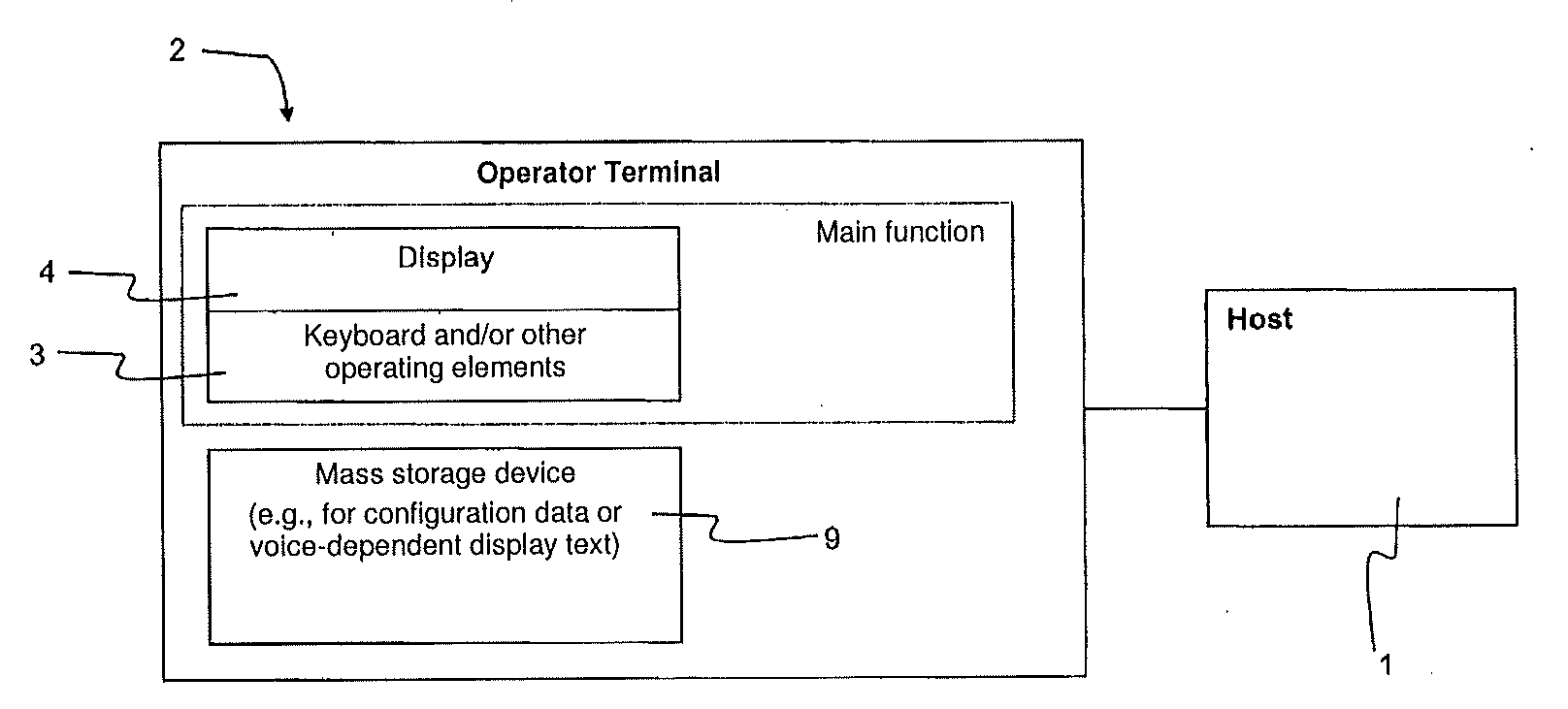

The invention relates to a method for controlling a flash memory (9), which is comprised by a secondary unit of a communications device (2) which can be connected to a host (1) and, for mass storage, is written with data (SS1, SSN, SS1N, SA, BE, S1N, S1ML) to be stored. According to the invention, the flash memory (9) is subdivided into blocks (10) which each comprise storage units (S1-SN), and a storage unit (SS1) that has been written to can only be written to again if, before writing to the storage unit (SS1), all the storage units (S1, S2, SS1, SN) of the block (10) of the storage unit (SS1) to be written to are erased. The flash memory (9) is controlled in such a way that at least some storage units (S1-SN) which are to be written to and the data (SG, SS1N, SAI, BEI, S1MLG) of said units is unchanged after being written to as compared with before being written to are neither erased nor written to, and at least some erased storage units (S, SG, SDG, SMG) which are to be written to and the data (SG) of said units is changed after being written to as compared with before being written to, are written to with the data to be stored (SS1N, BEI, S1NI) without being erased again.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 19 Citation Count
- G06F Class
- 57.68 % this patent is cited more than
- 10 Age
