CAGE VALVE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 1, 2015
app pub date -
Mar 17, 2015
filing date -
Mar 31, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

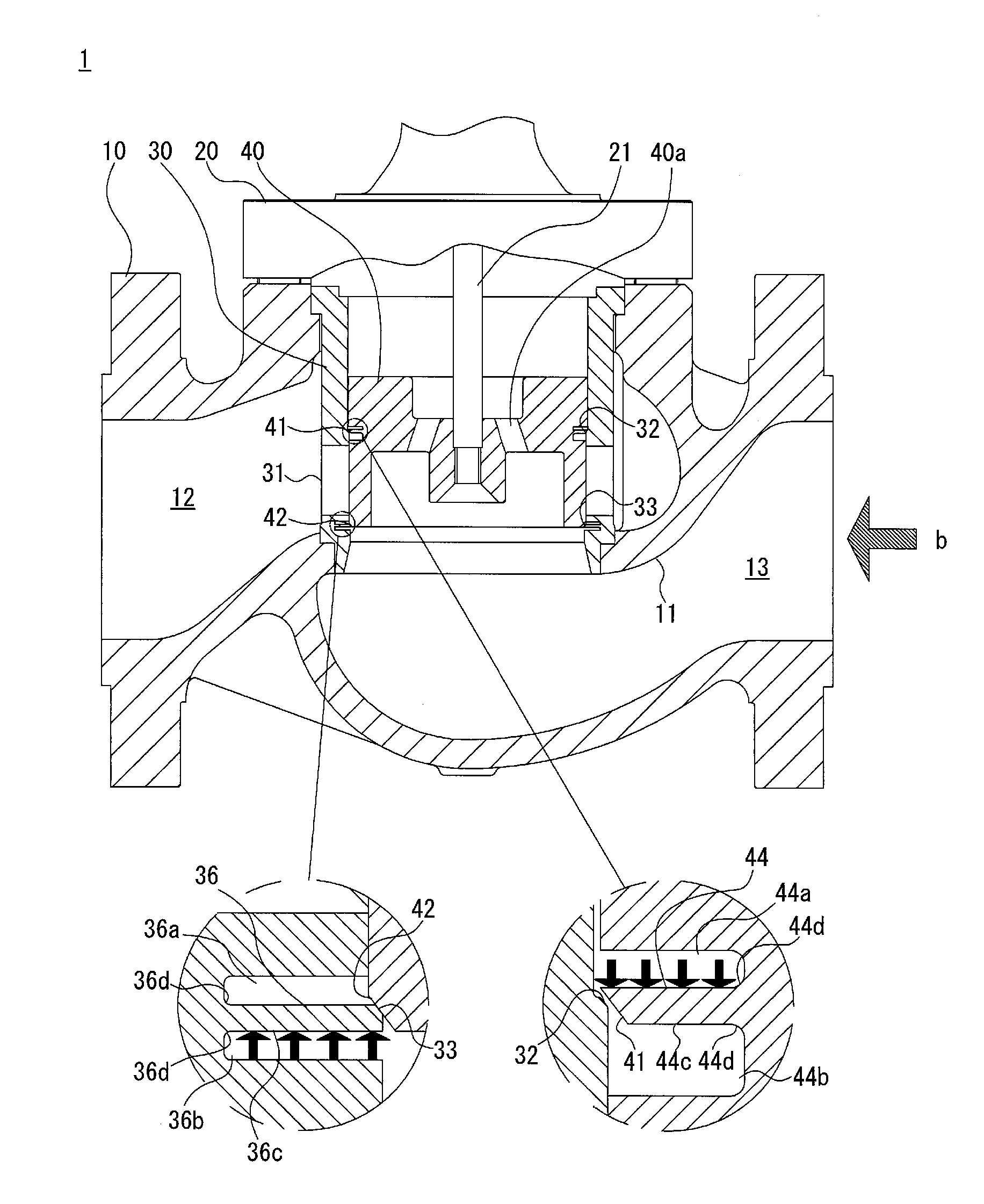

A cage valve includes: a valve body having a fluid inflow path and outflow path; a cylindrical cage, secured within the valve body, having a window connecting to the inflow path and/or the outflow path; a valve plug for opening/closing the window by sliding within the cage along the axial line of the cage; and a self-sealing structure, provided in the cage and/or the valve plug, which improves sealing performance between the cage and the valve plug by bearing pressure of a fluid when the valve plug is in a position wherein the window is fully closed. The self-sealing structure is formed through machining an inner peripheral wall surface of the cage or an outer peripheral wall surface of the valve plug.
First Claim
Other Claims data not available
