Split Ring Having a Self-Regulating Throttle Gap
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 1, 2015
app pub date -
Sep 17, 2013
filing date -
Oct 12, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

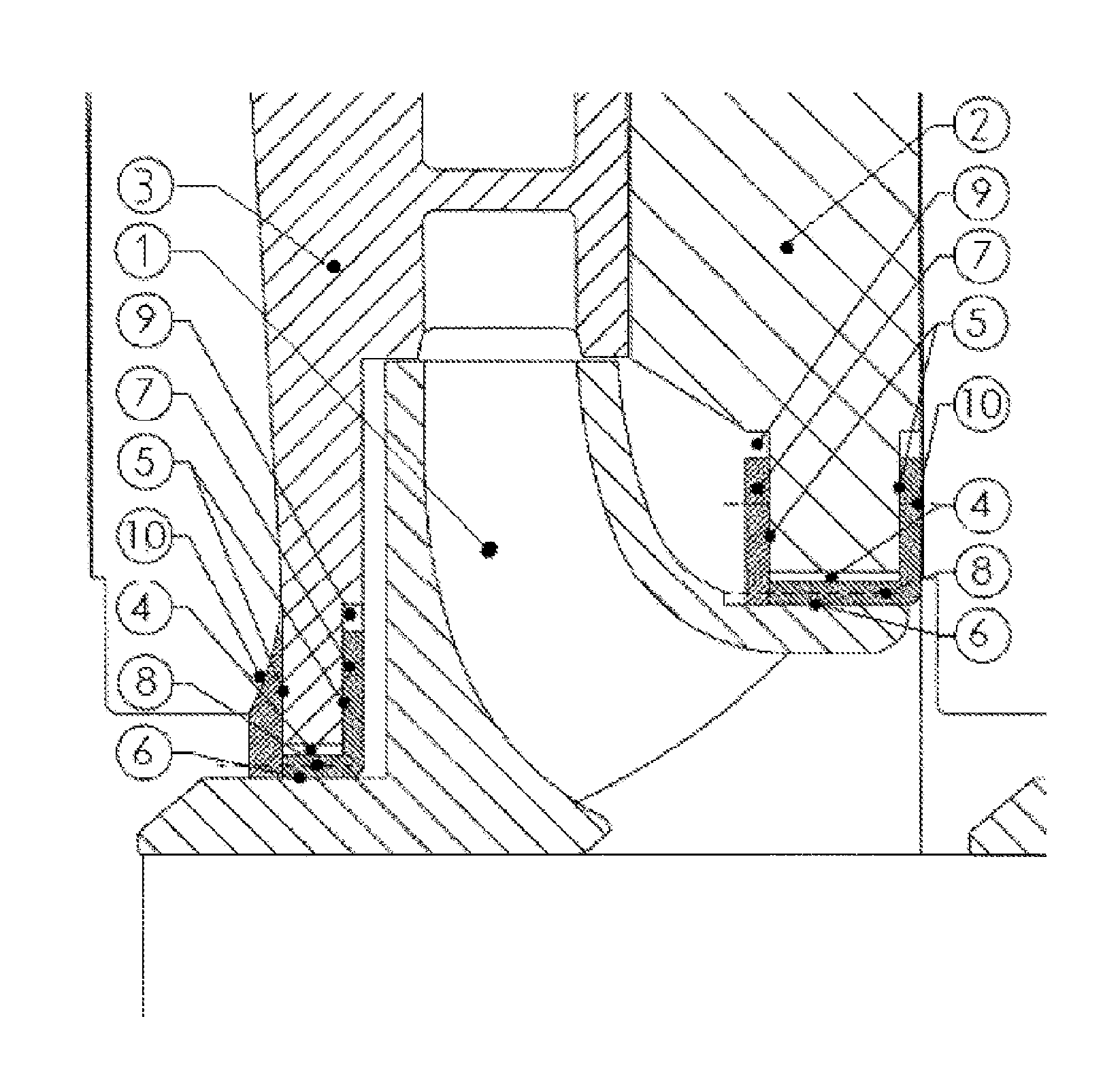

A self-regulating sealing element for a throttle gap between a rotating and a stationary components is provided. The sealing element includes a split ring located in the throttle gap between the rotating component and the housing and preferably configured as a U-shaped element that both axially overlaps a portion of the stationary housing at the throttle gap and provides an annular space between the split ring and the stationary housing. The split ring's axial overlapping regions provide a labyrinth seal effect, while the medium in the annular gap provides a self-regulating damper to accommodate eccentricities between the rotating and stationary components. The split ring may be a bi-metal split ring that is configured such that when at operating temperature the axially-overlapping portions of the ring generally conform to the axial faces of the stationary member portion at the throttle gap to further minimize medium leakage across the split ring.
First Claim
Other Claims data not available
