BLOW-PIPE STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 1, 2015
app pub date -
Sep 10, 2013
filing date -
Sep 20, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

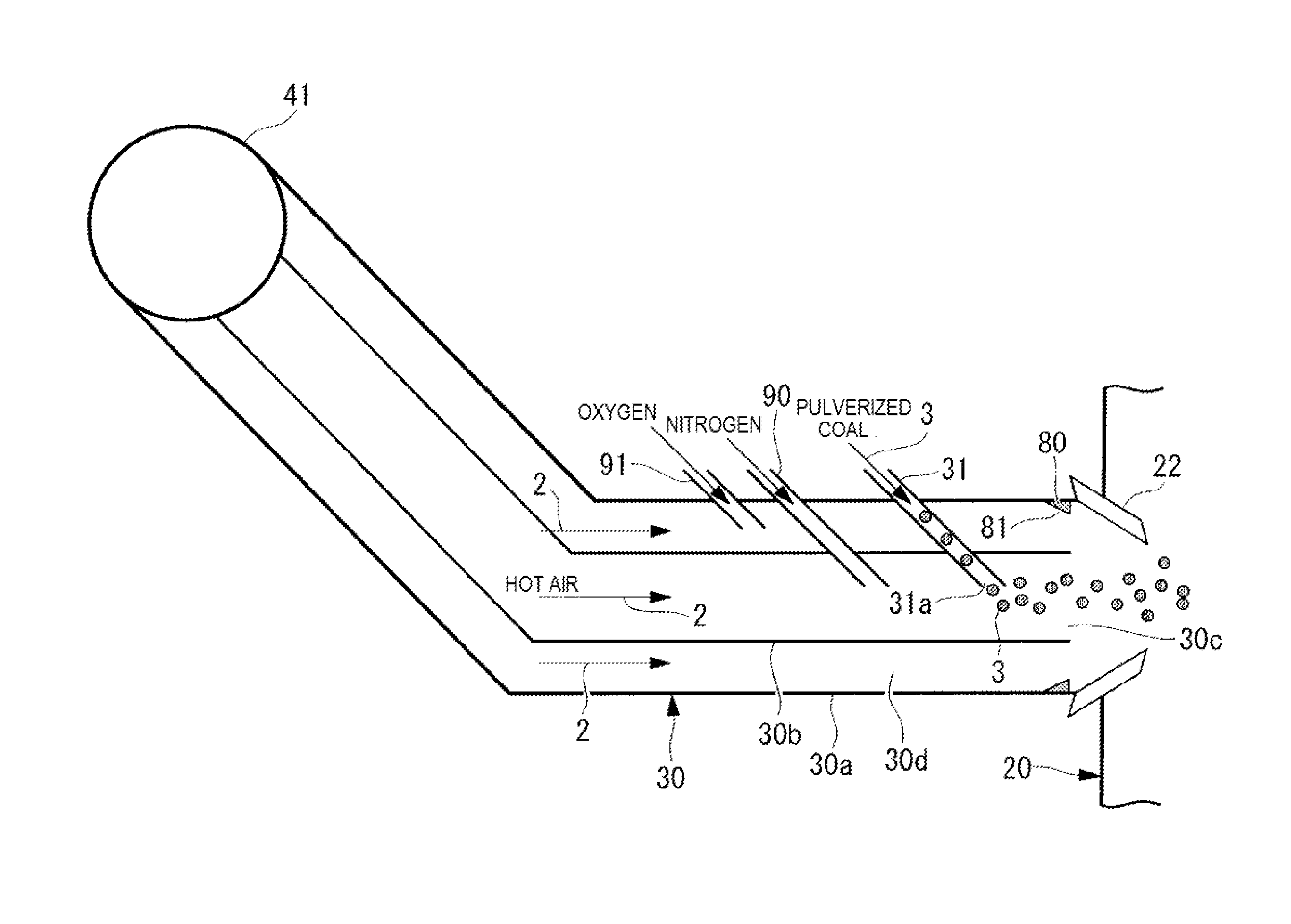

Provided is a blow-pipe structure for a blast furnace facility configured so as to be capable of suppressing slag adhesion by using a simple structure, even if pulverized coal with an unadjusted softening temperature is used. The blow-pipe structure is attached to a tuyere in a blast furnace main body that produces pig iron from iron ore. The blow-pipe structure injects auxiliary fuel pulverized coal together with hot air and slag from the pulverized coal containing a component that is melted by the hot air and/or heat from the combustion of the pulverized coal combustion heat. The blow-pipe structure has an internal/external double pipe structure having an internal pipe that continues from a header pipe that supplies the hot air, to the vicinity of the tuyere and opens, said internal pipe being provided inside an external pipe that continues from the header pipe to the tuyere.
First Claim
Other Claims data not available
