STEERING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 24, 2015
app pub date -
Aug 19, 2014
filing date -
Mar 19, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

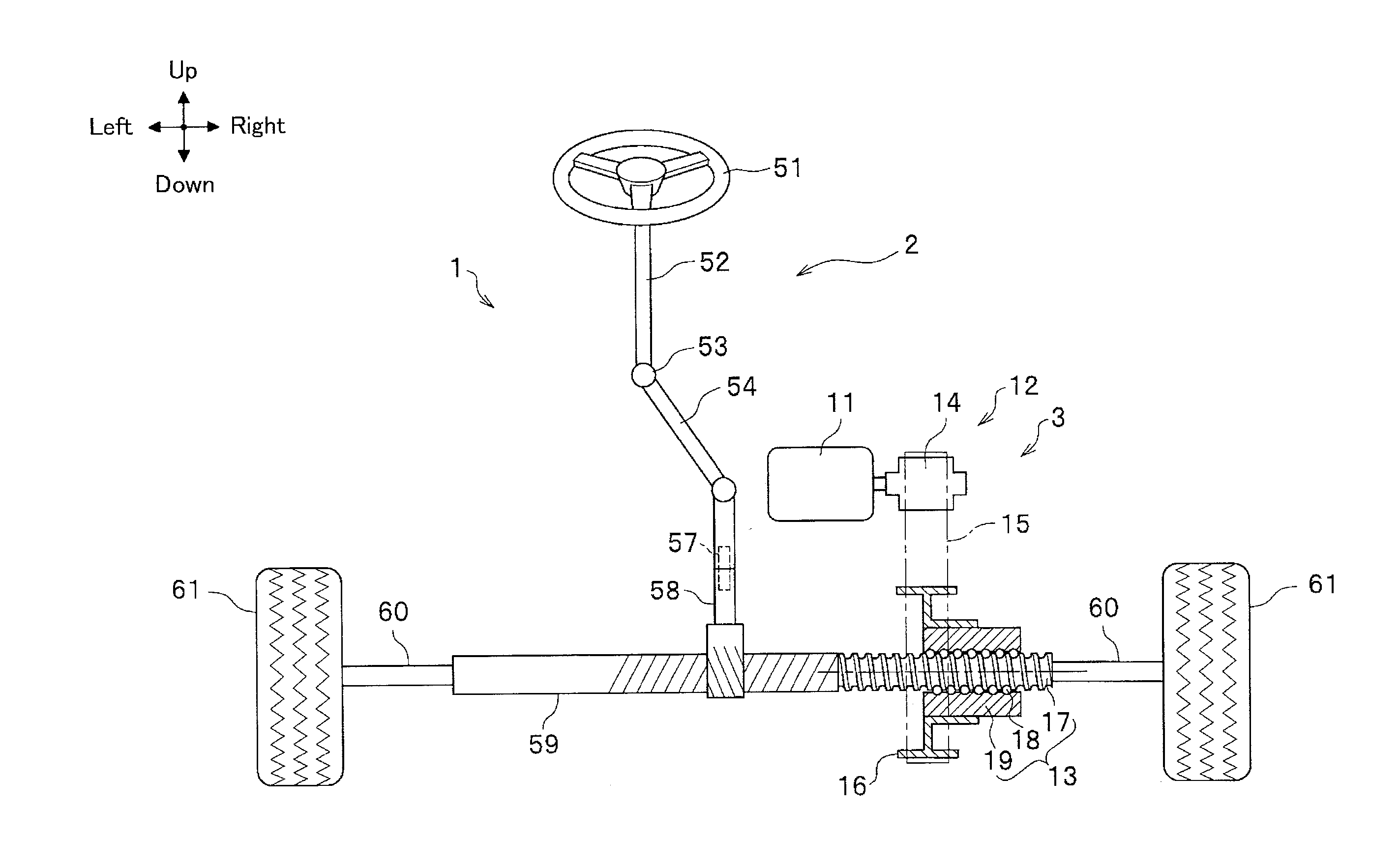

A steering device includes a motor; a steering shaft; a belt transmission mechanism including a drive pulley, a driven pulley, and a belt; a housing that accommodates the belt transmission mechanism; and a pulley holder that holds the motor and is attached to the housing so as to rotatably support the drive pulley. The pulley holder includes a first supporting portion that supports a first shaft portion of the drive pulley and a second supporting portion that supports a second shaft portion of the drive pulley. The steering device further includes a pulley holder supporting portion that supports a portion, of the pulley holder, located closer to the second supporting portion than the center of the pulley portion in relation to the housing.
First Claim
Other Claims data not available
