Post-processing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Grant Date -
Sep 24, 2015
app pub date -
Aug 18, 2014
filing date -
Mar 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

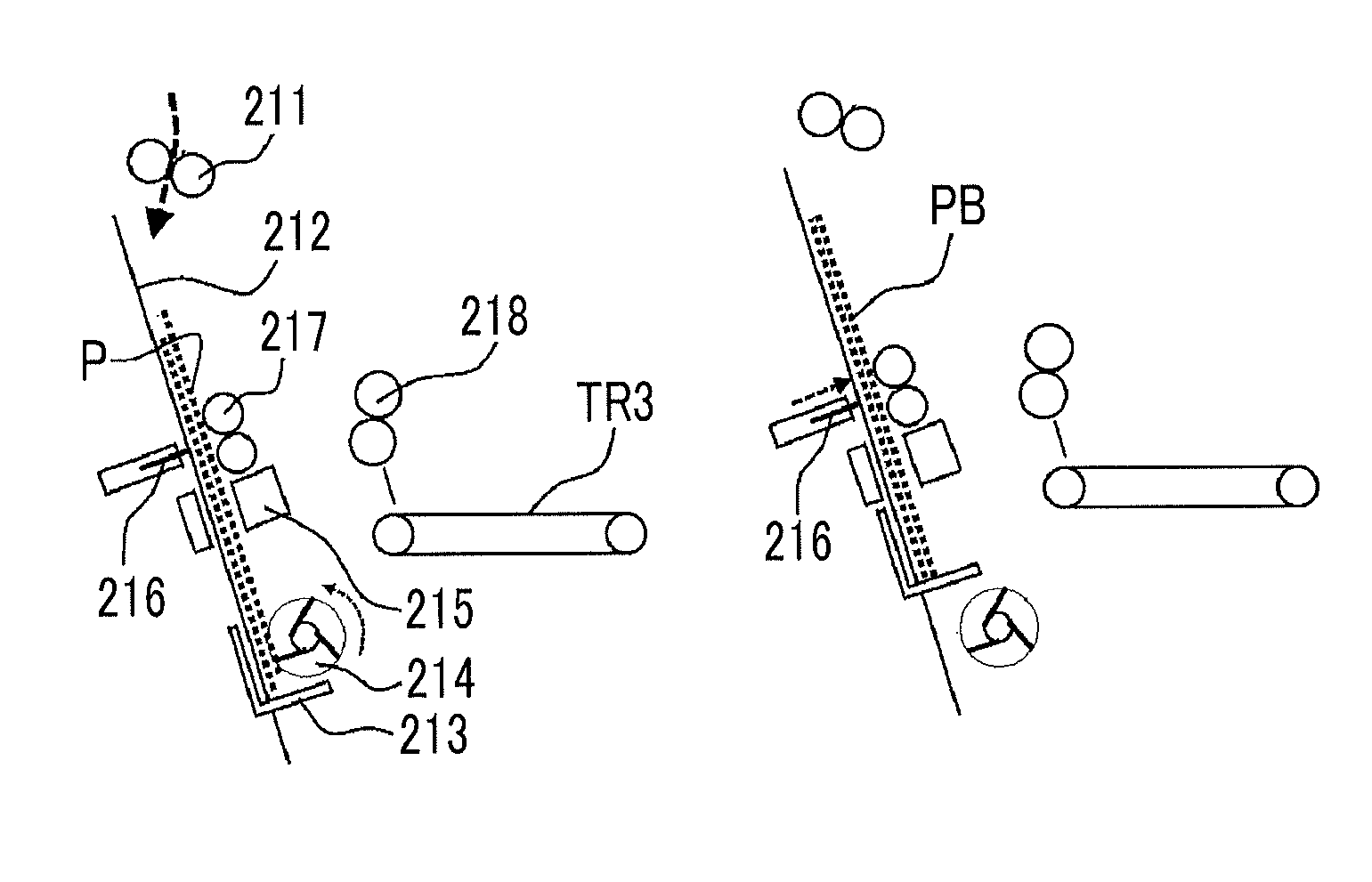

Provided is a post-processing device including a stacking section that aligns and stacks recording materials which are sequentially transported, a saddle stitching section that binds plural sheets of recording materials in central portions of the recording materials, a center folding section that folds the plural sheets of recording materials into two in the central portions, a pressing section that presses a booklet in a thickness direction of the booklet, and a discharge section that discharges the booklet, which is pressed by the pressing section, with a folded portion of the booklet being a leading portion, wherein the booklet is held and stopped in a state of being nipped by the discharge section, and transport is initiated after the lapse of a predetermined stop time so that the booklet is discharged.
First Claim
Other Claims data not available
Family
International Classification(s)
- B41L:APPARATUS OR DEVICES FOR MANIFOLDING, DUPLICATING,....
- B31F:MECHANICAL WORKING OR DEFORMATION OF PAPER OR CARD....
- B65H:HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS....
- B42B:PERMANENTLY ATTACHING TOGETHER SHEETS, QUIRES, OR ....
- G03G:ELECTROGRAPHY; ELECTROPHOTOGRAPHY; MAGNETOGRAPHY
- B42C:BOOKBINDING
- 2014 Application Filing Year
- B41L Class
- 10 Applications Filed
- 9 Patents Issued To-Date
- 90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
