STRETCH FORMING SYSTEM AND STRETCH FORMING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 24, 2015
app pub date -
Oct 9, 2013
filing date -
Oct 16, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

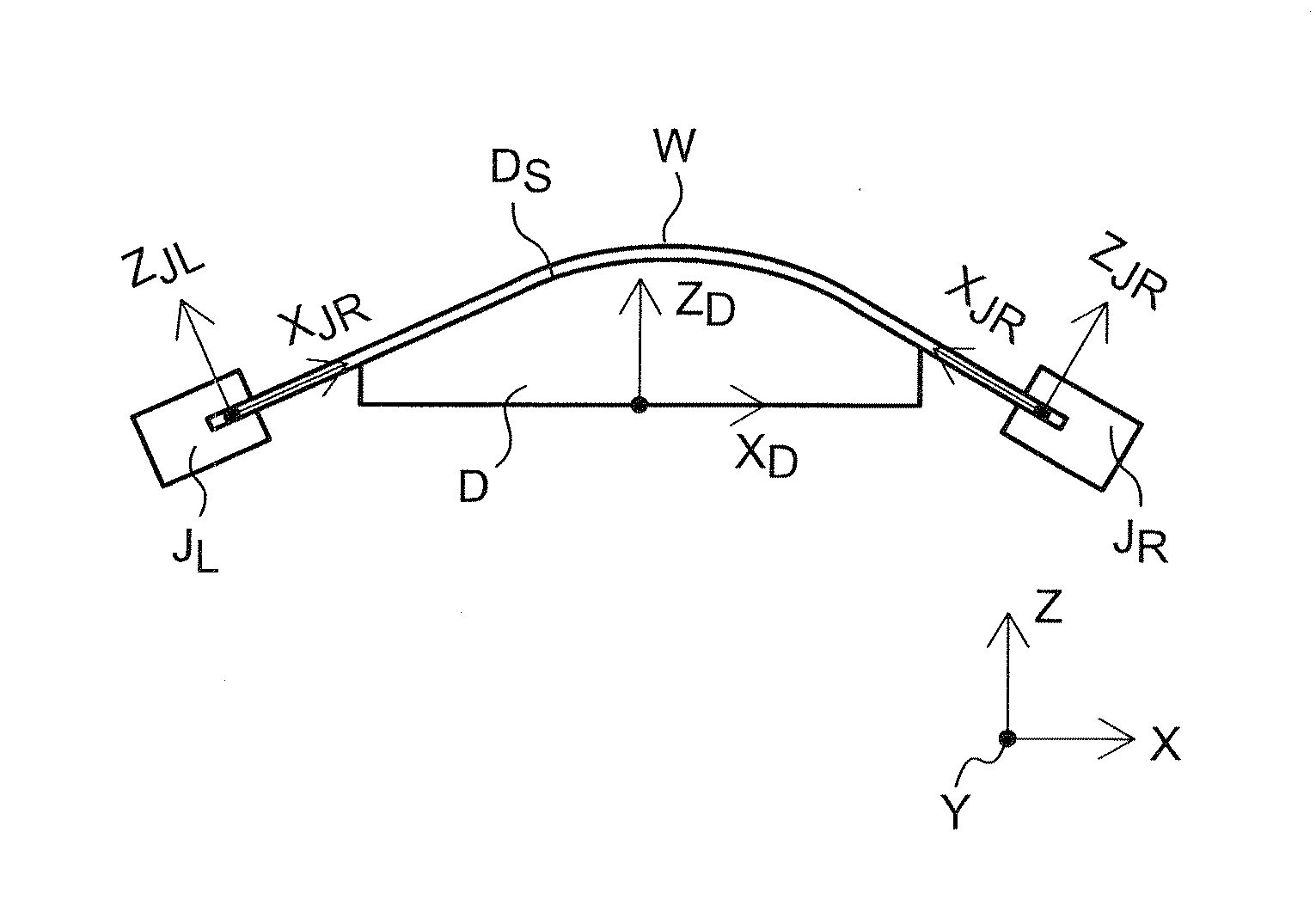

A stretch forming system has jaws clamping a workpiece at end edge portions, a die disposed between the jaws and coming into contact with the workpiece, and a plurality of control axes changing relative positions and orientations of the jaws with respect to the die, and has a jaw path calculating unit calculating paths of the relative positions and orientations of the jaws with respect to the die when the workpiece is wrapped onto the die by moving the die in a vertical direction under a restricting condition that the positions and orientations of the jaws are freely changeable except for movement in a vertical direction being regulated, and a control axis operation pattern calculating unit calculating operation patterns of the plurality of the control axes achieving the paths of the jaws.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5961088 | Oct 16, 2012 |
| EP | A1 | EP2910318 | Oct 09, 2013 |
| WO | A1 | WO2014061530 | Oct 09, 2013 |
International Classification(s)
- 2013 Application Filing Year
- B21D Class
- 696 Applications Filed
- 611 Patents Issued To-Date
- 87.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 10 Age
