Centrifugal separator having an elastic connection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2016
Grant Date -
Sep 24, 2015
app pub date -
Jun 9, 2015
filing date -
Sep 22, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

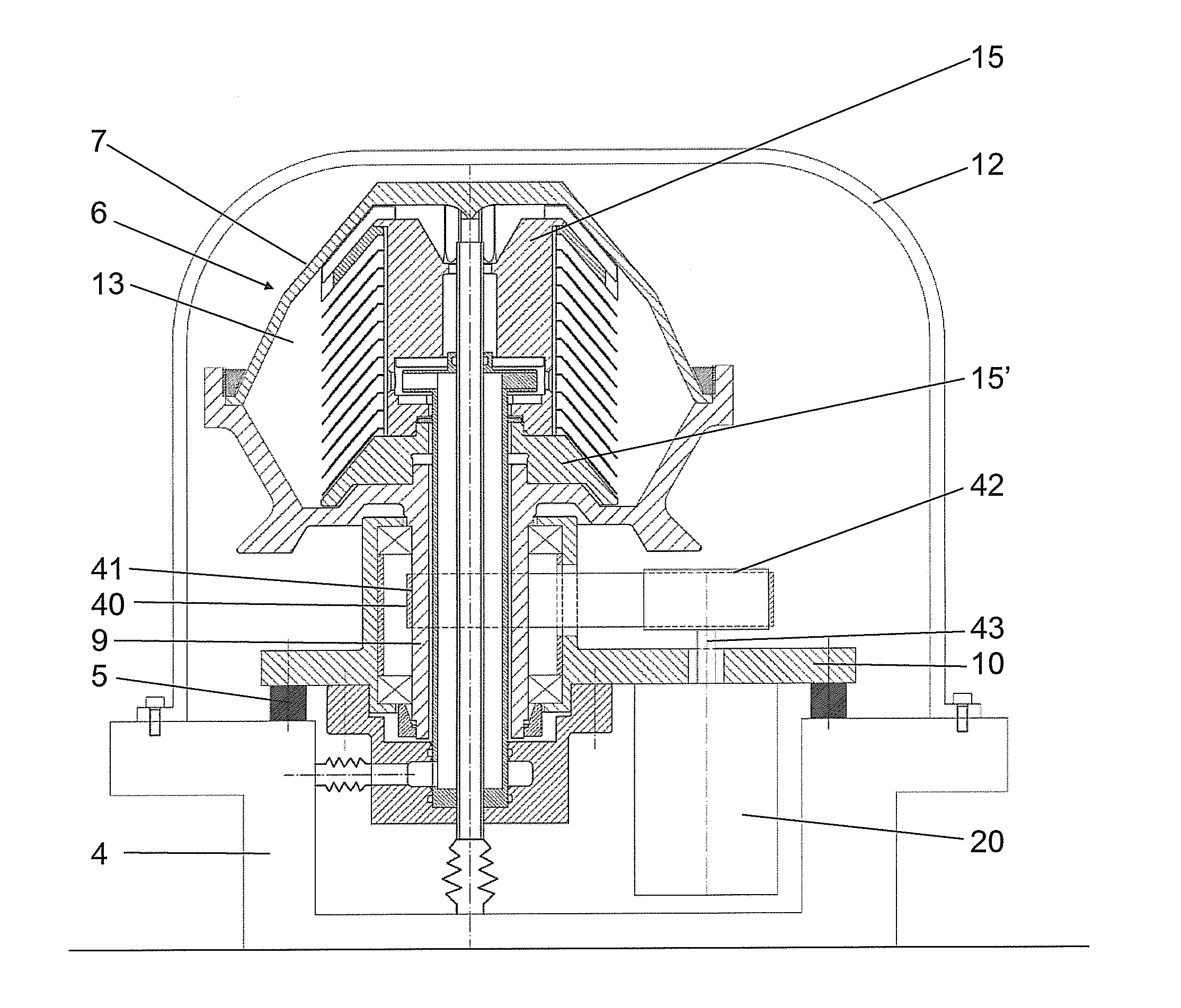

In a centrifugal separator having a stationary part, a non-rotating part, is elastically connected to the stationary part, and a rotating part, rotates around an axis of rotation and includes a centrifuge rotor and a rotating bearing-receiving element. The centrifuge rotor includes a disk package with a plurality of separating disks. The rotating part is journalled in the non-rotating part so that the rotating part and the non-rotating part are commonly pivotable relative to the stationary part. A drive arrangement drives the rotating part about the axis of rotation within a range of revolutions. An inlet channel extends into the inner separation space for feeding of a medium to be separated. An outlet channel extends out from the inner separation space for discharge of a separated product. The bearing-receiving element is tubular. At least one of the inlet channel and the outlet channel extends through the bearing-receiving element.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 16, 2028 |
