Nuclear power generation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Oct 25, 2013
filing date -
Oct 25, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

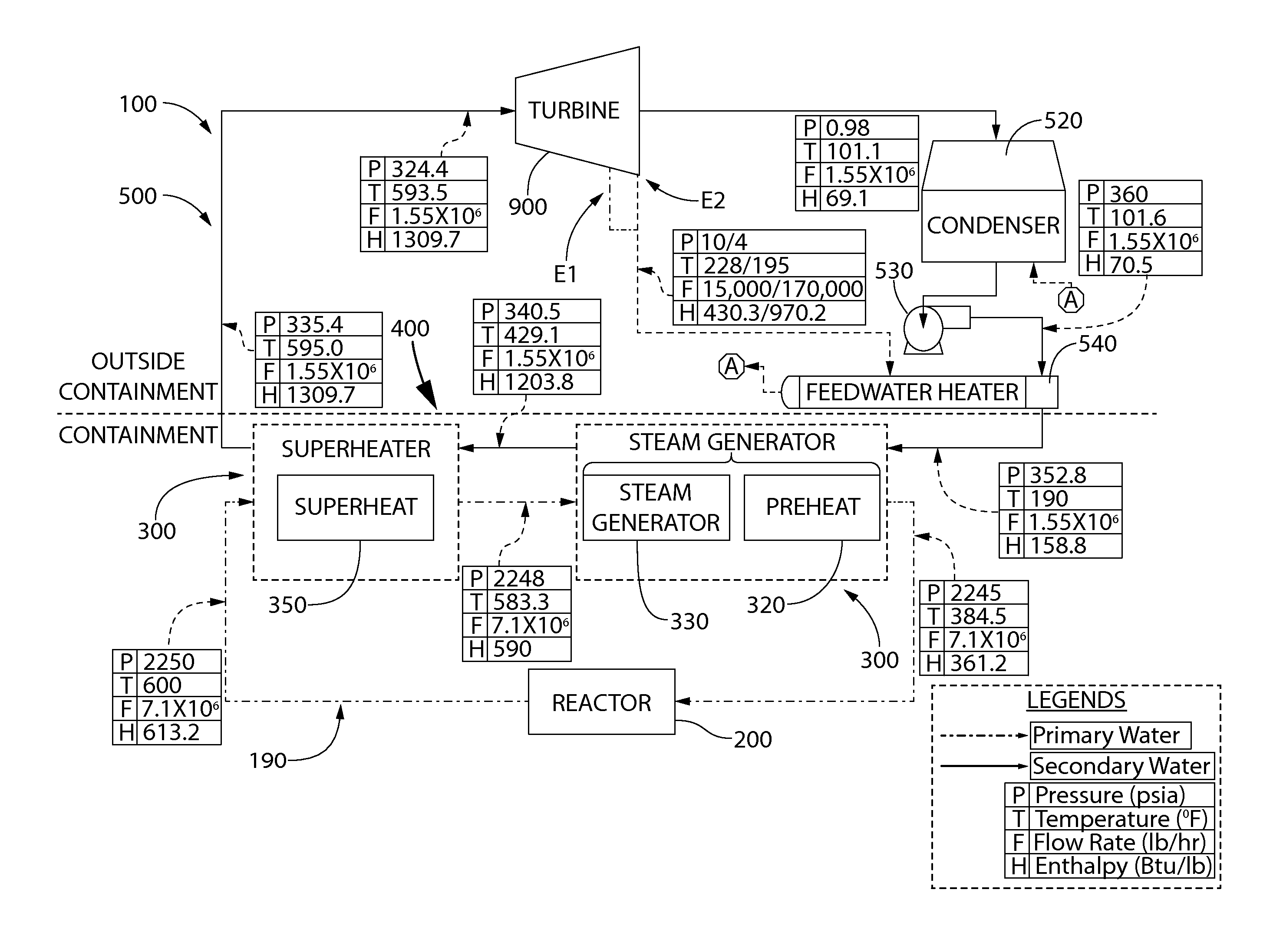

A nuclear power generation system and related power cycle are disclosed, in one embodiment, the system includes primary coolant circulation through a hydraulically interconnected reactor containing nuclear fuel and a steam generating vessel collectively defining a steam supply system. Liquid secondary coolant for the power cycle flows through the steam generating vessel and is converted to steam by the primary coolant to drive a low pressure turbine of a turbine-generator set. Steam exiting the turbine is condensed and heated prior to return to the steam supply system, thereby completing a secondary coolant flow loop. In one embodiment, a majority of the secondary coolant heating occurs within the steam generating vessel via heat exchange with the primary coolant rather than externally in the secondary coolant flow loop. This creates a temperature differential between the primary and secondary coolant sufficient to create natural thermally induced convective circulation of the primary coolant.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G21C Class
- 241 Applications Filed
- 215 Patents Issued To-Date
- 89.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G21C Class
- 51.06 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
