Dressing device and gear grinding device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 10, 2015
app pub date -
Jul 19, 2013
filing date -
Oct 17, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

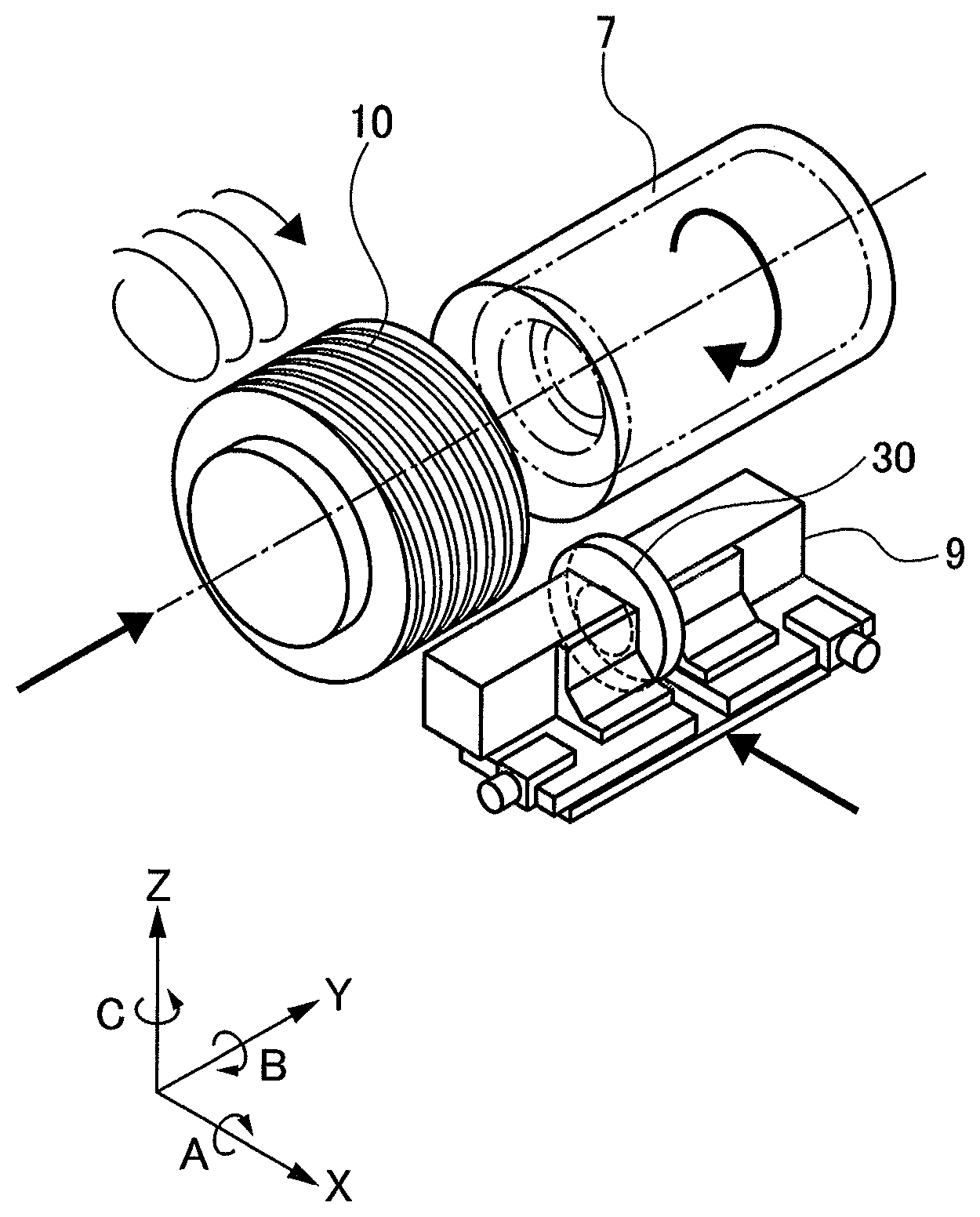

This dressing device has: a gear grinding tool spindle (7) that rotatably supports a screw-shaped grindstone (10); and a dressing tool (30) that dresses the screw-shaped grindstone (10). The dressing device dresses the screw-shaped grindstone (10) by driving the screw-shaped grindstone (10) to rotate, and causing the relative motion of the screw-shaped grindstone (10) and/or the dressing tool (30). The dressing device performs a dressing process on the screw-shaped grindstone (10) in a manner such that the pressure angle changes along the direction of the tooth line by means of moving the screw-shaped whetstone (10) and/or dressing tool (30) at a fixed speed and altering the speed of rotation of the screw-shaped grindstone (10), or rotating the screw-shaped grindstone (10) at a fixed speed and altering the speed of motion in the axial direction of the screw-shaped grindstone (10) and/or the dressing tool (30).
