VOLUME REFLECTOR STATUS INDICATOR FOR ANESTHESIA SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 12, 2013
filing date -
Sep 12, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

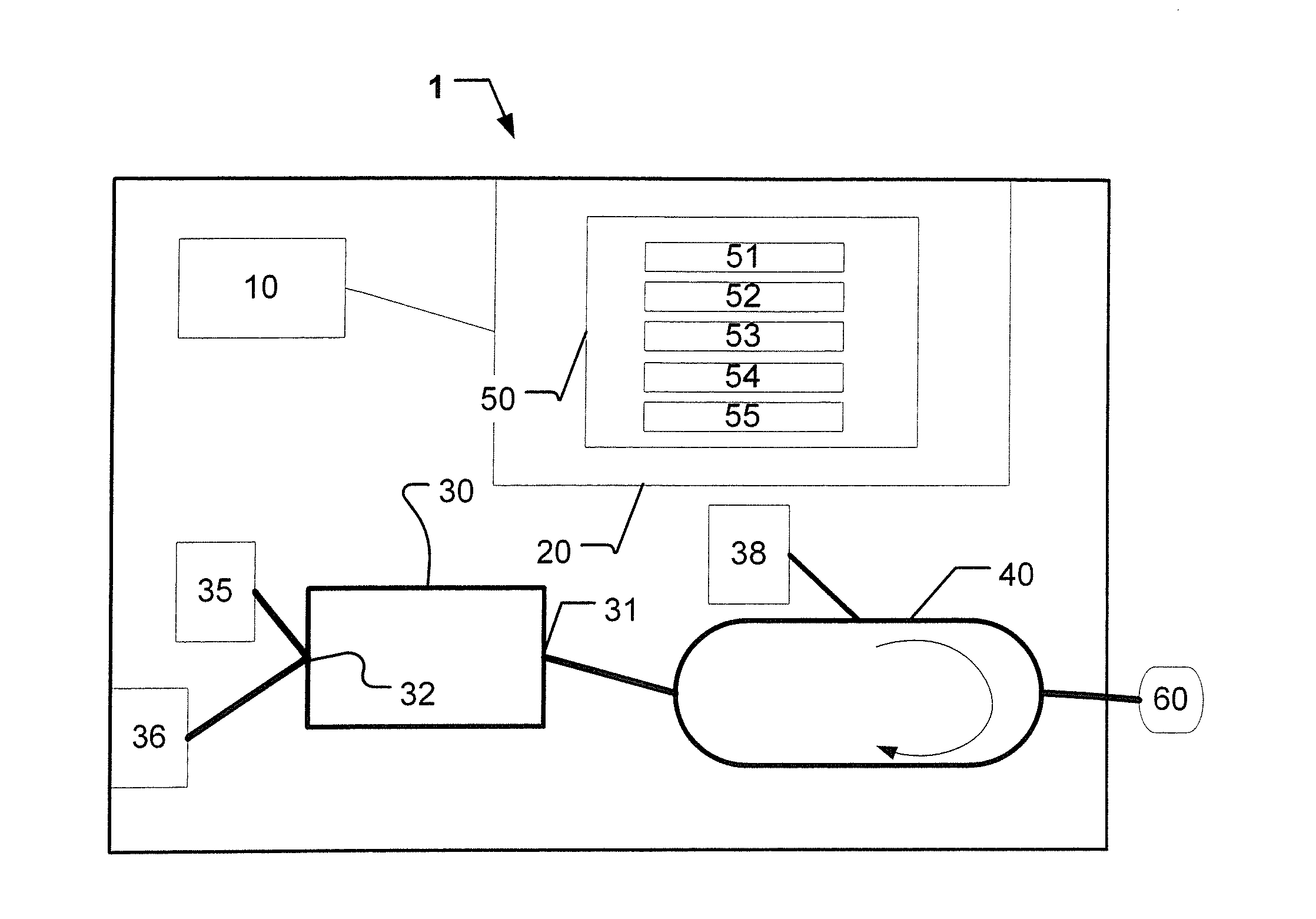

A Volume Reflector indicator for an anesthesia system is disclosed. The anesthesia system includes a volume reflector (30), a breathing circuit (40), a processing unit (10), and a display (20) operatively connected to said processing unit (10), wherein said processing unit (10) is configured to provide a status indicator (50) on said display (20) for gas in said volume reflector (30), said status indicator (50) including a graphical representation of (51) an extent of a driving gas of said volume reflector (30) and/or a patient gas in said volume reflector (30), and/or (52) a flow of gas and a direction of said flow in said volume reflector (30), and/or (53) a waste gas flow out of said volume reflector (30) relative a fresh gas flow in said system (1), and/or (54) a re-breathing fraction (RBF), and/or (55) a balance between said fresh gas flow and patient uptake and/or leakage of gas from said breathing circuit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- A61M Class
- 8.77 % this patent is cited more than
- 10 Age
