DEVICE FOR CHANGING A FLOWPATH, AND A COLLECTION AND CONVEYING SYSTEM FOR MATERIAL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 3, 2015
app pub date -
Sep 4, 2013
filing date -
Sep 26, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

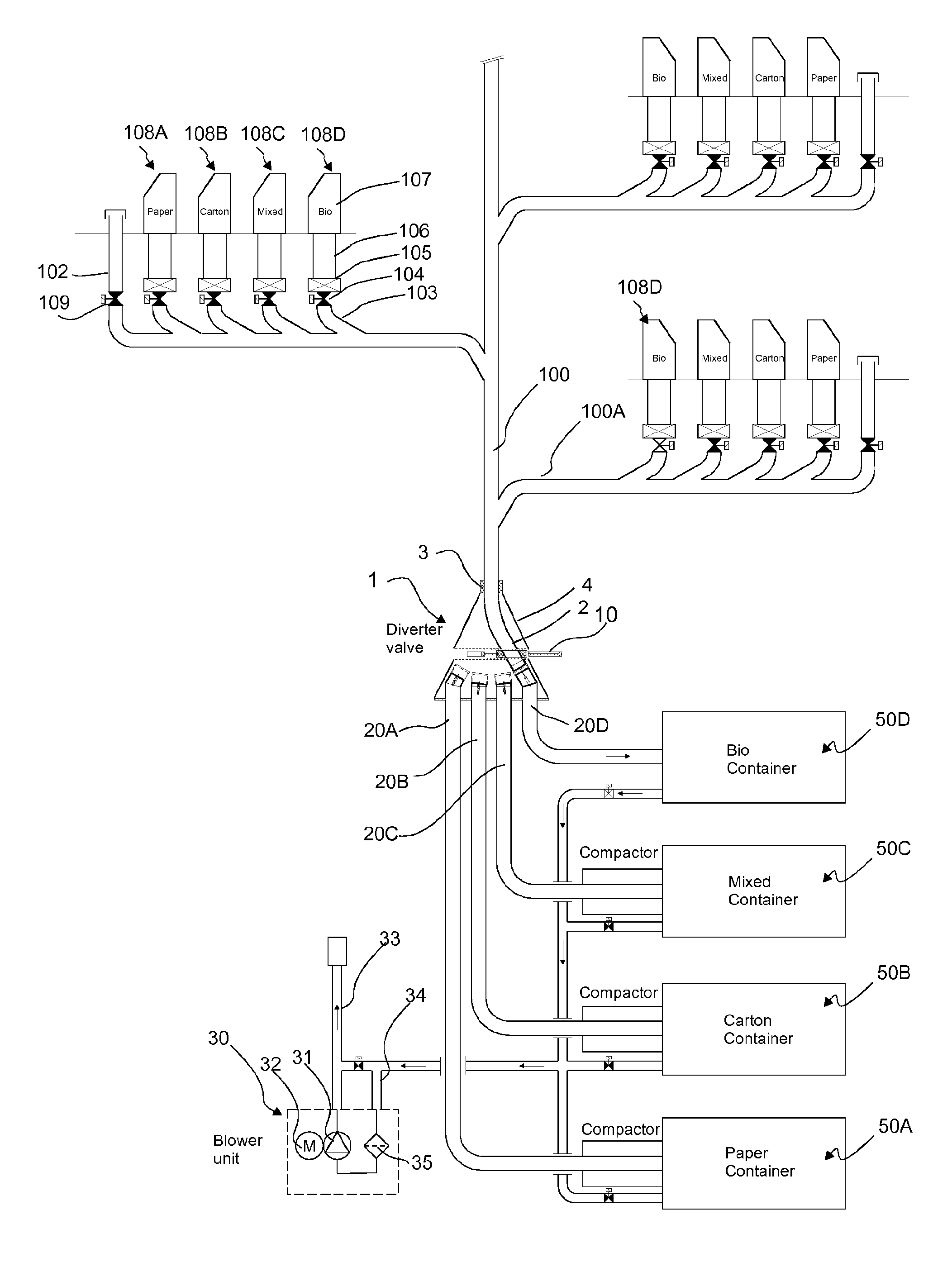

Device and a system for changing a flow path. The device is connected one first pipeline and at least two other pipelines, such as a second pipeline and a third pipeline. A member is provided for changing the pathway of the medium between the one first pipeline and any of at least two other pipelines. The first pipeline is arranged to be bendable at least at the point of its free end formed to be moveable, or in the proximity of said point. The member for changing the pathway of the medium includes a member for moving the free end of the first pipeline, and a coupler for coupling and uncoupling the free end of the first pipeline with at least one other pipeline.
First Claim
Other Claims data not available
