Robot with packing head and integrated vacuum arm
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Mar 3, 2015
filing date -
Mar 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

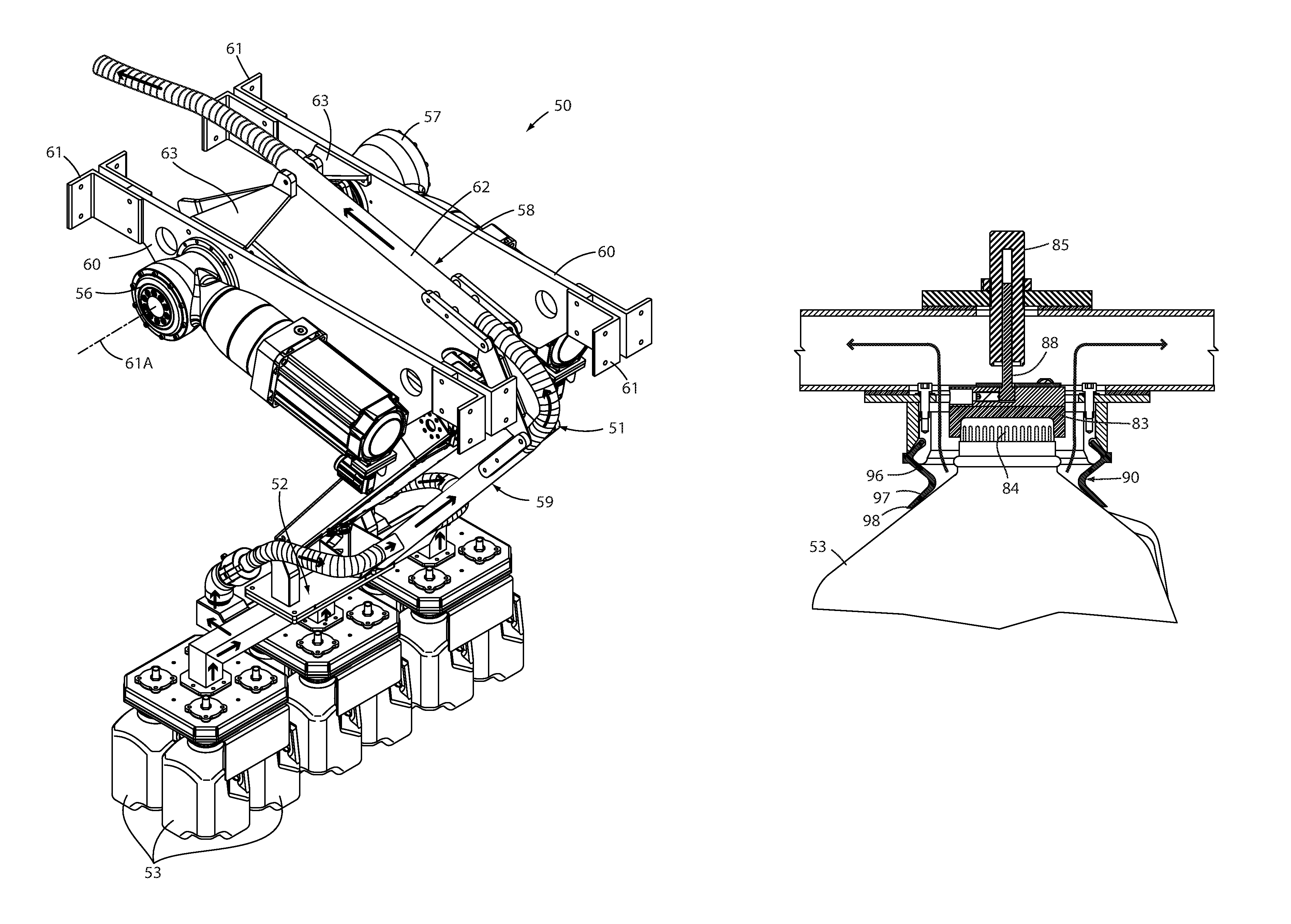

A robotic material handling apparatus comprises a packing head using vacuum to lift bottles, and a robot arm including two four-bar linkages. The four-bar linkages include a tubular structural member forming a rigid link with an internal passageway extending along the robot arm. A vacuum source is connected by hoses to the internal passageways and to the packing head as a way in integrating the vacuum lines into the robot arm. The packing head has bottle-lifting stations using vacuum to lift bottles, each including a seal shaped to sealingly engage a shoulder on the bottle. A vacuum source is connected to the seal for suctionally gripping the bottle using the shoulder to lift the bottle, regardless of whether a bottle cap is present or is missing.
