Carbon fiber heating element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
Mar 3, 2014
filing date -
Apr 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

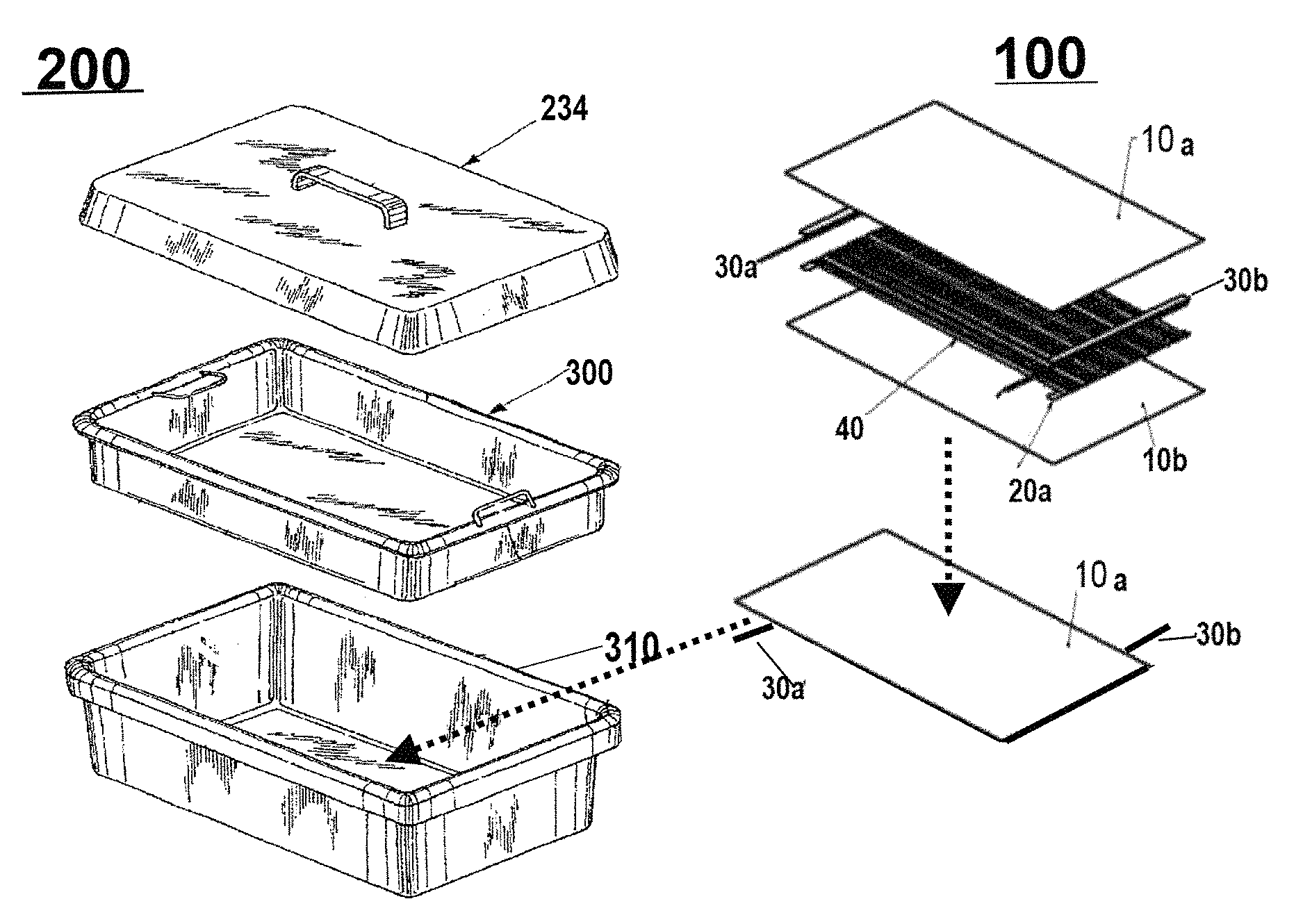

This invention relates to a heating element that includes a carbon fiber tow having carbon threads enclosed between semi-rigid laminates, wherein each thread has an electrical resistance in the range of less than 0.25 to 0.50 ohm per centimeter, and wherein the threads are connected in electrical parallel and terminated into a copper braid, whereupon the application of a voltage generates heat for use in a wide range of appliances including a portable food warmer having a chafing pan and wherein the heating element is electrically connected to a power source controllable through one or more sensors for measuring the temperature of the chafing pan interior.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
