ELECTRICAL CONNECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 27, 2015
app pub date -
Jun 13, 2014
filing date -
Feb 27, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

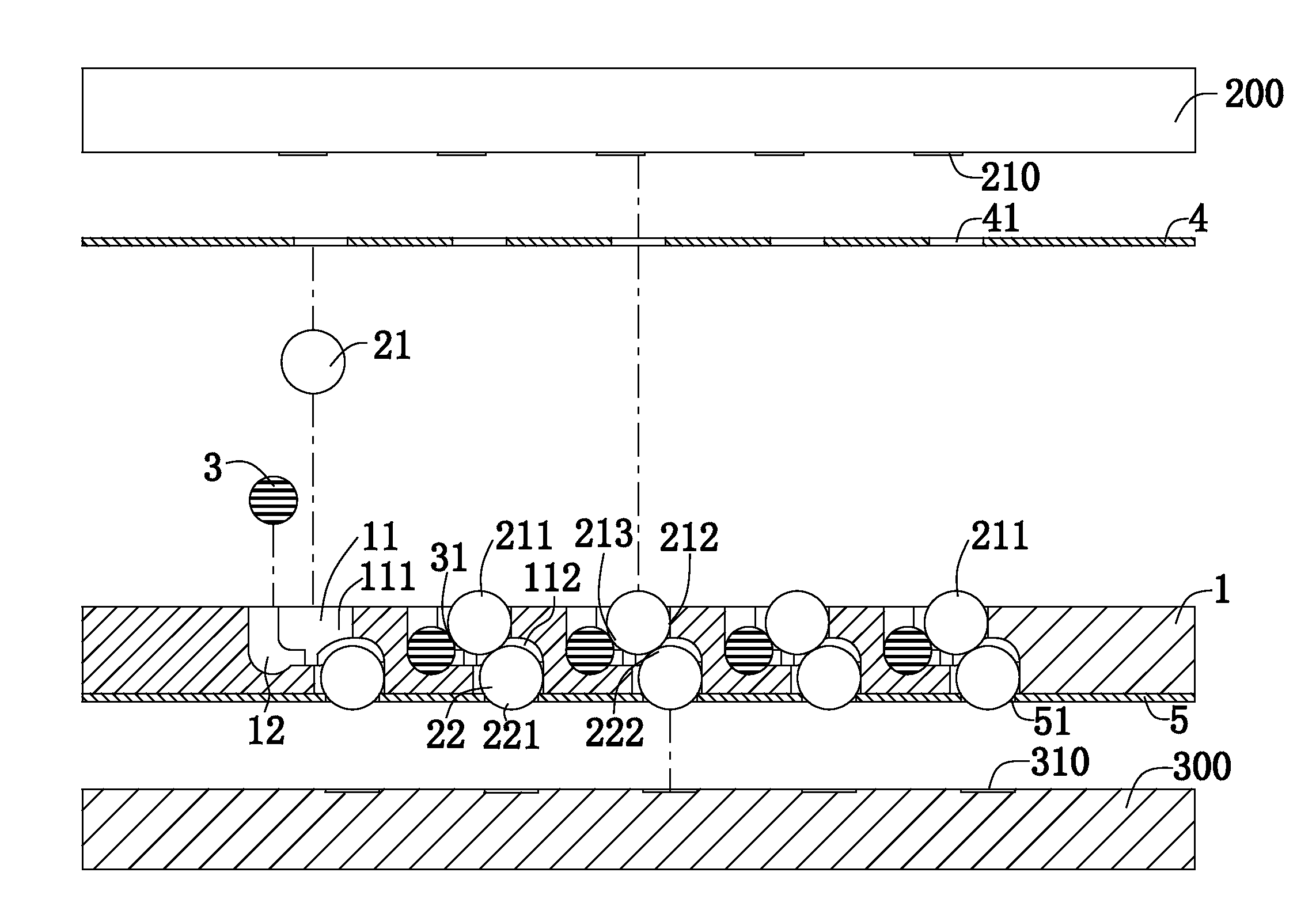

An electrical connector for electrically connecting a chip module to a circuit board, includes an insulation body having a plurality of receiving holes. Each receiving hole runs through an upper surface and a lower surface of the insulation body, and is internally and laterally provided with a receiving space. Each receiving hole is internally provided with a conducting assembly. The conducting assembly includes a first conductor correspondingly conductively connected to the chip module and a second conductor correspondingly conductively connected to the circuit board. The first conductor is conductively connected to the second conductor slidably and obliquely. Each receiving space correspondingly receives an elastomer, and the elastomer elastically supports the first conductors. At least one of the first conductor and the second conductor is in a circular shape.
