SENSOR ENHANCED FENCEROW MANAGEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 27, 2015
app pub date -
Feb 26, 2014
filing date -
Feb 26, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

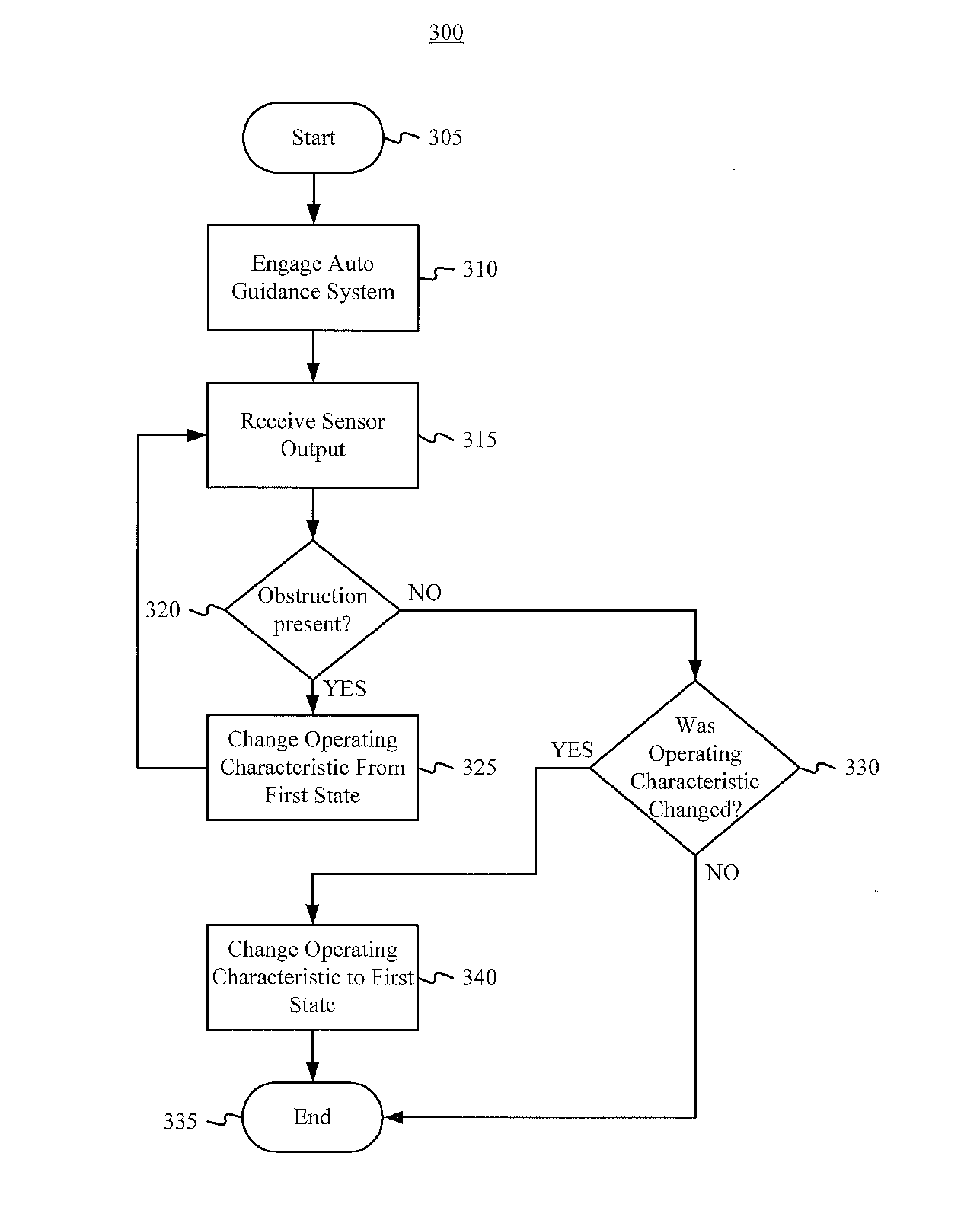

An agricultural machine has an auto guidance system operative to direct the agricultural machine along a predetermined path. At least one sensor is attached to the agricultural machine, the at least one sensor configured to indicate the presence of an obstruction in the predetermined path. The agricultural machine further includes a processor operatively coupled to the auto guidance system. The processor receives an output from the at least one sensor indicating the presence of the obstruction in the predetermined path and sends a signal to the auto guidance system, the signal operative to cause the auto guidance system to change an operating characteristic of the agricultural machine from a first state to a second state in response to the detected obstruction.
First Claim
Other Claims data not available
