OPTOELECTRONIC COMPONENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 3, 2015
filing date -
Sep 12, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

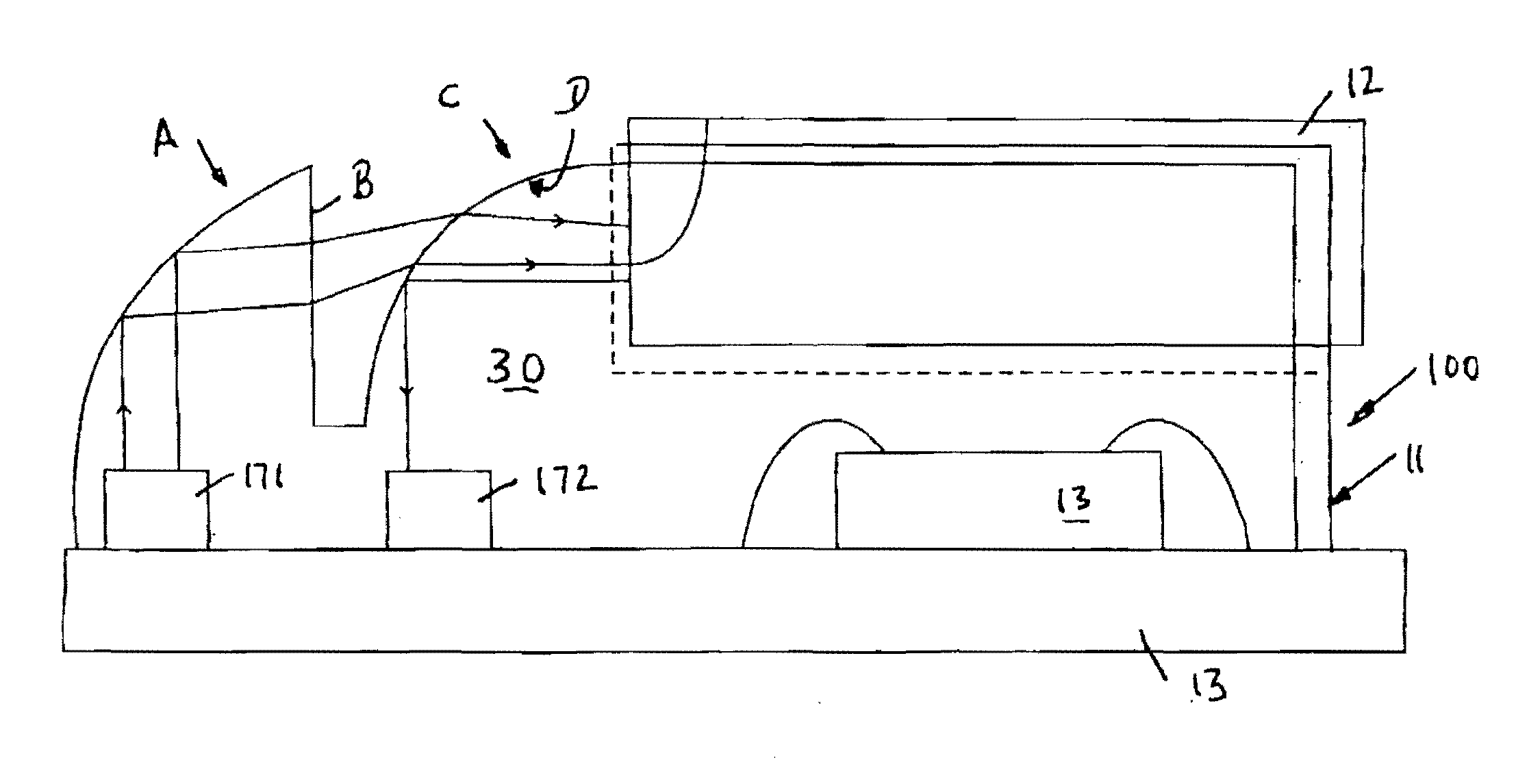

This invention relates to an optoelectronic transceiver which has the following: an optical transmitter, an optical receiver, coupling means consisting of a first and second optical lens made with optically active interfaces for changing/deflecting optical paths of on the one hand optical output signals A of the optical transmitter to a connectable optical light guide and on the other hand of input signals E of the same light guide to the receiver, characterized in that the first lens has a concave reflection surface which lies inside in the coupling means for signals of the optical transmitter and the second lens has a convex transmission surface which lies outside for outgoing signals of the optical transmitter and a concave reflection surface which lies inside for incoming signals.
