Oil separator device for a volumetric compressor and volumetric compressor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2017
Grant Date -
Aug 27, 2015
app pub date -
Aug 27, 2013
filing date -
Sep 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

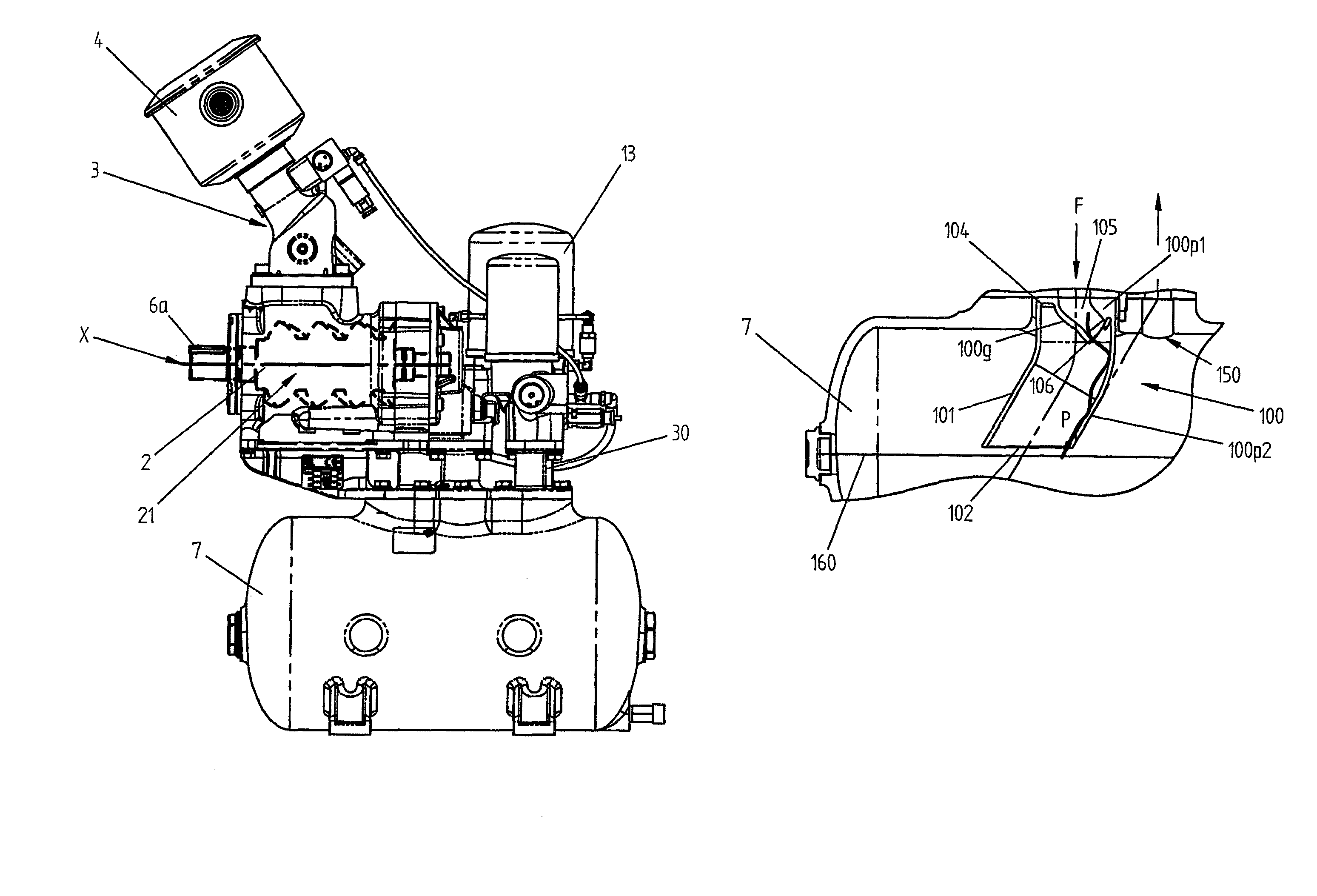

The present invention is a separator device (oil separation) (100) for a device (1) for compressing a gas through the use of a compression fluid, comprising a compression chamber (2) suited to generate a compressed mixture of the gas and the compression fluid, and a separation tank (7) for the removal of the lubricant fluid from the compressed mixture, a first tubular element (101) suited to be inserted between the compression chamber (2) and the oil separation tank (7) of the compression device (1), in such a way as to convey the mixture inside the tank (7). The device (100) comprises means for deviating and/or conveying the flow of the compressed mixture that are suited to convey the mixture against the inner walls of the first tubular element (101) before the compressed mixture flows out of the first tubular element (101). The invention also concerns a separation tank (7) for a device (1) for compressing a gas through the use of a compression fluid.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F04B Class
- 872 Applications Filed
- 785 Patents Issued To-Date
- 90.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 3, 2028 |
