Hinge mechanism and panel apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 30, 2016
Grant Date -
Aug 27, 2015
app pub date -
Dec 4, 2012
filing date -
Dec 4, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

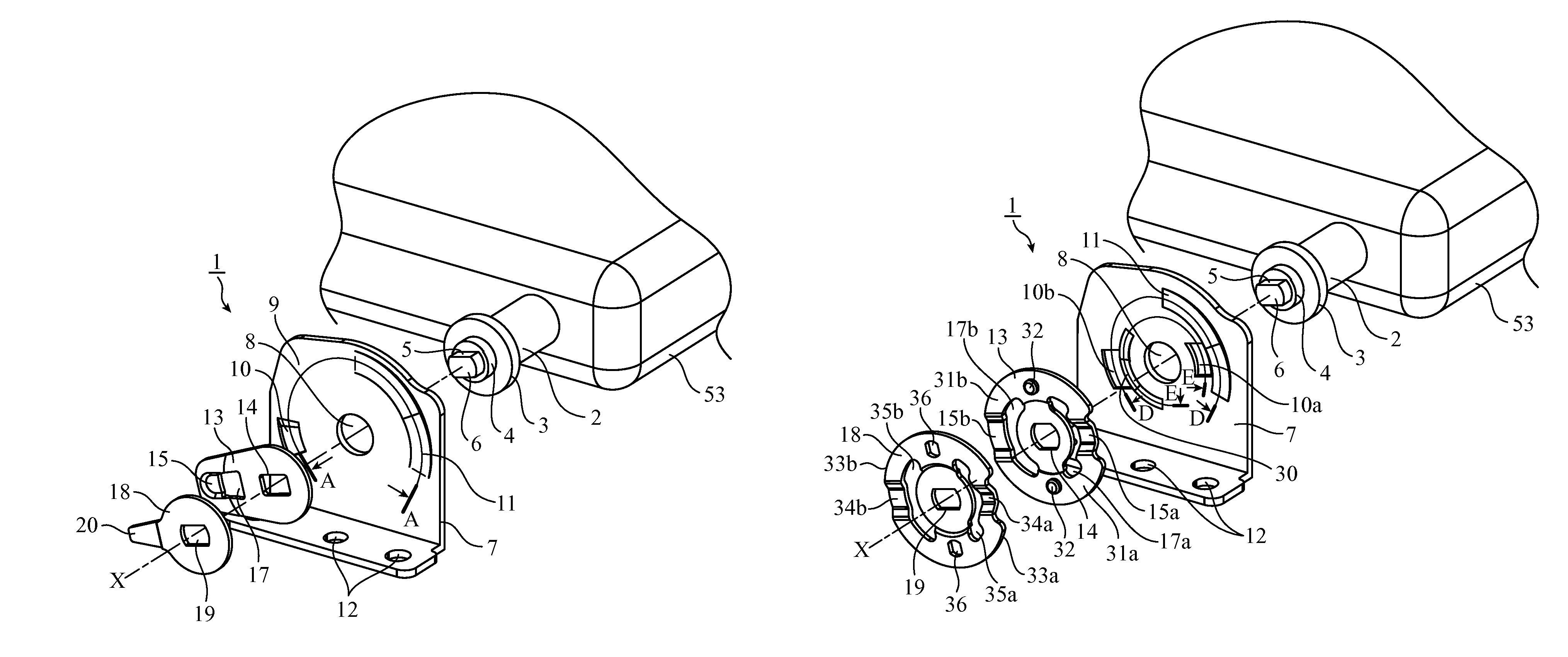

In a state where a panel unit 53 is held at a storing angle with a projecting portion 15 of a click plate 13 fitted in a recessed portion 10 of a bracket 7, the back side of the projecting portion 15 and a pressing piece 20 of a friction plate 18 do not abut on each other, so that only a reaction force of the click plate 13 serves as a resistance. When the panel unit 53 starts turning, the projecting portion 15 abuts on the pressing piece 20 through the elastic deformation at the time when the projecting portion 15 moves out of the recessed portion 10 to get onto a sliding surface 9, so that a sliding resistance is obtained from the reaction forces of the click plate 13 and the friction plate 18 after abutment.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16M Class
- 745 Applications Filed
- 450 Patents Issued To-Date
- 60.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16M Class
- 15.36 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 29, 2028 |
