Blind hinge structure used for furniture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
Aug 27, 2015
app pub date -
May 23, 2014
filing date -
Feb 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

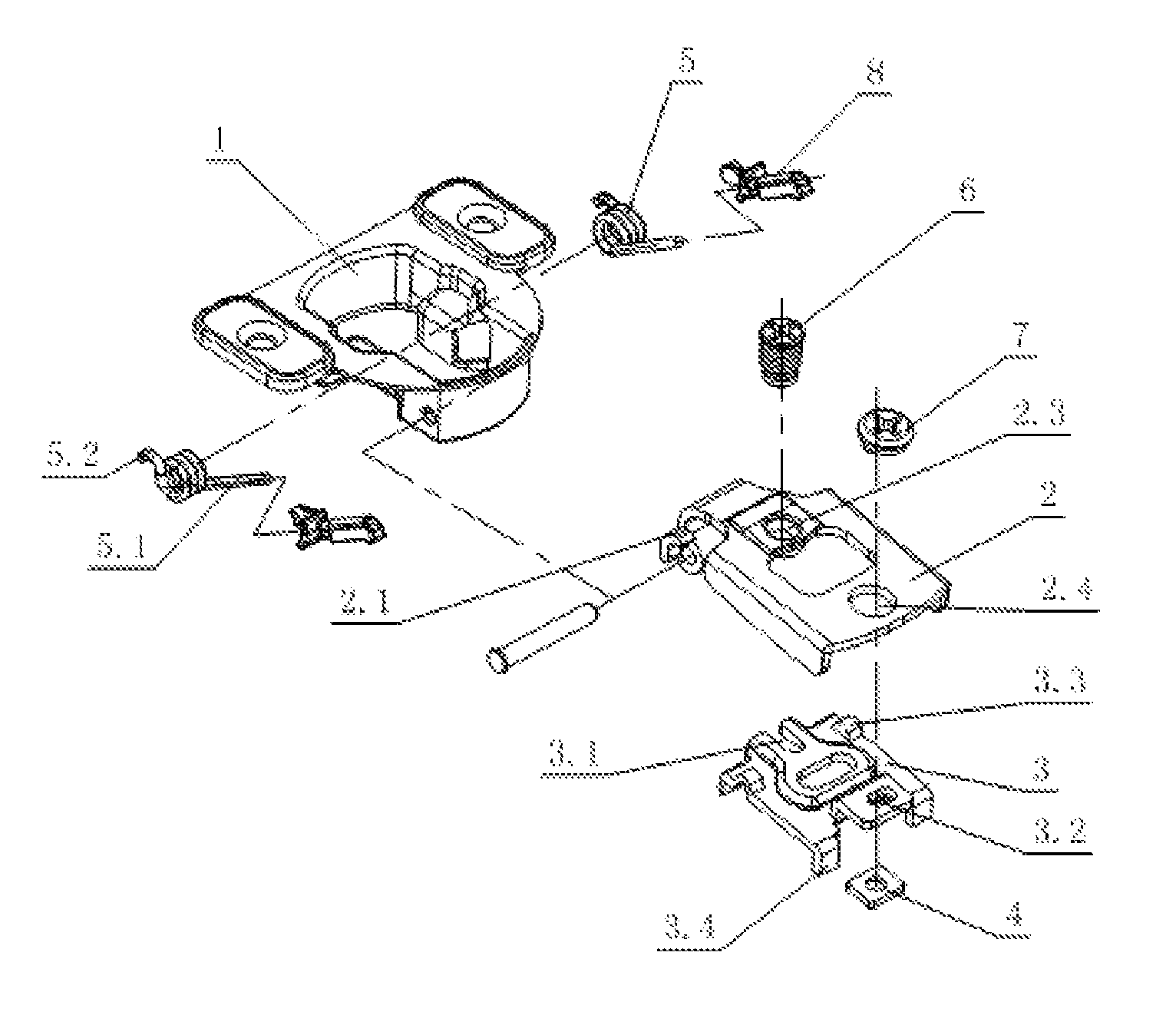

A blind hinge structure used for furniture, comprising a movable cup seat provided on the furniture door body, a regulating base provided on the main body of furniture, a rotary arm connected between the movable cup seat and the regulating base, an elastic element which is designed to generate start-stop acting force on the movable cup seat at least, wherein the front of the rotary arm is designed as “” shaped structure, the arm lever at its small end is hinged with the movable cup seat through pin shaft and forms an arc-shaped surface which is connected with the elastic member; The top surface of its big end is a plane, and regulating components are provided on the plane and are in coordinated connection with the regulating base; fasteners are provided on the regulating base and are used in coordination with the regulating components for positioning.
