System and method for black water removal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2016
Grant Date -
Aug 27, 2015
app pub date -
Feb 26, 2014
filing date -
Feb 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

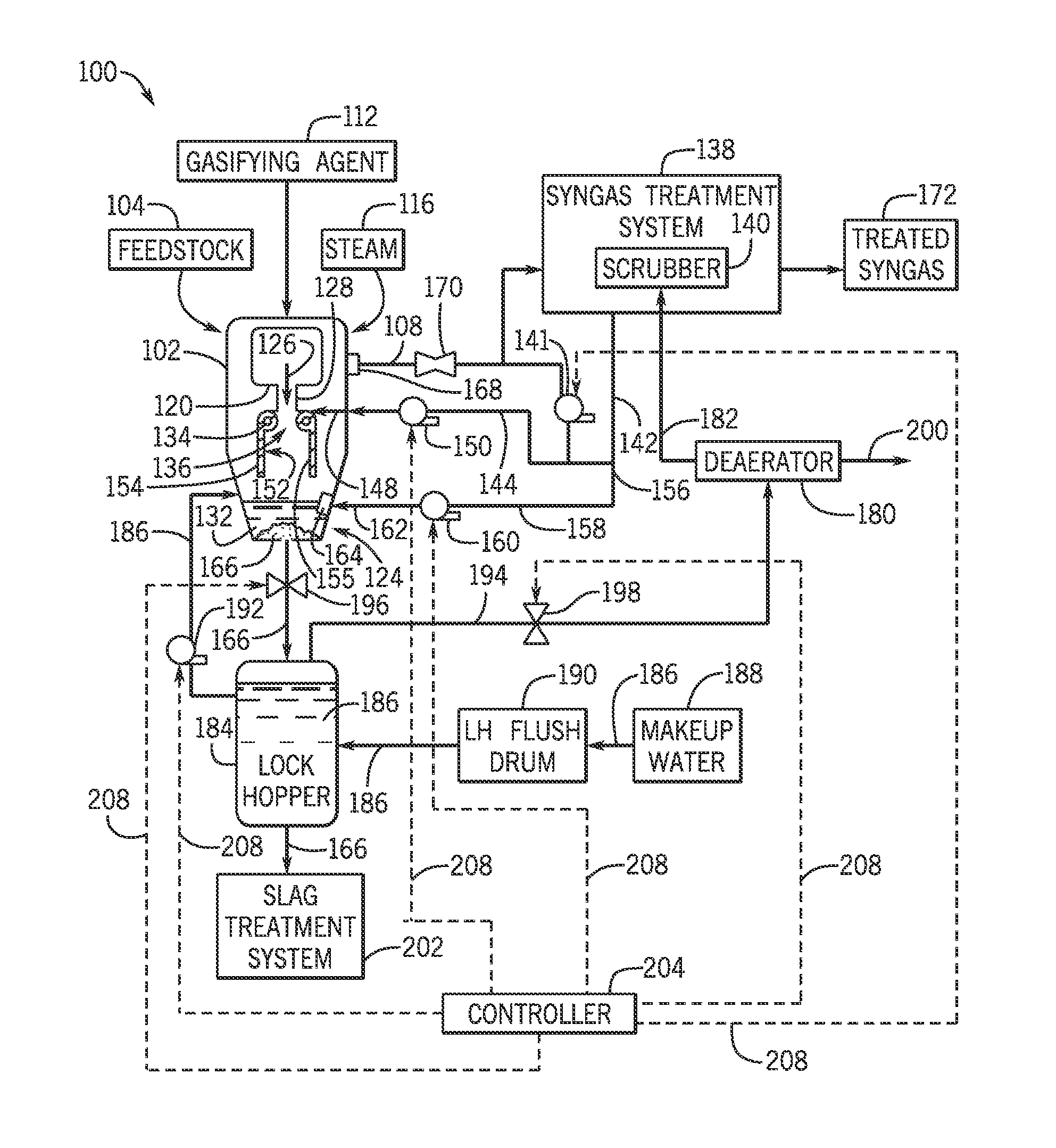

A system including a gasifier that may remove black water and includes a reactor and a quench chamber disposed downstream of the reactor. The quench chamber may cool a syngas generated in the reactor. The system also includes a syngas treatment system that may supply the gasifier with a first portion of a quench liquid via a first inlet and a second portion of the quench liquid via a second inlet; a lock hopper that may receive gasification by-products generated in the reactor and supply a third portion of the quench liquid to the gasifier via a third inlet, and a deaerator coupled to the syngas treatment system and the lock hopper. The deaerator may depressurize the lock hopper.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- C01B Class
- 1554 Applications Filed
- 1323 Patents Issued To-Date
- 85.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C01B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 11, 2028 |
