Connector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Feb 13, 2015
filing date -
Feb 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

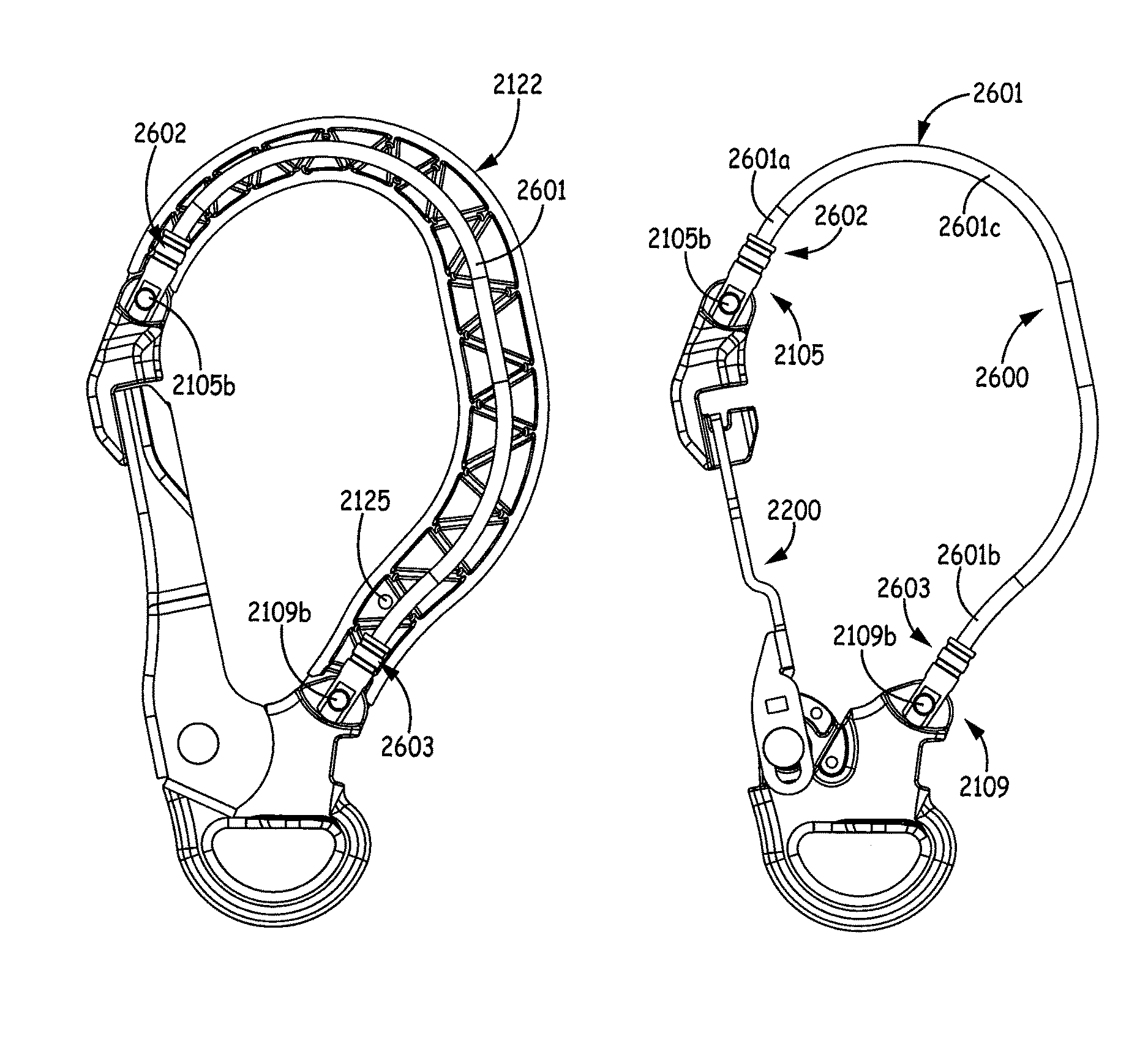

A connector includes a body and a gate. The body has a mid portion positioned between a nose portion and a connecting portion. The nose portion terminates in a nose end. The body also has an opening positioned between the nose end and the connecting portion. The mid portion has a flexible strength member extending therethrough interconnecting the nose portion and the connecting portion. The gate has a first end coupled proximate the connection portion of the body and a second end configured and arranged to engage the nose portion of the body to selectively close the opening. The gate has a closed position when positioned across the opening and an open position when the opening is at least partially unobstructed by the gate.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| BR | B1 | BR112016019075 | Feb 18, 2015 |
| WO | A1 | WO2015126878 | Feb 18, 2015 |
| KR | A | KR20160124108 | Feb 18, 2015 |
| CN | B | CN106029179 | Feb 18, 2015 |
| EP | B1 | EP3107628 | Feb 18, 2015 |
| AU | B2 | AU2015219214 | Feb 18, 2015 |
| JP | B2 | JP6573898 | Feb 18, 2015 |
International Classification(s)
- 2015 Application Filing Year
- F16B Class
- 1569 Applications Filed
- 1178 Patents Issued To-Date
- 75.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16B Class
- 36.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
