SINGLE CRYSTAL PRODUCTION APPARATUS, CRUCIBLE FOR USE THEREIN, AND METHOD OF PRODUCING SINGLE CRYSTAL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 13, 2015
app pub date -
Aug 30, 2013
filing date -
Sep 4, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

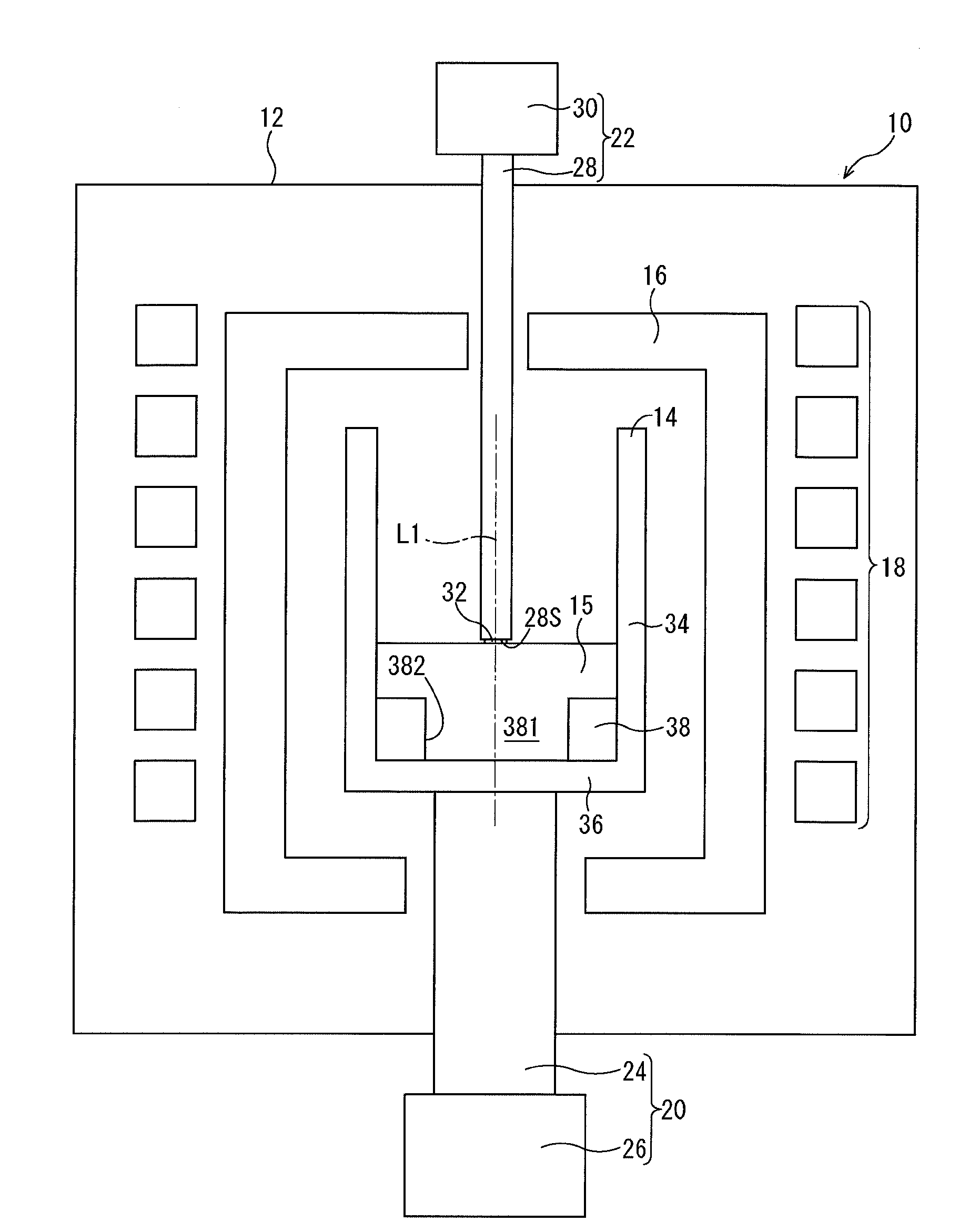

The production apparatus is used in production of single crystals by solution growth techniques. The production apparatus includes a seed shaft, a crucible, and a drive source. The seed shaft has a lower end surface to which a seed crystal is to be attached. The crucible contains a solution from which a single crystal is made. The drive source causes the crucible to rotate, and also varies the rotational speed of the crucible. The inner peripheral surface of the crucible includes a flow control surface which defines a non-circular cross-sectional shape. This single crystal production apparatus is capable of strongly stirring the solution contained in the crucible.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | B | CN104662211 | Aug 30, 2013 |
| KR | B1 | KR101707349 | Aug 30, 2013 |
| JP | B2 | JP6028033 | Aug 30, 2013 |
| WO | A1 | WO2014038166 | Aug 30, 2013 |
International Classification(s)
- 2013 Application Filing Year
- C30B Class
- 437 Applications Filed
- 395 Patents Issued To-Date
- 90.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C30B Class
- 18.41 % this patent is cited more than
- 10 Age
