Handling device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2018
Grant Date -
Aug 13, 2015
app pub date -
Oct 2, 2013
filing date -
Oct 4, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

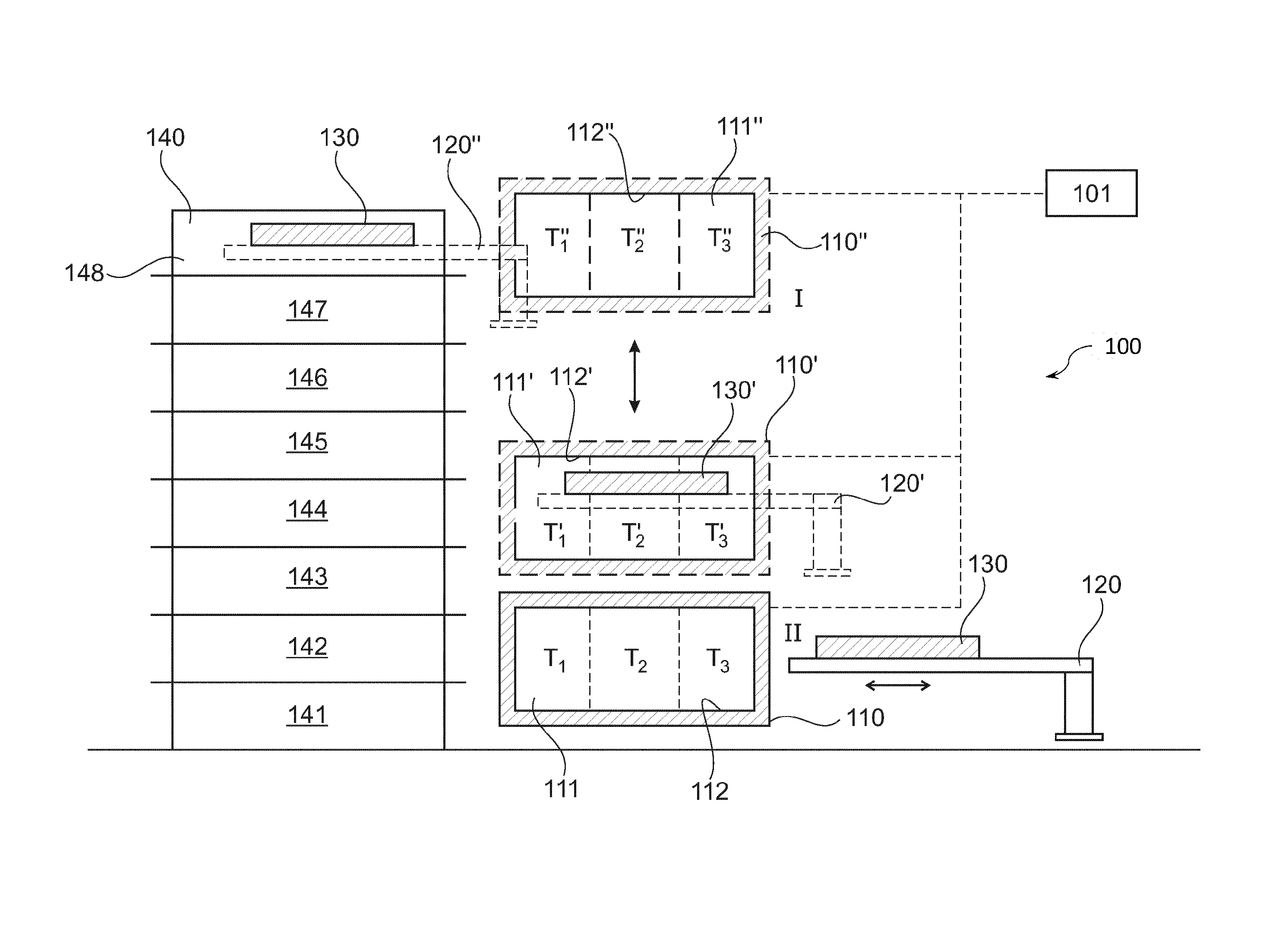

Embodiments of the present invention relate to a handling device for handling a metal component part between a furnace device and a further processing device. The handling device comprises a temperature-control chamber, in which the metal component part can be inserted, and a conveying device. The temperature-control chamber comprises a temperature-control unit that adjusts a temperature in the temperature-control chamber. The temperature-control chamber can be conveyed between a receiving position, in which the metal component part can be conveyed from the furnace device into the temperature-control chamber, and a dispensing position, in which the metal component part can be conveyed from the temperature control chamber to the further processing device. The conveying device is configured in such a manner that the metal component part can be conveyed in the receiving position by means of the conveying device between the furnace device and the temperature-control chamber and that the metal component part can be conveyed in the dispensing position by means of the conveying device between the temperature-control chamber and the further processing device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | B4 | DE102012218159 | Oct 04, 2012 |
| TW | A | TW201433640 | Sep 26, 2013 |
| EP | B1 | EP2904124 | Oct 02, 2013 |
| MX | A | MX2015003996 | Oct 02, 2013 |
| KR | A | KR20150060984 | Oct 02, 2013 |
| CN | A | CN104736729 | Oct 02, 2013 |
| JP | B2 | JP6313770 | Oct 02, 2013 |
| WO | A1 | WO2014053550 | Oct 02, 2013 |
International Classification(s)
- B21J:FORGING; HAMMERING; PRESSING; RIVETING; FORGE FURN....
- F27B:FURNACES, KILNS, OVENS, OR RETORTS IN GENERAL; OPE....
- B65G:TRANSPORT OR STORAGE DEVICES, e.g. CONVEYERS FOR L....
- F27D:DETAILS OR ACCESSORIES OF FURNACES, KILNS, OVENS, ....
- B21D:WORKING OR PROCESSING OF SHEET METAL OR METAL TUBE....
- C21D:MODIFYING THE PHYSICAL STRUCTURE OF FERROUS METALS....
- 2013 Application Filing Year
- B21J Class
- 148 Applications Filed
- 126 Patents Issued To-Date
- 85.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B21J Class
- 48.53 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 16, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 16, 2030 |
