Hand Operated Food Cutting Apparatus Having a Self-Stabilizing Pusher-Arm Mechanism and a Food-Stabilizing Pusher-Arm Mechanism for a Food Cutting Apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 10, 2015
filing date -
Feb 10, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

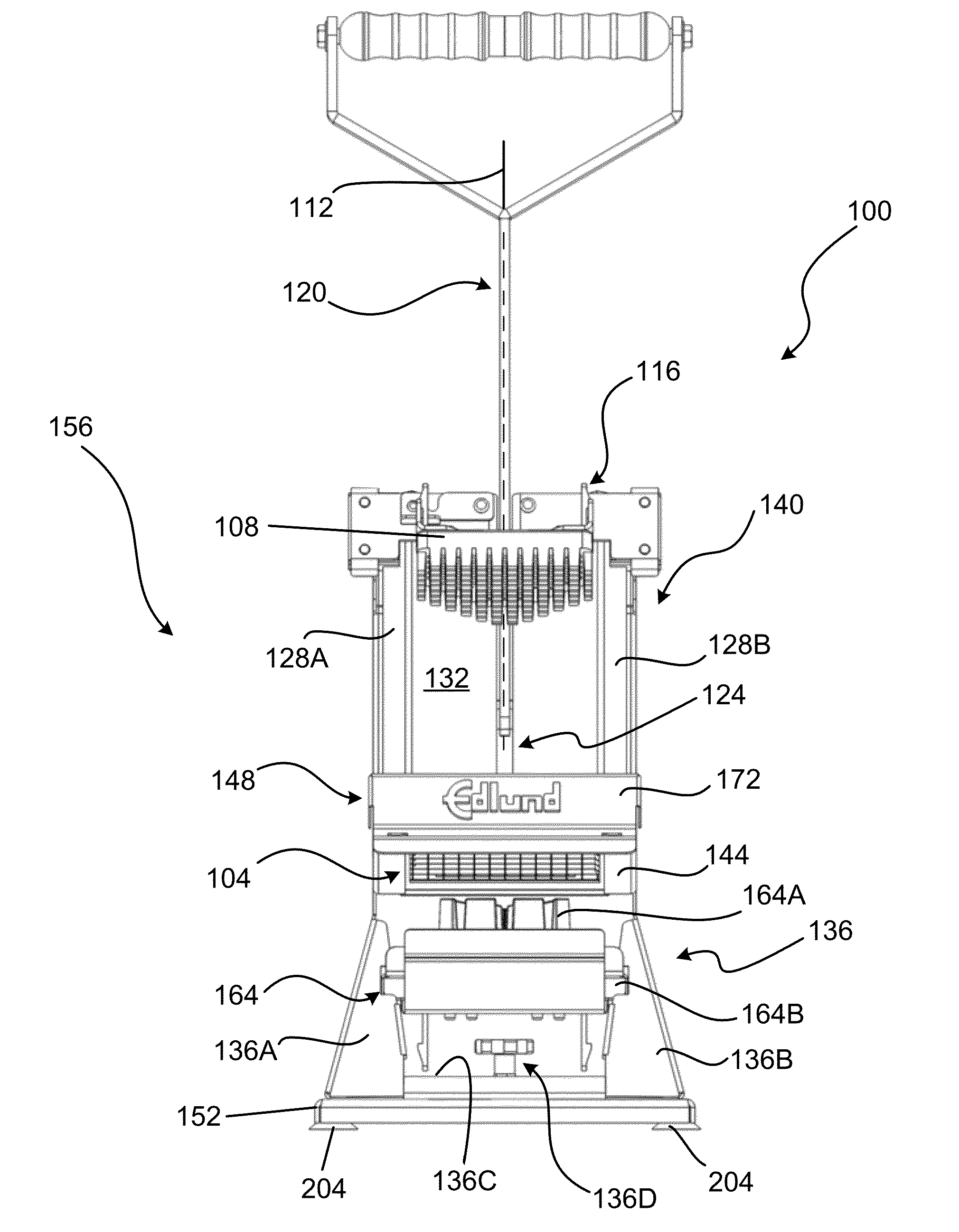

A thrust-type food cutting apparatus that includes a blade set, food product pusher, and a manually operated pusher arm having a self-stable resting-open position in which the food product pusher is spaced from the blade set to allow a user to load the cutting apparatus with food product to be cut. In an embodiment, the cutting apparatus includes a chassis and a pivoting link linking the pusher arm to the chassis to provide the pivot arm with a movable fulcrum pivot that enables the self-stable resting-open pusher arm position. A thrust-type food product cutting apparatus of the present disclosure may include a blade set, a food product pusher, and a retractable food product stabilizer that stabilizes food product loaded into the cutting apparatus and retracts as the food product pusher moves toward the blade set. Such a retractable food product stabilizer may be integrated with a self-stabilizing pusher arm mechanism.
