MANDIBULAR ADVANCEMENT DEVICE, AND A METHOD AND KIT FOR PREPARING SAID DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 6, 2015
app pub date -
Feb 6, 2015
filing date -
Feb 6, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

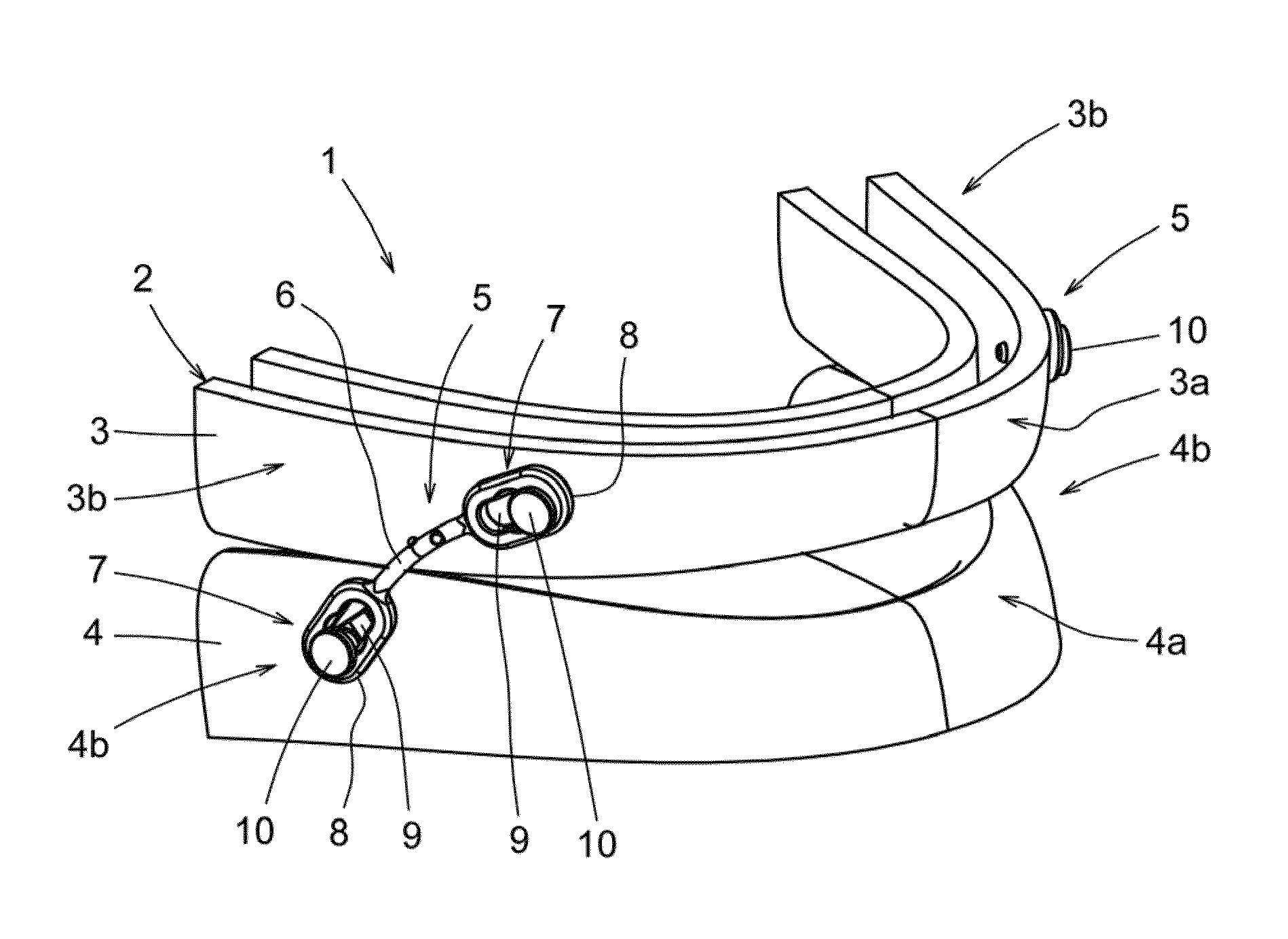

Mandibular advancement device (1; 20) and a device preparation method and kit, comprising a mouthpiece (2) and at least one plastic strap (5; 21) with two ends (7) fitted with a slot (9) that is connected articulately to a respective cylindrical portion (11) of a lateral protrusion (10) of the mouthpiece (2). The slot (9) is closed and is longer in length than the diameter of the cylindrical portion (11), which can move along the slot (9). The strap (5; 21) acts by traction between the cylindrical portions (11) of the mouthpiece (2) to prevent the free return of the lower portion (4) with respect to the upper portion (3) of the mouthpiece (2) and therefore treats apnea, whilst allowing some advancement and lateral movement of the lower portion (4), making it comfortable for the user.
First Claim
Other Claims data not available
