COMPRESSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 30, 2015
app pub date -
Jul 23, 2013
filing date -
Jul 25, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

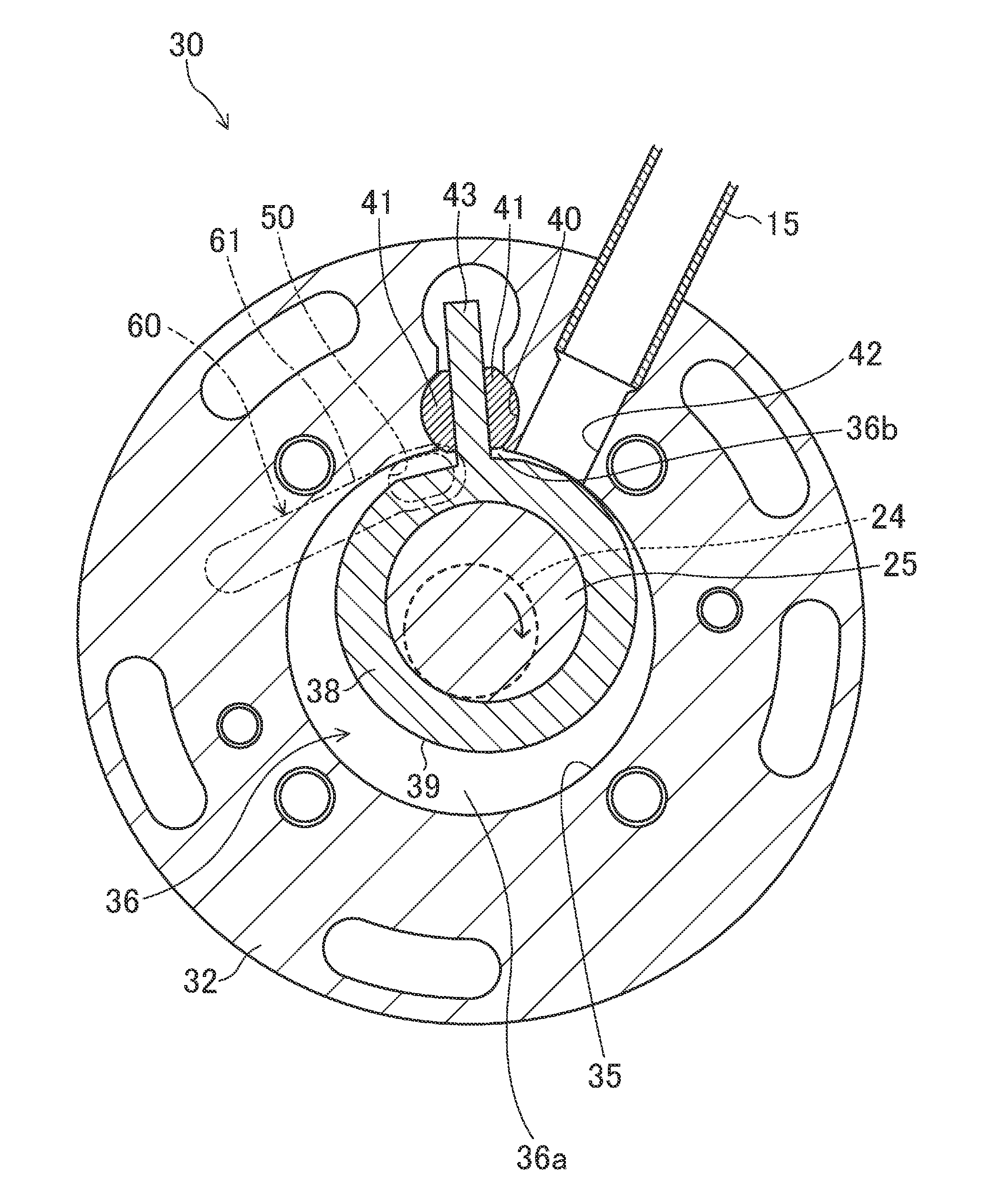

A compressor includes fixed and movable side members. The fixed side member has a discharge port opened/closed by adischarge port. The discharge valve has a valve body which closes/opens an outlet end of the discharge port. An area of an inlet end of the discharge port is Ai, a peripheral length of the inlet end is Li, and a hydraulic diameter Di of the inlet end is 4(Ai/Li). A peripheral length of the outlet end of the discharge port is Lo, a reference lift amount of the valve body is ho, a cross sectional area Ao of an outlet side flow path formed between the outlet end of the discharge port and the valve body is Lo×ho, and a hydraulic diameter Do of the outlet side flow path is 4(Ao/2Lo). A ratio (Do/Di) is 0.25 or more and 0.5 or less.
First Claim
Other Claims data not available
