Co-injection molded multi-layer article with injection-formed aperture between gate area and peripheral edge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2020
Grant Date -
Jul 30, 2015
app pub date -
May 30, 2014
filing date -
Jan 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

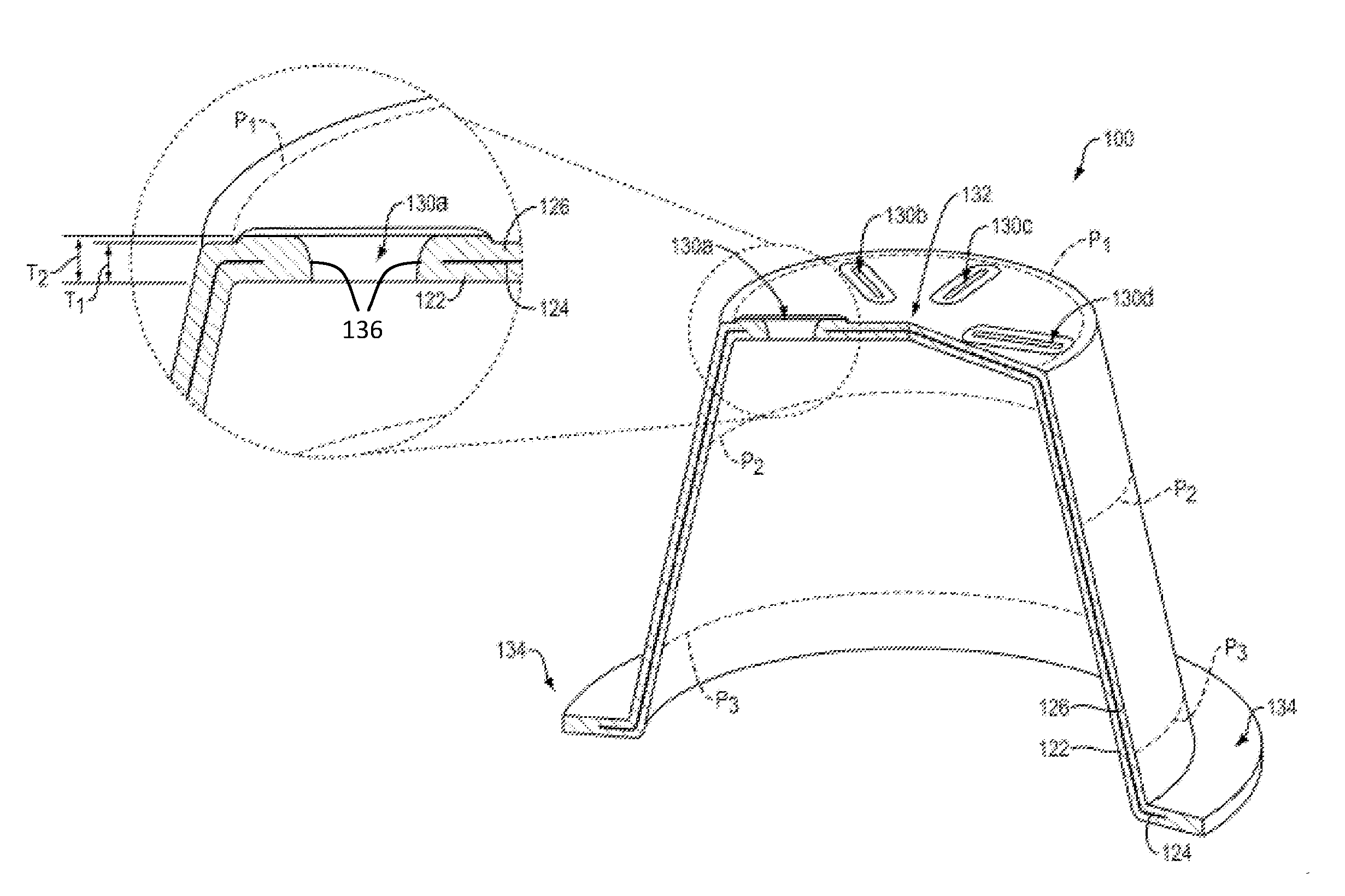

Methods and systems for co-injection molding multilayer articles having one or more molded apertures disposed between a gate region and a peripheral region of the article are disclosed. The articles include an interior layer disposed between an inner layer and an outer layer. An article has interior layer coverage over at least 98% of a perimeter of a cross-section of the article downstream of the one or more molded apertures. A method includes modifying fluid flowing past an aperture-forming region of a mold cavity to compensate for the drag of the aperture-forming region on the velocity of the fluid flowing proximal to the aperture-forming region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B29C Class
- 4829 Applications Filed
- 3911 Patents Issued To-Date
- 80.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2032 |
