WIRELESS SENSOR DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 26, 2015
filing date -
Sep 27, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

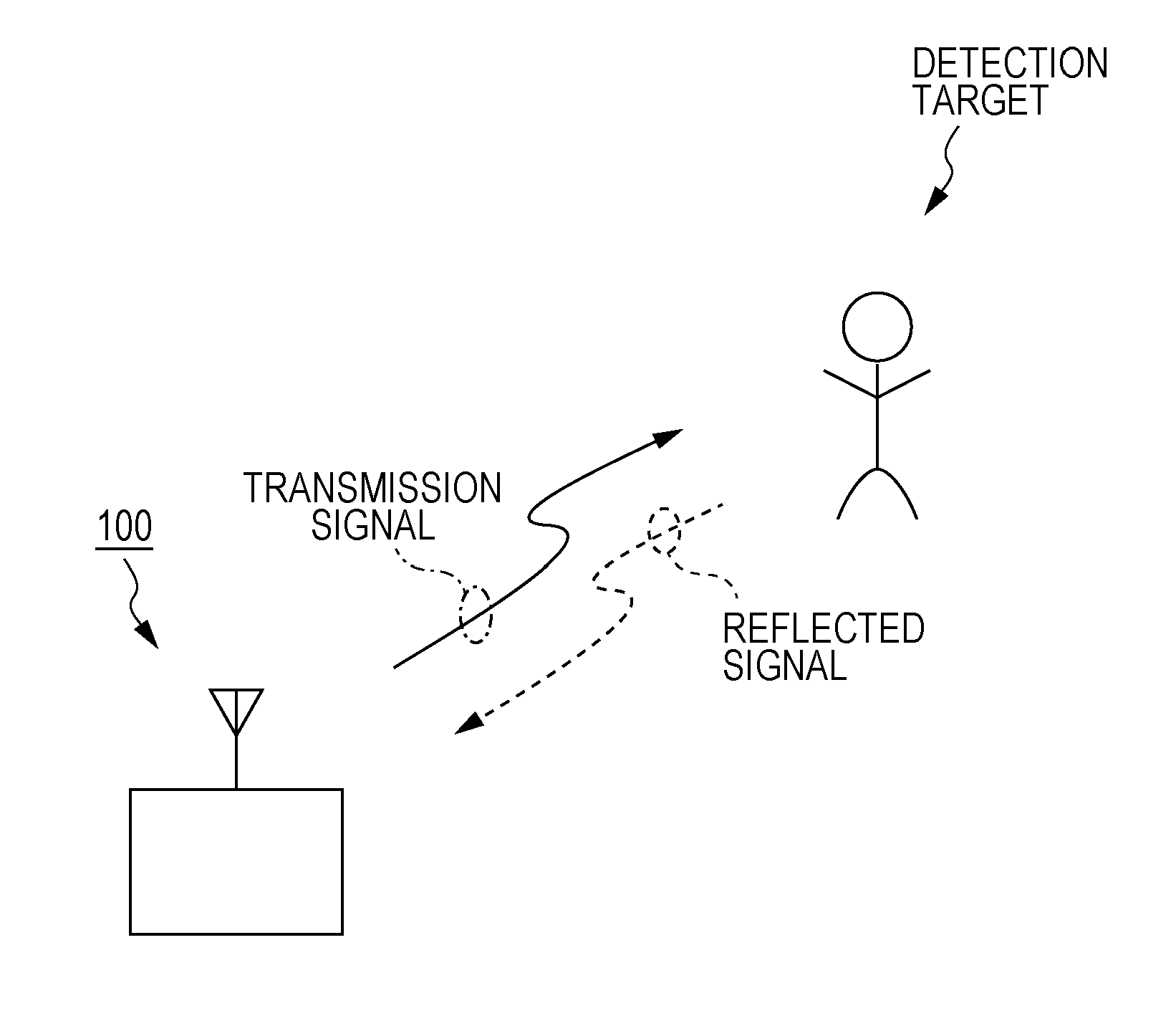

The wireless sensor device includes an antenna that radiates a transmission signal and receives a reflected signal caused by the transmission signal reflected by a detection target, a transmission circuit that includes an output terminal connected to the antenna and generates the transmission signal, a detector circuit in which part of the transmission signal and the reflected signal are input thereinto and detected while the transmission signal is transmitted, a signal processing circuit that processes a signal output from the detector circuit, and a control circuit that controls the transmission circuit, wherein, between the antenna and the output terminal, transmission lines whose line lengths are different and switching means for switching between the transmission lines and connecting the antenna and the output terminal are provided, and differences in line length between the transmission lines are less than one-fourth of a wavelength of the transmission signal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04W Class
- 0 % this patent is cited more than
- 10 Age
