OVERHEAD TRAVELING VEHICLE SYSTEM AND CONTROL METHOD FOR OVERHEAD TRAVELING VEHICLE SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 23, 2015
app pub date -
Jun 18, 2013
filing date -
Jul 26, 2012
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

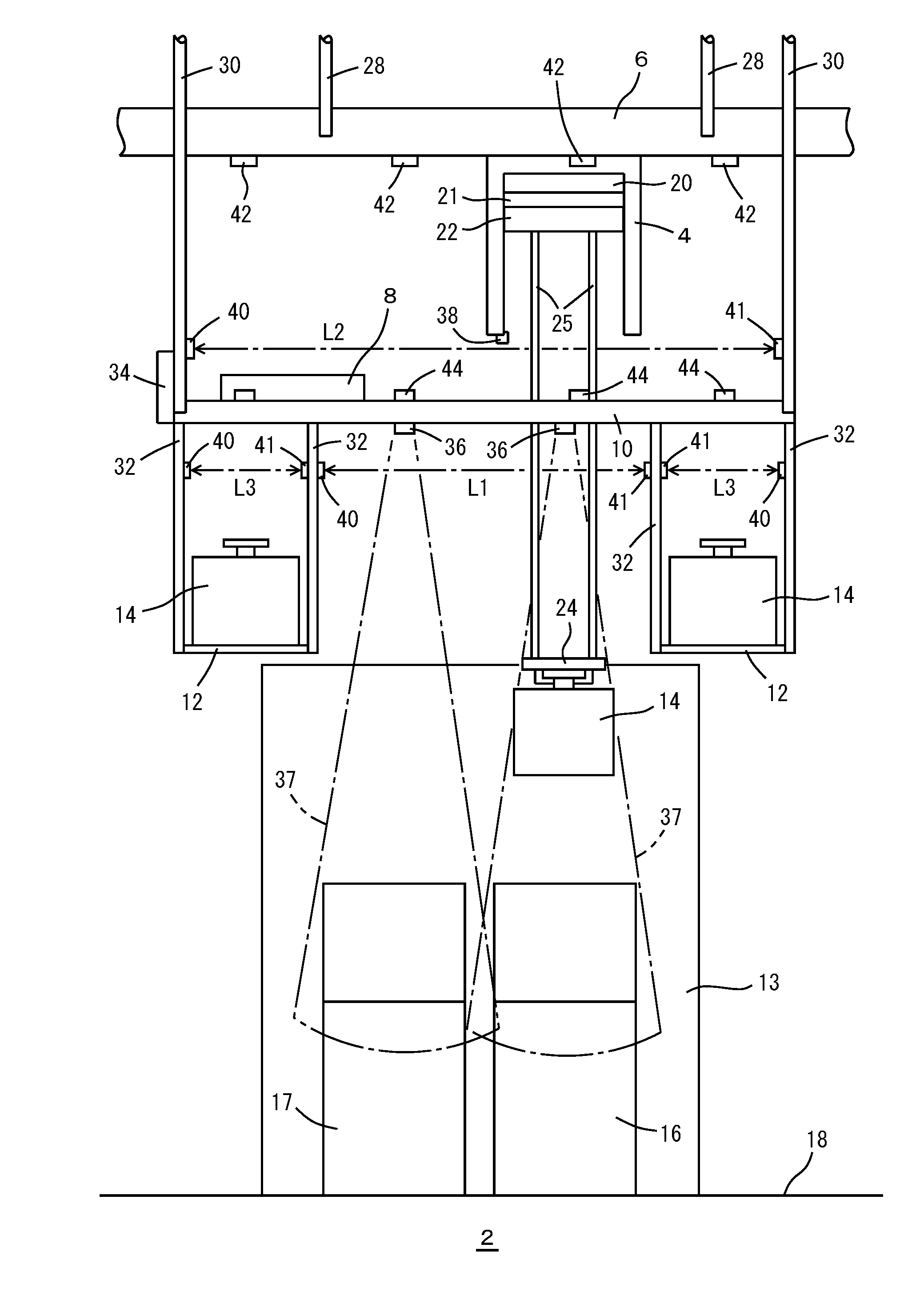

An overhead traveling vehicle and the local carriage each includes a hoist and travel directly over load ports. The track for the local carriage includes a pair of rails directly under a track for the overhead traveling vehicle, and articles vertically pass between the pair of rails using the hoist of the overhead traveling vehicle. A sensor detects an article that is horizontally swinging in a direction perpendicular or substantially perpendicular to the lengthwise direction of the track for the local carriage in the horizontal plane and is provided at least at a position that is under the track for the local carriage and outside of the raising and lowering path of an article that is not horizontally swinging. The overhead traveling vehicle and the local carriage stop the raising and lowering of the hoists when the sensor detects an article that is horizontally swinging.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
MURATA MACHINERY LTD | KYOTO-SHI KYOTO 601-8326 |
International Classification(s)

- 2013 Application Filing Year
- B66C Class
- 303 Applications Filed
- 266 Patents Issued To-Date
- 87.79 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Ota, Tatsuji | Inuyama-shi, JP | 7 | 119 |
# of filed Patents : 7 Total Citations : 119 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 10 Citation Count
- B66C Class
- 22.60 % this patent is cited more than
- 10 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 23, 2027 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
