POWER CONVERSION APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 16, 2015
app pub date -
Jul 18, 2014
filing date -
Jan 14, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

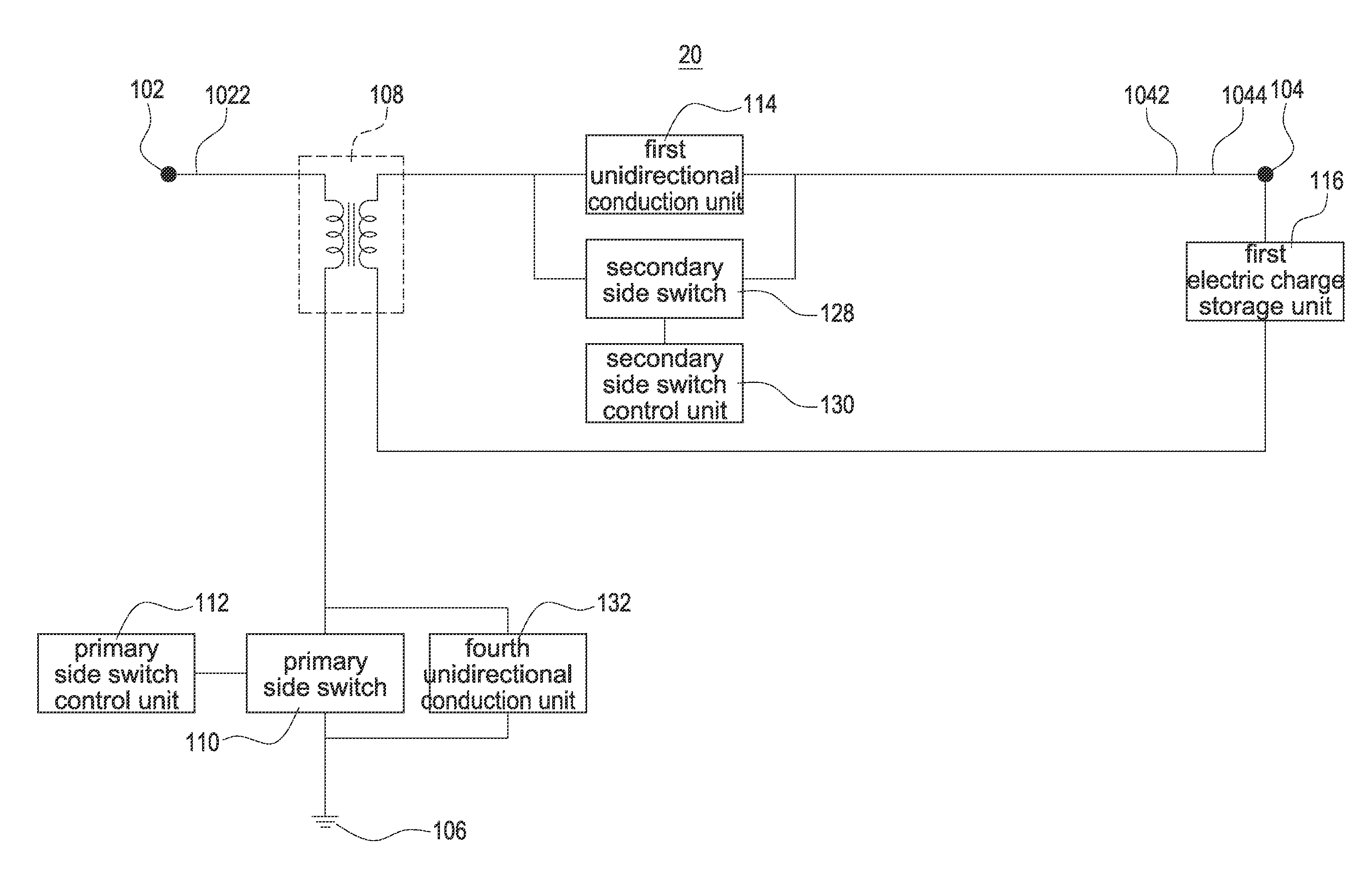

A power conversion apparatus (10) includes a transformer (108), a primary side switch (110), a primary side switch control unit (112), a mode change-over switch (122), a mode change-over switch control unit (124), a secondary side switch (128) and a secondary side switch control unit (130). The primary side switch control unit (112) is configured to turn off the primary side switch (110) and the secondary side switch control unit (130) is configured to turn on the secondary side switch (128) if the power conversion apparatus (10) is operated in a reactive power area. The mode change-over switch control unit (124) is configured to turn off the mode change-over switch (122). Therefore, the power conversion apparatus (10) has functions of a flyback power converter and a function of reactive power compensation.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 10 Age
