DRAWER KNOB LATCH
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 16, 2015
app pub date -
Jan 10, 2014
filing date -
Jan 10, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

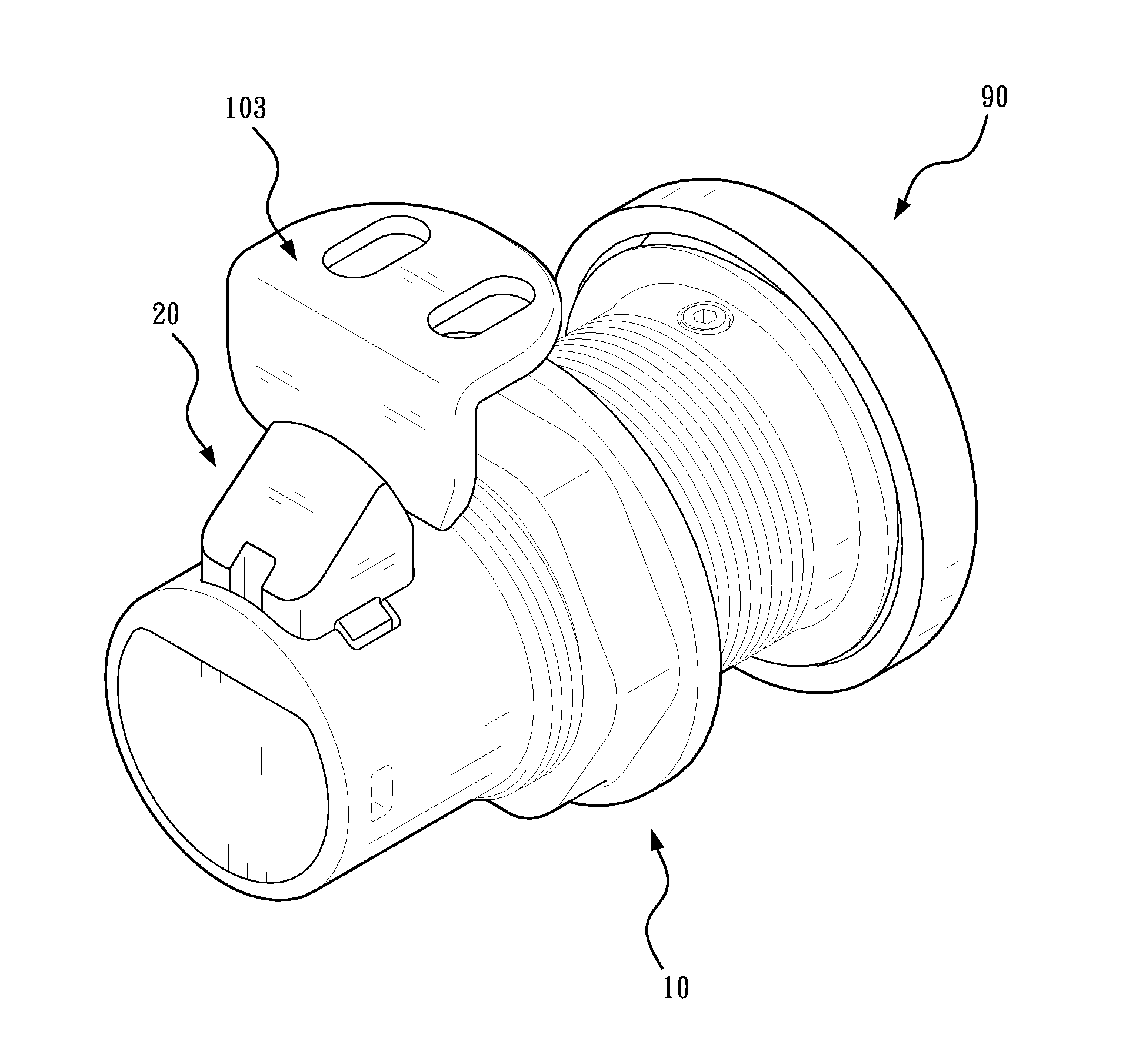

A drawer knob latch installed on a drawer capable of sliding inward or outward on a main body includes a casing with a hollow space therein and inserted on a front board of a drawer wherein one end thereof protruding inwardly from the front board is peripherally and radially provided with a latch hole, a latch slidingly disposed in the latch hole, a pivot axle slidingly moveably disposed in the space along a central axis of the casing and driven by a driving assembly in the space to move toward or away from the latch to reach either a locked position or a released position, and a drawer buckle connecting to the driving assembly and exposing on the outer side of the casing and the front board for driving the motion of the driving assembly and thus controlling the locking status of the latch.
First Claim
Other Claims data not available
