WRAP-AROUND AIRBAG DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 23, 2015
filing date -
Nov 10, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

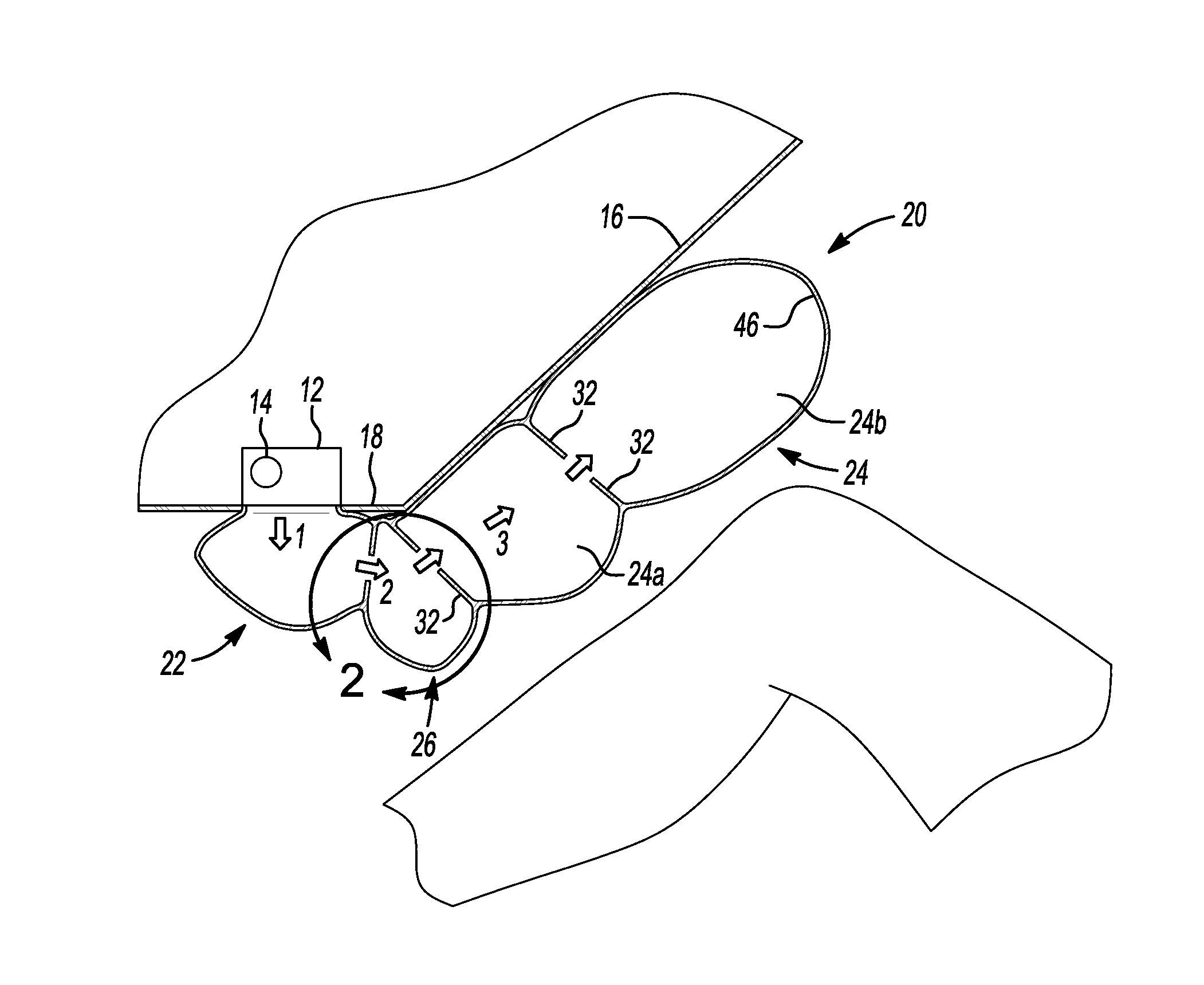

An airbag device for a vehicle including at least one airbag housing interface chamber that attaches to an airbag housing; at least one airbag cushion chamber downstream of the at least one interface chamber; an elbow that fluidly connects the housing interface chamber with the cushion chamber and configured so that it controllably regulates gas flow into the at least one airbag cushion chamber; the elbow having an internal configuration, which includes at least one opening that permits back and forth gas flow between the elbow'and the least one airbag cushion chamber, and which controls the directional deployment of the airbag cushion chamber so that upon deployment the do tread end of the cushion chamber exits an airbag housing outwardly in a first direction and then in at least one second direction, so that the direction of deployment of the cushion chamber changes in direction to thereby wrap at least partially around a structure of a vehicle of the vehicle and at least temporarily interpose the cushion chamber between any occupant and the vehicle structure.
First Claim
Other Claims data not available
