METHOD FOR FABRICATING A FRANCIS-TYPE RUNNER FOR A HYDRAULIC MACHINE, AND RUNNER FABRICATED USING SUCH A METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 9, 2015
app pub date -
Dec 19, 2014
filing date -
Jan 8, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

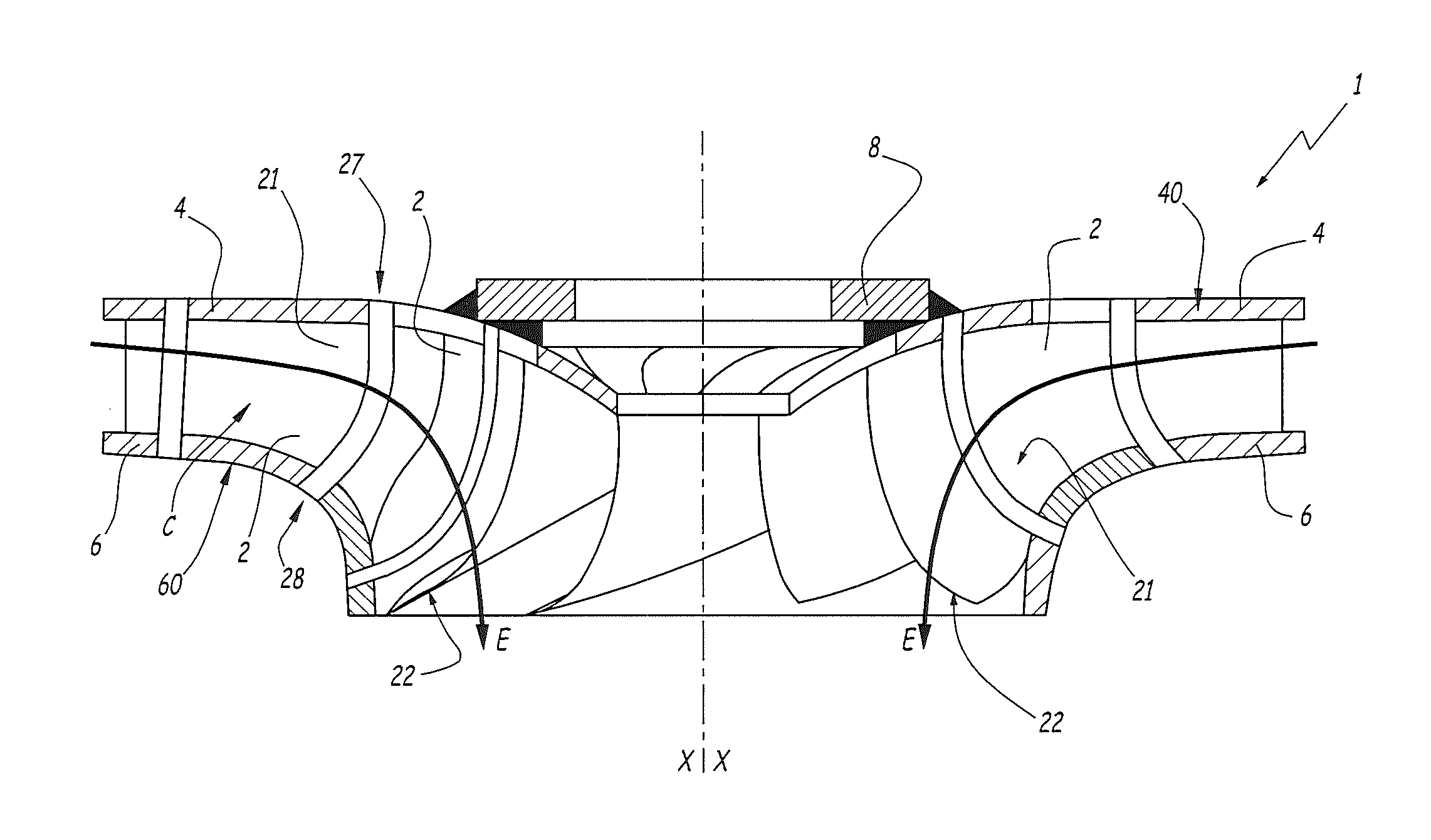

The method relates to the fabrication of a Francis-type runner for a hydraulic machine. The Francis-type runner includes: a runner band including at least two elements partially defining the runner band, a runner crown including at least two elements partly defining the runner crown, and a plurality of blades extending between the runner crown and the runner band. The blades are each fitted in between two elements of the runner band and between two elements of the runner crown. The method includes fabricating separately the blades, the elements of the runner band and the elements of the runner crown. All the elements of the runner band are then welded to the blades using an electron beam welding method. All the elements of the runner crown are then welded to the blades using an electron beam welding method.
First Claim
Other Claims data not available
