Method of processing ethanol byproducts and related subsystems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2020
Grant Date -
Jul 9, 2015
app pub date -
Mar 18, 2015
filing date -
Aug 17, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

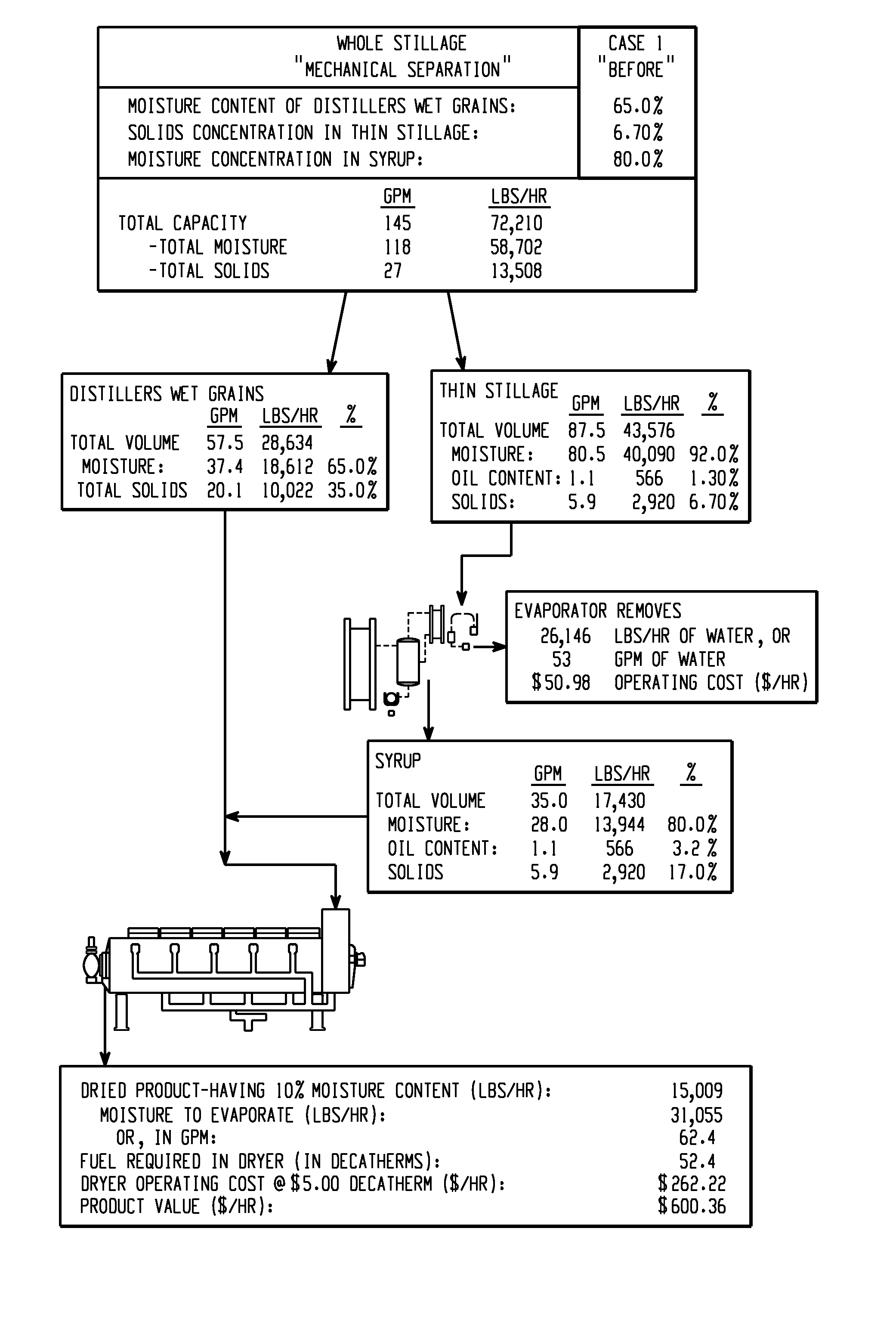

In one aspect of the invention, a method recovers oil from a concentrated byproduct, such as evaporated thin stillage formed during a dry milling process used for producing ethanol. The method includes forming a concentrate from the byproduct and recovering oil from the concentrate. The step of forming the concentrate may comprise evaporating the byproduct. Further, the step of separating the oil from the concentrate may comprise using a centrifuge and, in particular, a disk stack centrifuge. Other aspects of the invention include related methods and subsystems for recovering oil from thin stillage.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2015 Application Filing Year
- C11B Class
- 251 Applications Filed
- 177 Patents Issued To-Date
- 70.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C11B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 19, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2031 |
