Self-inking stamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 10, 2016
Grant Date -
Jul 9, 2015
app pub date -
Jan 7, 2015
filing date -
Jan 8, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

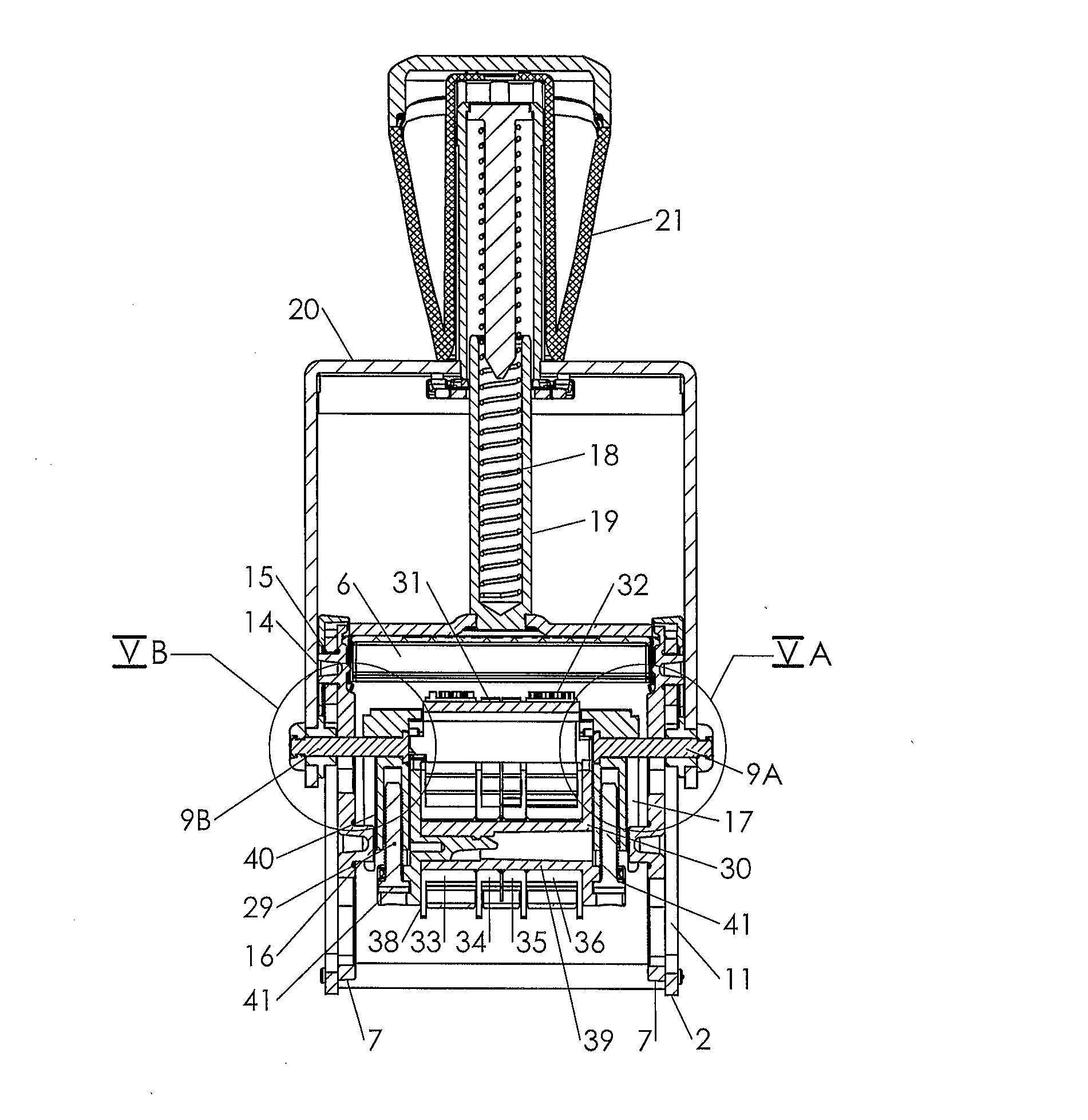

A self-inking stamp with a stamp housing, in which a type unit, which is coupled via a turning axle device to an actuating bow that is upwardly and downwardly displaceable relative to the stamp housing, is arranged such that it can be moved between an upper inking position when it is in contact with an ink pad and a lower printing position turned by 180° with the help of a turning mechanism, wherein the type unit includes two type unit parts arranged one within the other, namely an outer and an inner type unit part, wherein the inner type unit part thereof is accommodated in an inner receiving space in the outer type unit part and is releasably connected to the outer, bow-shaped type unit part, wherein the turning axle device includes two separate, outer axle elements, each extending through an opening in a leg of the actuating bow, through a slot in the stamp housing to and into the outer type unit part and being connected thereto.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B41K Class
- 20 Applications Filed
- 19 Patents Issued To-Date
- 95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B41K Class
- 26.67 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 10, 2027 |
