LIGHT SOURCE MODULE AND DISPLAY DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 2, 2015
app pub date -
Oct 7, 2014
filing date -
Dec 26, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|

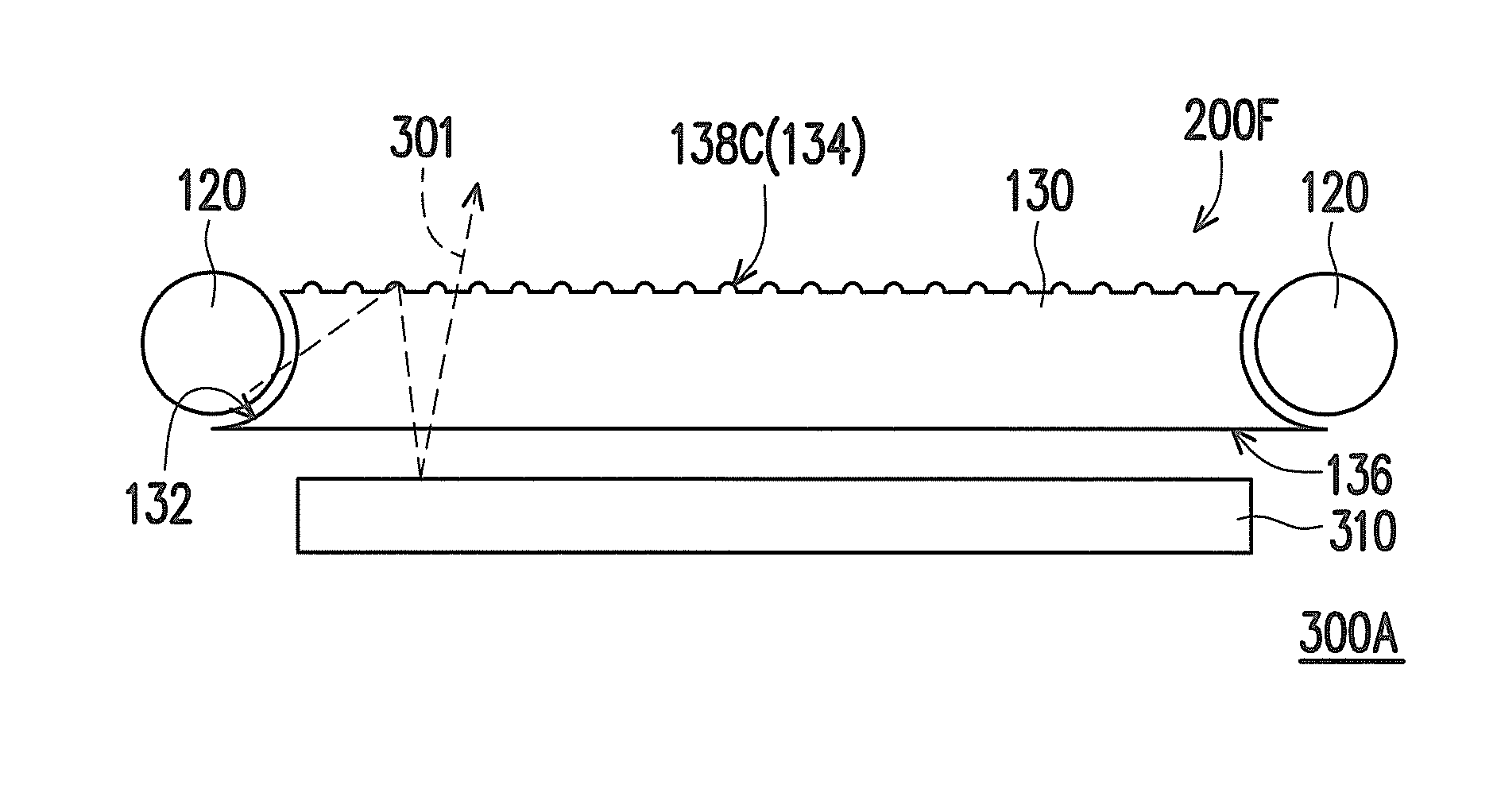

Abstract
A light source module that includes a light guide strip, at least one light-emitting device, and a light guide plate (LGP) is provided. The light guide strip includes at least one light-incident end and a light-emitting surface. The light-emitting surface is at least one portion of a side surface of the light guide strip, and the side surface is adjacent to the light-incident end. The light-emitting device is located beside the light-incident end and configured to emit light that enters the light-incident end. The LGP is located beside the light guide strip and has a first surface, a second surface, and a light-incident surface. The second surface is opposite to the first surface, and the light-incident surface is connected to the first surface and the second surface and faces the light-emitting device. The light guide strip surrounds the light-incident surface. A display device is also provided.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| TW | B | TWI639868 | Dec 26, 2013 |
| CN | A | CN104747937 | Feb 17, 2014 |
International Classification(s)
- 2014 Application Filing Year
- F21V Class
- 3266 Applications Filed
- 2625 Patents Issued To-Date
- 80.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F21V Class
- 9.38 % this patent is cited more than
- 10 Age
