ORGANIC ELECTROLUMINESCENT ELEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 25, 2015
app pub date -
Nov 16, 2012
filing date -
Dec 13, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

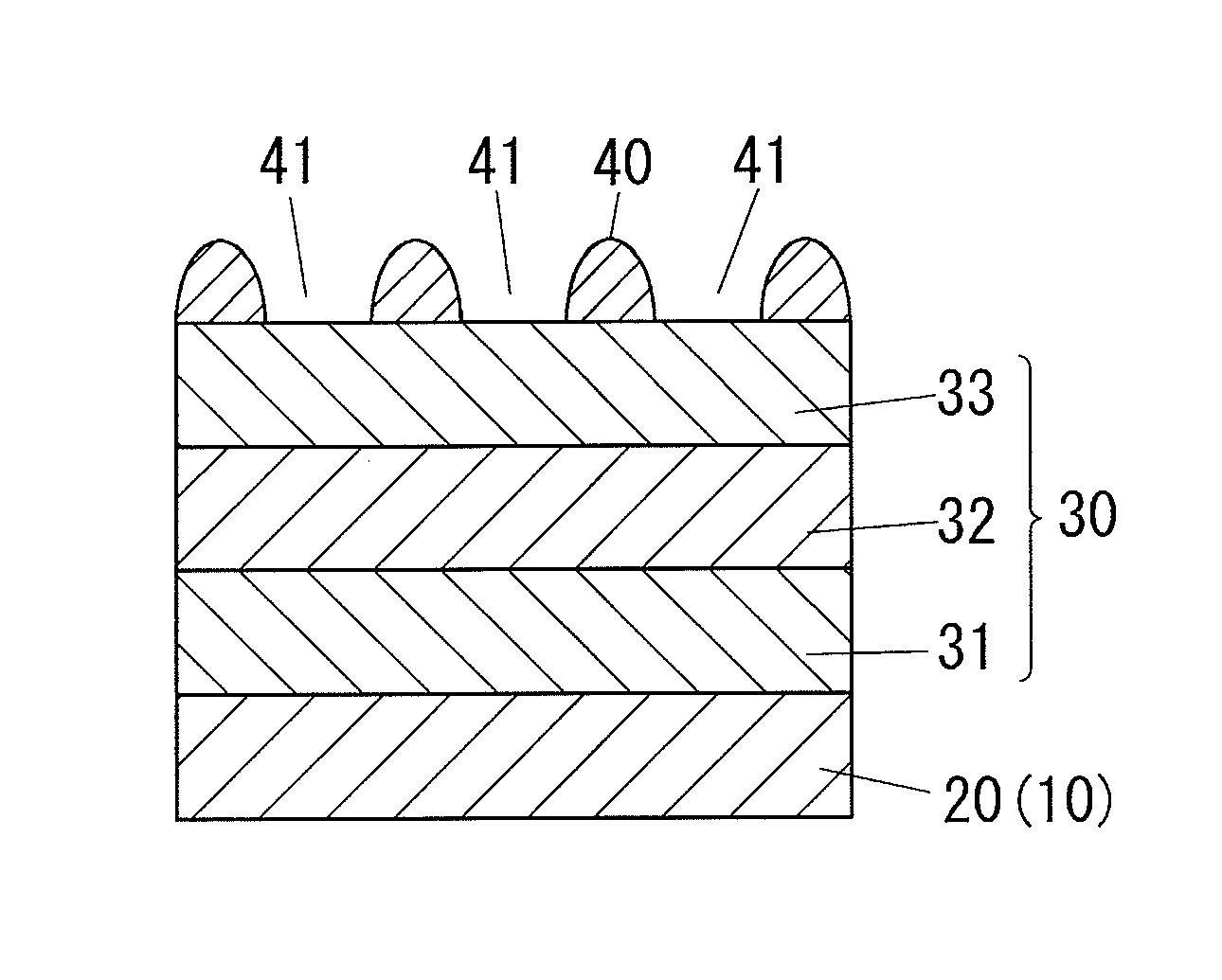

The organic electroluminescent element includes: a substrate; a first electrode on a surface of the substrate; a second electrode opposite the first electrode; and a functional layer that is between the first electrode and the second electrode and includes at least a light emission layer. In this organic electroluminescent element, the first electrode is a metal electrode and also is a light-reflective electrode, the second electrode is a light-transmissive electrode, and thus light is allowed to emerge outside from the second electrode. The light emission layer is of a polymer material and has an in-plane direction and a thickness direction. A refractive index in the in-plane direction of the light emission layer is greater than a refractive index in the thickness direction of the light emission layer.
First Claim
Other Claims data not available
