NUT MEMBER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 25, 2015
app pub date -
Jul 16, 2013
filing date -
Aug 1, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

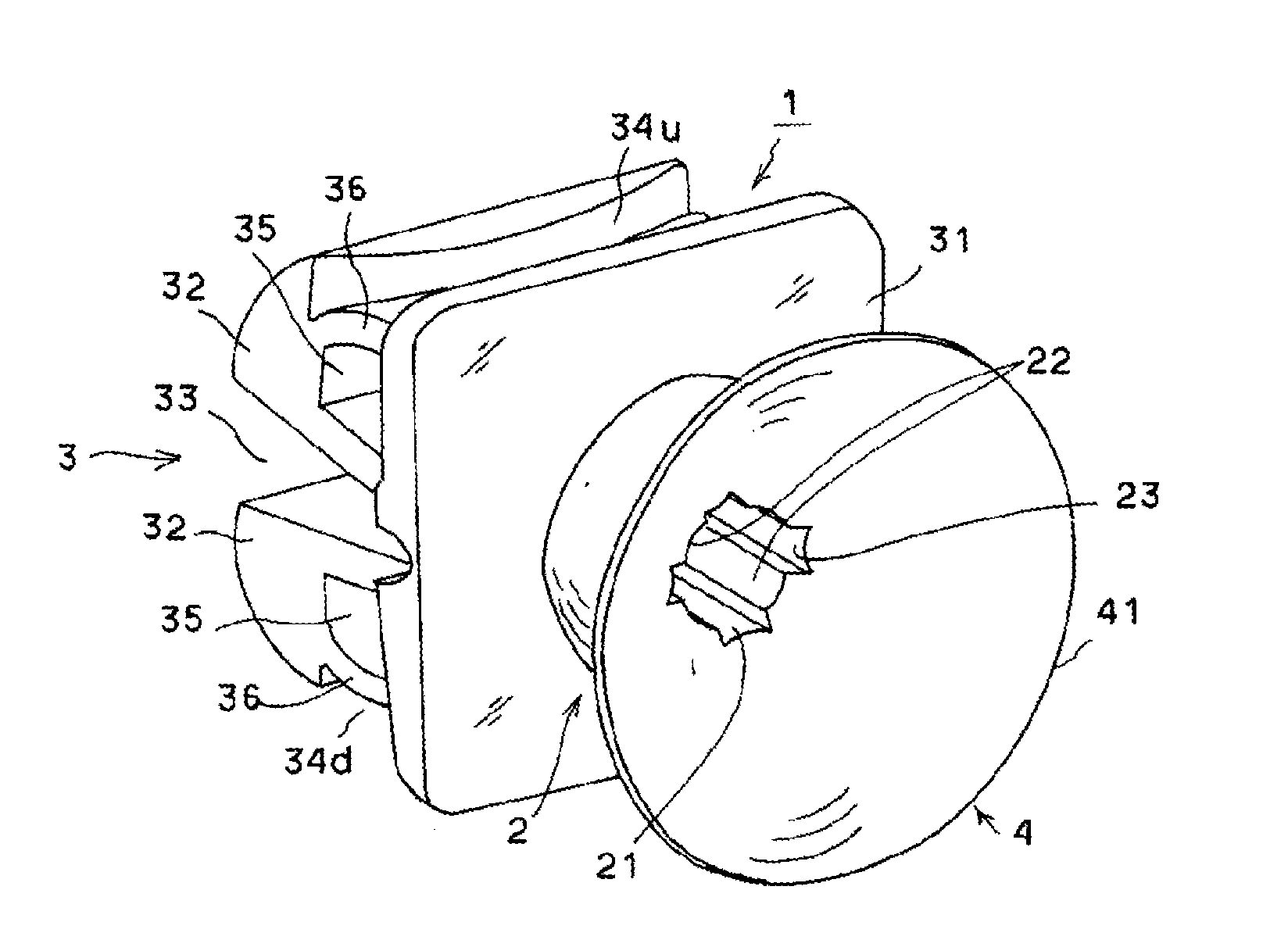

A nut member, which is used for an aiming mechanism of a lamp configured by an aiming screw 120 that is supported in a lamp body 101 so as to turn on its own axis and a nut member 1 that is supported in a bracket 109 of a reflector, includes a fitting portion 3 which is to be fitted in a fitting hole 110 provided in the bracket 109, and an internal thread portion 2 which is to be screwed on to an external thread portion 121 of the aiming screw 120, and an introducing portion 4 which guides the aiming screw 120, wherein the fitting portion 3 and the internal thread portion 2 are formed in different axial positions on the nut member 1.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16B Class
- 18.00 % this patent is cited more than
- 10 Age
