Process for preventing rotating stall and surge in a turbomachine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Oct 16, 2014
filing date -
Dec 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

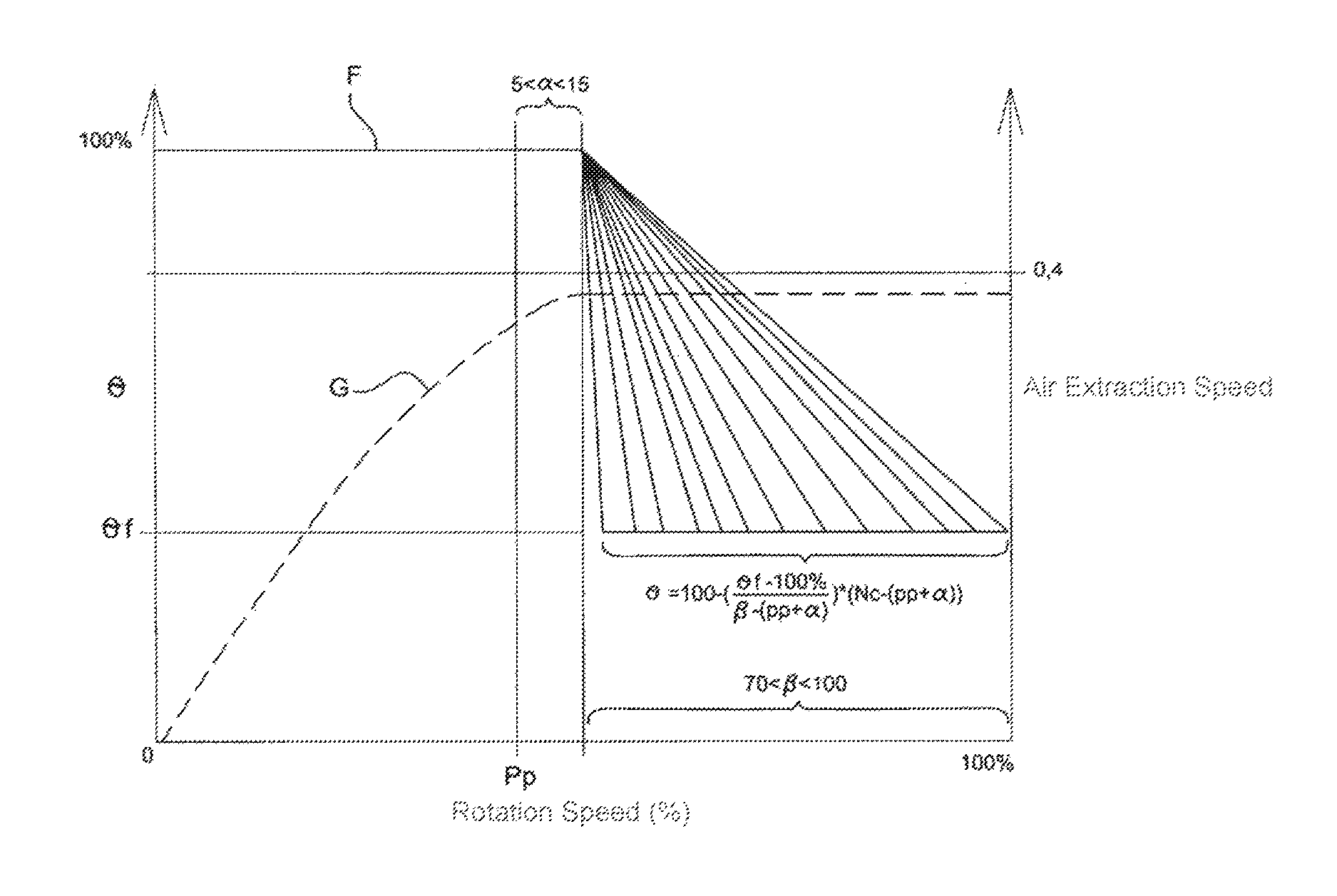

The present application provides a process for preventing rotating stall and surge in a turbomachine compressor. The compressor may include air extraction pipes connecting the compressor to a turbomachine exhaust area or to the atmosphere, at least one of the pipes is fitted with a flow regulation valve, and each valve has an adjustable degree of opening. The process includes, for at least one of the valves, a complete opening command when the compressor rotation speed is less than a predetermined threshold value beyond which there is no longer any risk of rotating stall and surge and a command for lowering the degree of opening of the valve when the rotation speed of the compressor exceeds the threshold value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F04D Class
- 1416 Applications Filed
- 1174 Patents Issued To-Date
- 82.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F04D Class
- 27.01 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
