Drive assembly for tire service machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jul 9, 2013
filing date -
Jul 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

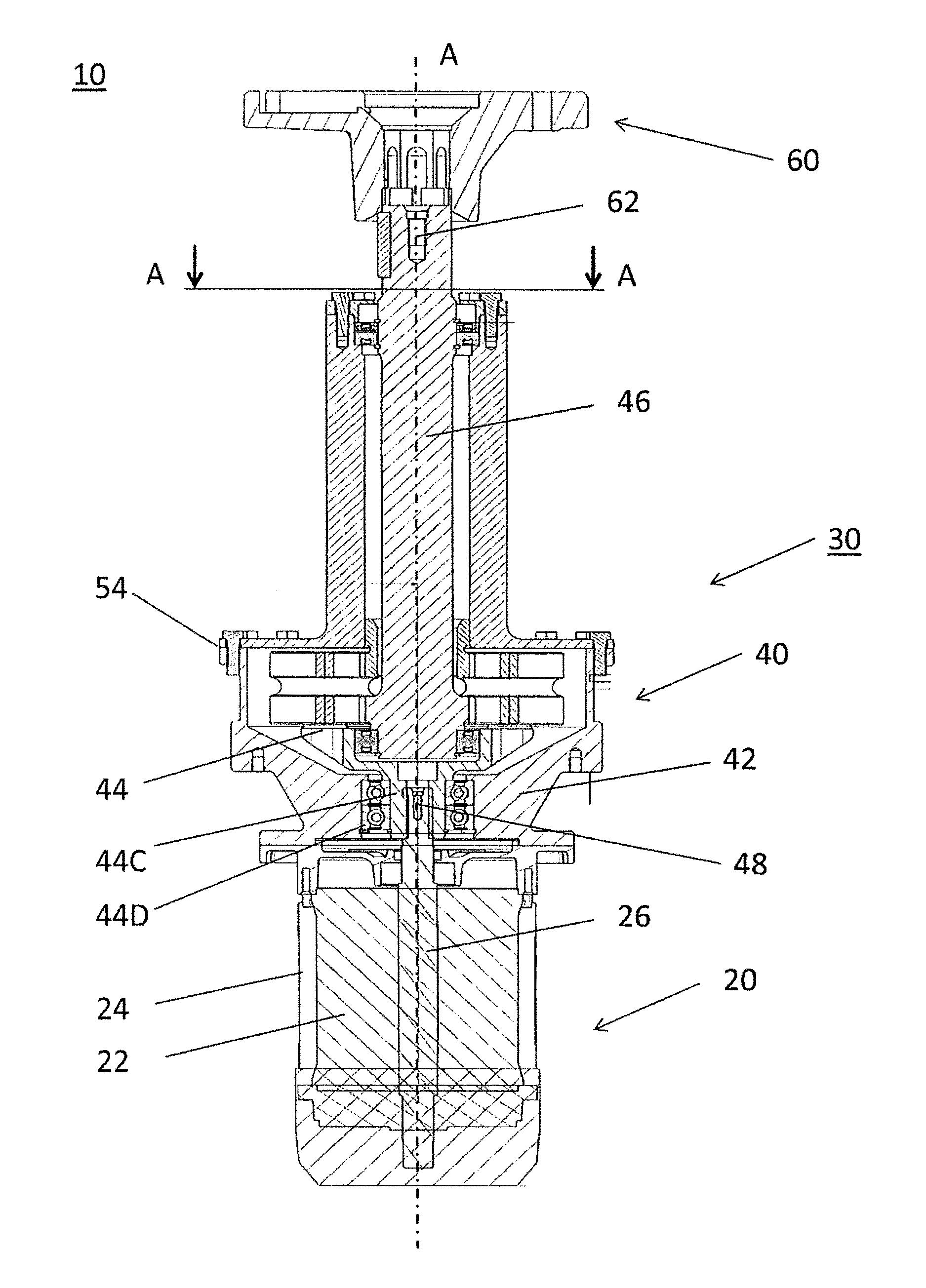

The invention provides a drive assembly for tire service machines comprising a drive motor having a rotatable output drive shaft, and a wheel support. The inventive drive assembly further comprises a gear unit having at least one gearbox, wherein the at least gear box has at least a gear box input shaft and a gear box output shaft. The wheel support is in 5 direct torque transmitting connection with the gear box output shaft, and the output drive shaft of the drive motor is in a direct torque transmitting connection with the gear box input shaft of the gear box. Furthermore, the drive assembly is adapted to provide structural support.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01M Class
- 1152 Applications Filed
- 955 Patents Issued To-Date
- 82.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
