Method for wire saw excavation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 2015
Grant Date -
Jun 25, 2015
app pub date -
Feb 27, 2015
filing date -
Dec 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

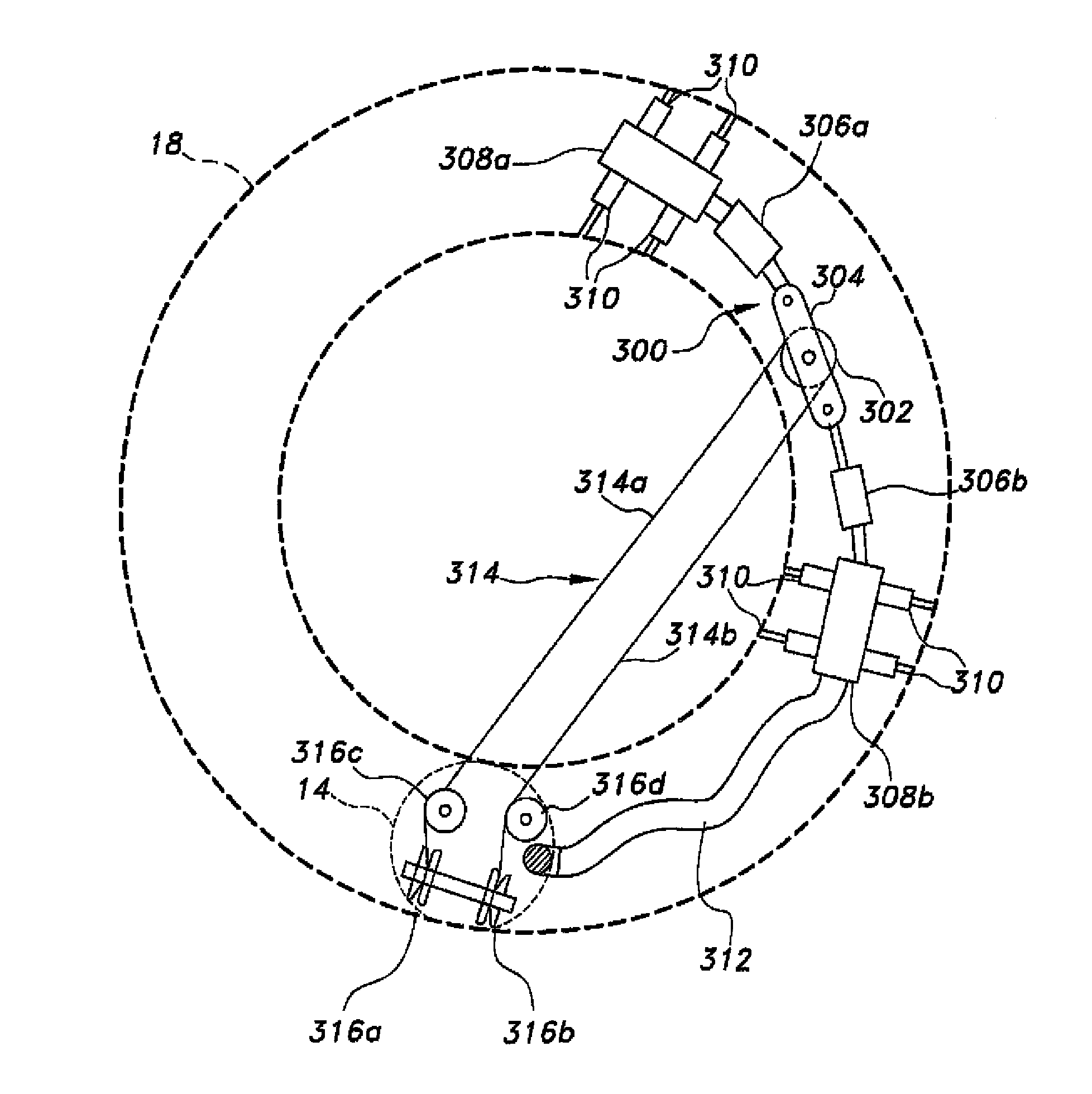

The method for wire saw excavation provides a significant savings in time, effort, and expense in the cutting of a core of material from a solid substrate such as rock or concrete. A single downhole is formed, and a robotic excavator then forms a continuous, closed loop base passage at the distal end of the downhole to define the periphery of the core to be cut. When the base passage has been completed, the robotic excavator is removed and two subsurface guide pulleys are placed in the bottom of the downhole. A wire saw is passed from a first surface pulley around the first and second subsurface pulleys and back to a second surface pulley. The surface pulleys are advanced along the predetermined periphery of the core at the same rate as the subsurface pulleys, so that the saw simultaneously cuts the periphery and the bottom of the core.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E21D Class
- 86 Applications Filed
- 67 Patents Issued To-Date
- 77.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21D Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 29, 2027 |
