POLISHING PAD, COMPOSITION FOR THE MANUFACTURE THEREOF, AND METHOD OF MAKING AND USING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 25, 2015
app pub date -
Mar 5, 2015
filing date -
May 27, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

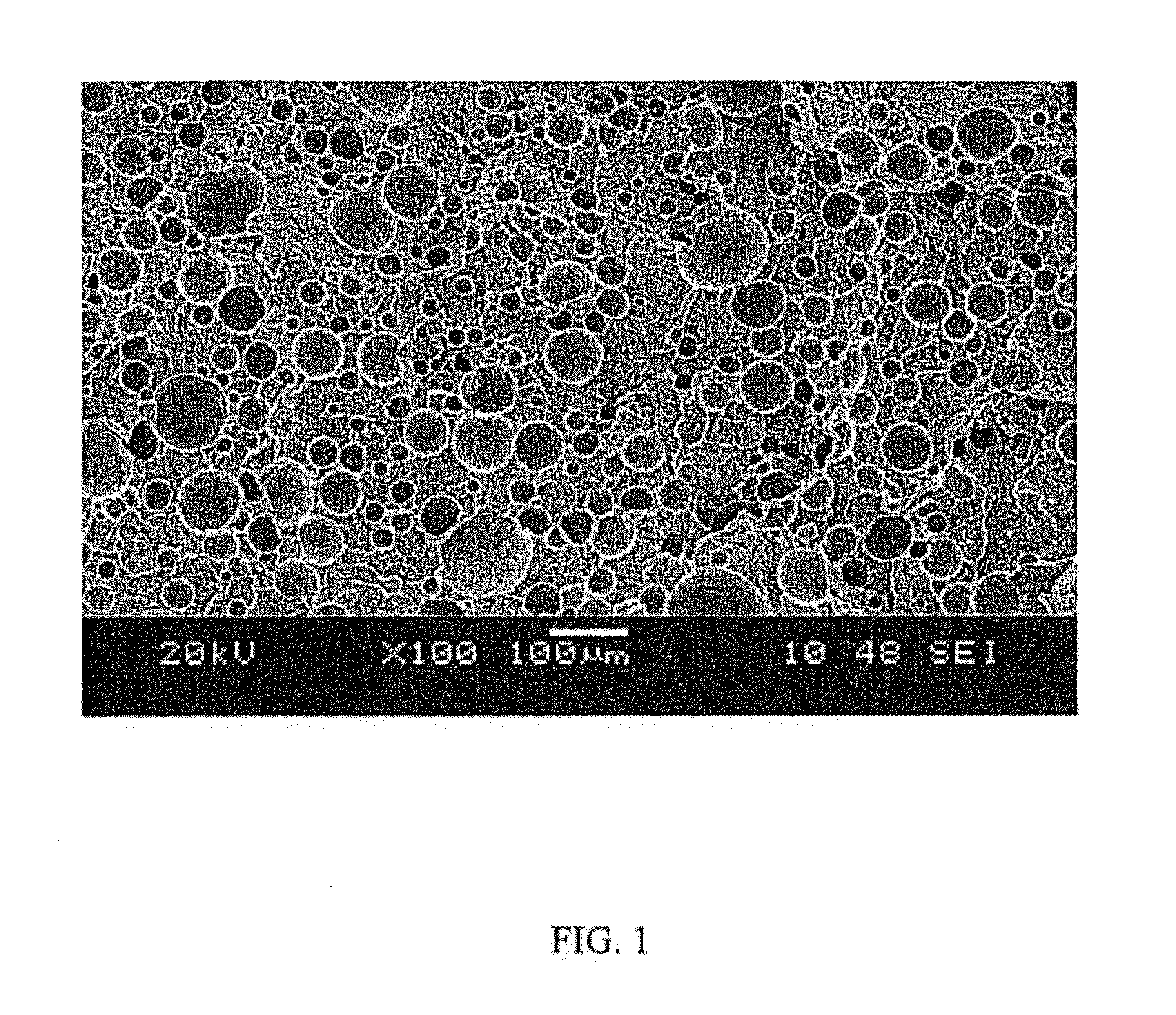

A polyurethane layer for forming a polishing pad for a semiconductor wafer is described, wherein the polyurethane layer comprises: a foamed polyurethane, wherein the polyurethane foam has a density of about 640 to about 960 kg/m3, and a plurality of cells having an average diameter of about 20 to about 200 micrometers; and particles of a hydrophobic polymer having a critical surface energy of less than 35 mN/m and having a median particle size of 3 to 100 micrometers. Polishing pads as well as methods for polishing are also described.
